| Westerschelde 02 February 2012 |
 |
 |
|
| Westerschelde 02/02/12 | Westerschelde 02/02/12 |
|
Name |

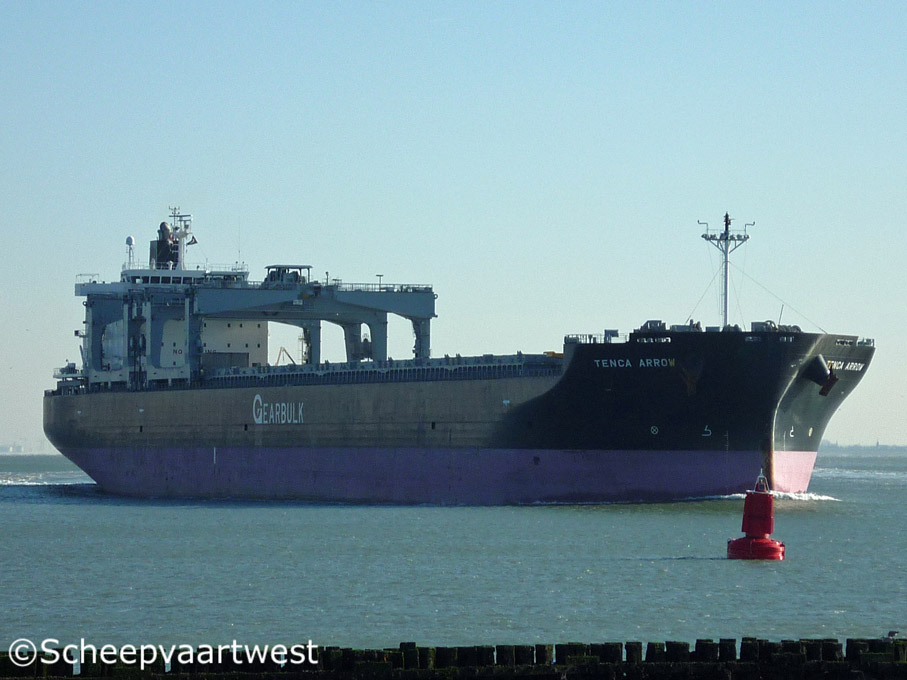

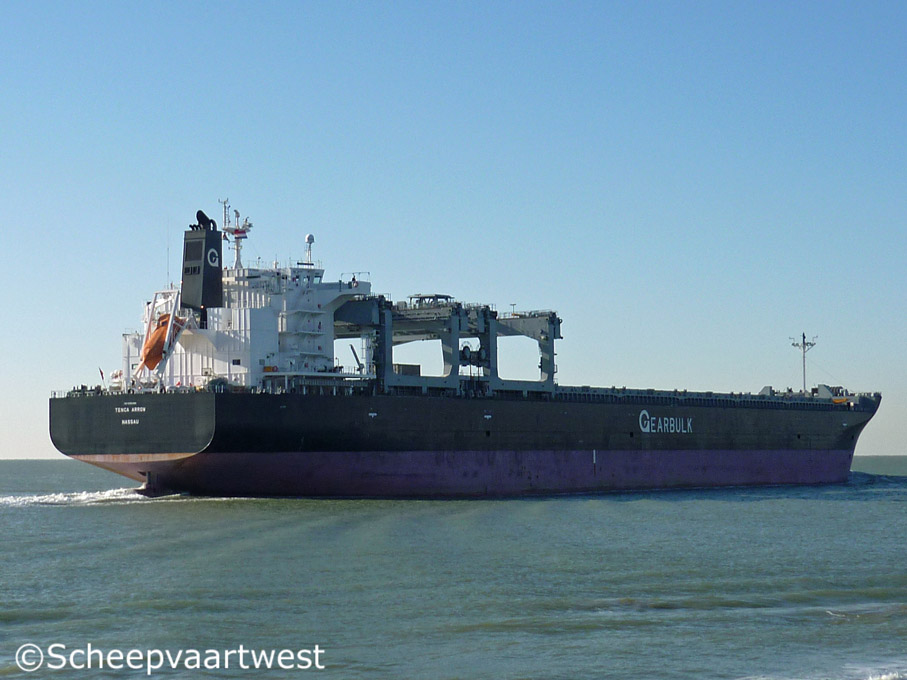

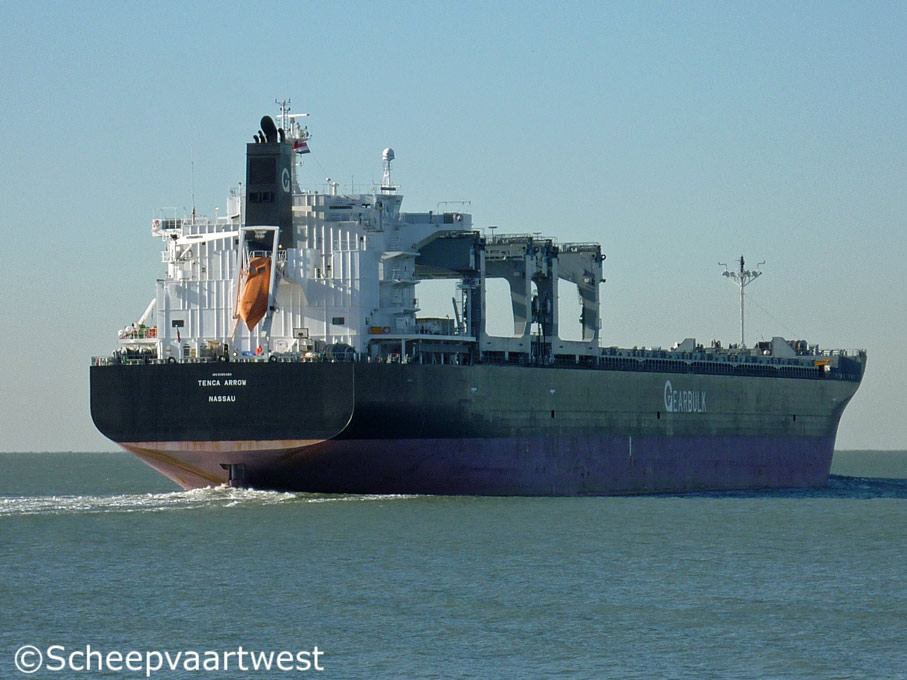

TENCA ARROW |
|
Type |
General cargo - Single deck |
|
IMO-number |
9385489 |
|
Call sign |
C6YC3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
44.684 t |
|
DWT |
72.863 t |
|
NT |
22.141 t |
|
Number of 20ft containers |
445 |
|
Length |
225,00 m overall 221,00 between perpendiculars |
|
Breadth |
32,259 m extreme |
|
Draught |
14,34 m |
|
Depth |
20,56 m |
|
Speed |
15,5 knots |
|
Built |
2009 |
|
Keel laid |
16.05.2006 |
|
Launch date |
23.07.2009 |
|
Date of completion |
26.11.2009 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10523 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W 6S60ME-C(MK8) - 2 stroke 6 cylinder diesel engine - 12.577 kW Builder: Kawasaki Heavy Industries |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
Auxiliary boiler, composite GCS-23M Builder: Aalborg Boiler Production |
|
Generators |
2x Main diesel generatorsets 8N21AL-EV each 1.300 kW 1x Diesel generatorset 6N21AL-SV - 880 kW Builder: Yanmar Co., Ltd. Amagasaki Plant |
|
Number of holds |
8 Hold 1: 12,40 x 20,64 x 16.32 m Hold 2 & 8: 21,21 x 27,40 x 20,47 m |
|
Cargo capacity |
85.086 m³ |
|
Ballast capacity |
23.057,6 m³ |
|
Anchor equipment |
Length: 687,5 m Diameter: 81 mm |
|
Cargo gear |
2x Gantry cranes - SWL 70,0 each |
|
Manager |
2011 Gearbulk Norway AS |
|
Previous manager |
2009 - 2011 Kristian Gerhard Jebsen Skipsrederi A/S |
|
Operator |
Gearbulk |
|
Registered owner |
United Sea Shipping S.A. |
