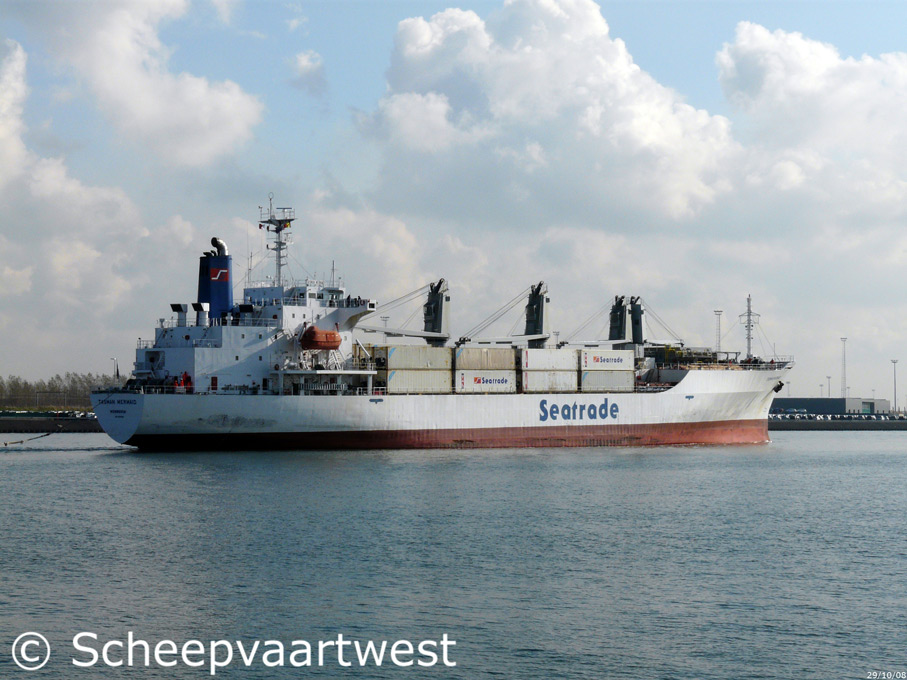

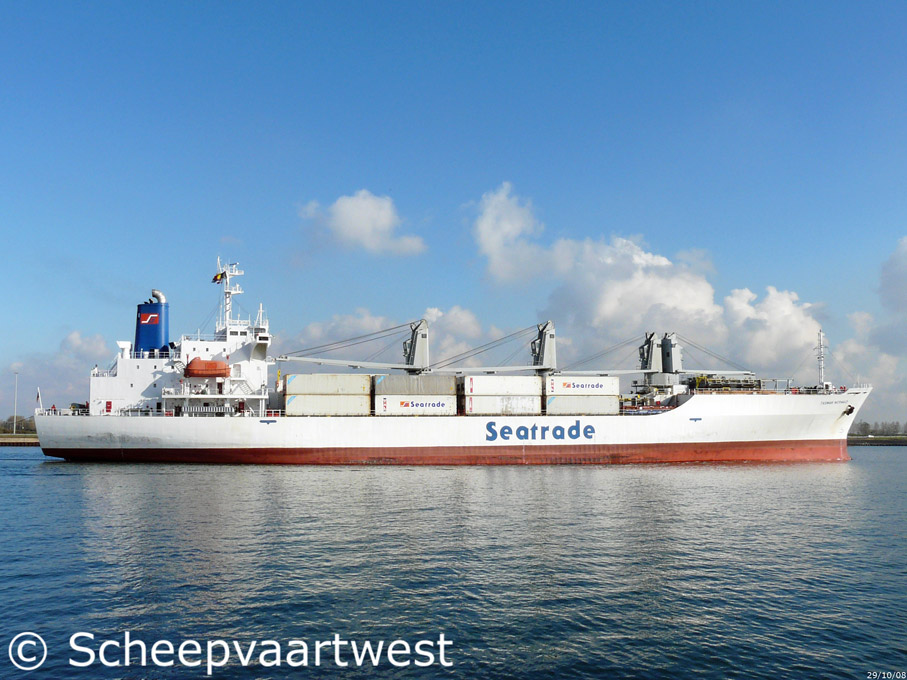

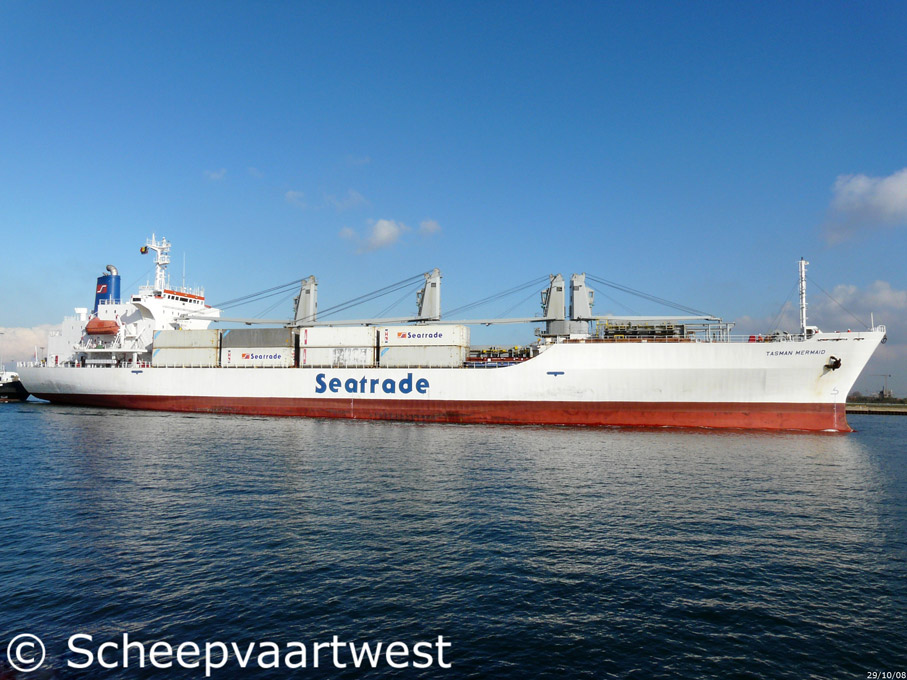

Tasman Mermaid - IMO 9045950

Name

TASMAN MERMAID

Previous names

1983-1992 Tasman Mermaid

1992-2001 Skausund

2001-2004 Antarctic Mermaid

2004 Tasman Mermaid

Type

Frozen cargo
Refrigerated cargo ship

IMO-number

9045950

Call sign

A8JI6

Flag

Liberia

Previous flags

2001 Republic of Panama

Port of registry

Monrovia

GT

9.829 t

DWT

10.457 t

NT

3.538 t

Container cap. on deck

80 TEU + 9 FEU
or 49 FEU

Reefer plugs

49 on weather decks

Length

141,80 m overall

133,00 m between perpendiculars

Breadth

22,80 m over all

Draught

Summer: 8,81 m

Freeboard

4.213 mm

Depth

13,0 m

Speed

19,5 knots

Built

1983

Date of completed

19.01.1993

Builder

Iwagi Zosen Shipbuilding Co. Ltd.
Imabari
Japan

Yard number

148

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Number of Cont. decks

4

Main engine

1x B&W 7S50MC - 2 stroke 7 cylinder 500 x 1.910 mm diesel engine - 9.170 kW / 12.460 hp at 123,0 rpm

Built: 1992

Builder: Hitachi Shipbuilding Osaka - Japan

Number of screws

1x Screw propeller solid - at 119 rpm

Boilers

1x CHM Miura 17,00 m² - 8,0 bar
1x CHR Miura 193,00 m² - 11,5 bar

Electrical installation

Power Voltage: 440 V

Lighting Voltage: 100 V

Frequency: 60 Hz

Generators

3x Diesel generatorsets each 1.000 kVA - 800 kW - 3.600 hp

Tank capacities

Bunker: 1.725 t

Fuel oil: 1.725 m³

Cargo handling

2x Cranes - SWL 10 t each
2x Cranes - SWL 30 t each

Cargo

Cargo holds: 20 (tot 15.295 m³)

Hatchways: 4x 7,60 x 7,10 m

Refrigerating installations

Temperature range: -30°C

Insulation material: Glass wool and Polyurethane

Insulation lining: Plywood

Compressors: 3

Refrigerant type: R22

Method of cooling: Brine

Means for distribution: Air Coolers

Floorspace

6.067,82 m²

Ventilation / Air changes

Vertical 90

Crew

20

Manager

Triton Schiffahrt
Leer
Germany

Operator

Seatrade

Groeningen
The Netherlands

Owner

Tasman Mermaid Schifffahrtsgesellschaft MBH & CO KG

Renamed

2018 Ocean Star 88

Dominica - Cal sign: J7DV4
