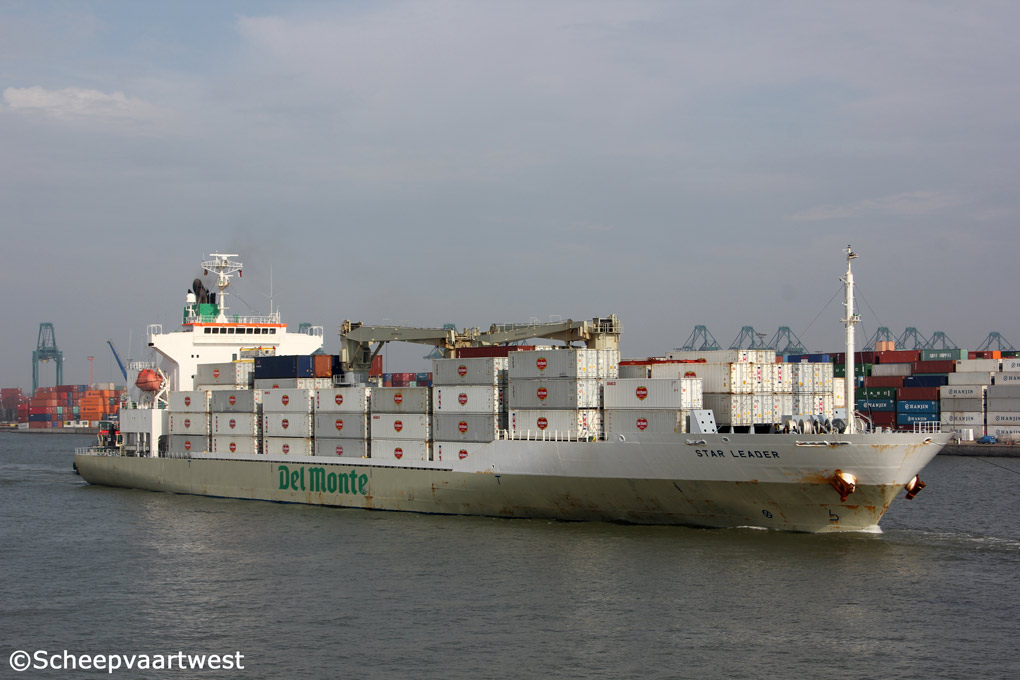

Star Leader 03
Antwerpen 07 March 2014



Star Leader 04   Star Leader 02   Star Leader 01   Star Leader 06
07/03/14   16/08/12   16/08/12   15/11/13



Name

STAR LEADER

Type

Reefer cargo carrier - Designed for carriage of containers

IMO-number

9517939

Call sign

9V9350

Flag

Republic of Singapore

Port of registry

Singapore

GT

14.022 t

DWT

12.944 t

NT

6.724 t

Number of 20ft containers

436

Length

162,50 m overall

150,00 m between perpendiculars

Breadth

26,00 m

Draught

9,72 m

Moulded L x B x D

150,00 x 26,00 x 14,10 m

Registered L x B x D

151,49 x 26,00 x 14,10 m

Freeboard

4.421 mm

Depth

14,10 m moulded

Speed

22,0 knots

Built

2010

Keel laid

06.12.2008

Launch date

15.02.2010

Date of completion

26.04.2010

Builder

Shikoku Dockyard Co., Ltd.

Yard number

1053

Hull material

Steel

Main engine

1x MAN-B&W 7S60MC-C - 2 Stroke single acting 7 cylinder 600 x 2.400 mm diesel engine - 15.820 kW / 21.509 hp at 105,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propellers

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 3,53 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

5x Diesel generatorsets - 6.090 kVA

Insulated cargo capacity

Bales: 17.429 m³

Min. temperature

-30°C

Tank capacities

Fuel oil: 2.604 m³

Fresh water: 414 m³

Water ballast: 3.536 m³

Lifting equipment

2x Cranes of a lifting capacity of 40,0 t each

2x Cranes of 8,0 t each

Manager

Argo Navis Pte. Ltd.

Operator

Del Monte Fresh Produce Company
Coral Gables, FL
United States of America

Registered owner

Grace Ocean Private Limited

Latest data adjustment

12 February 2016
