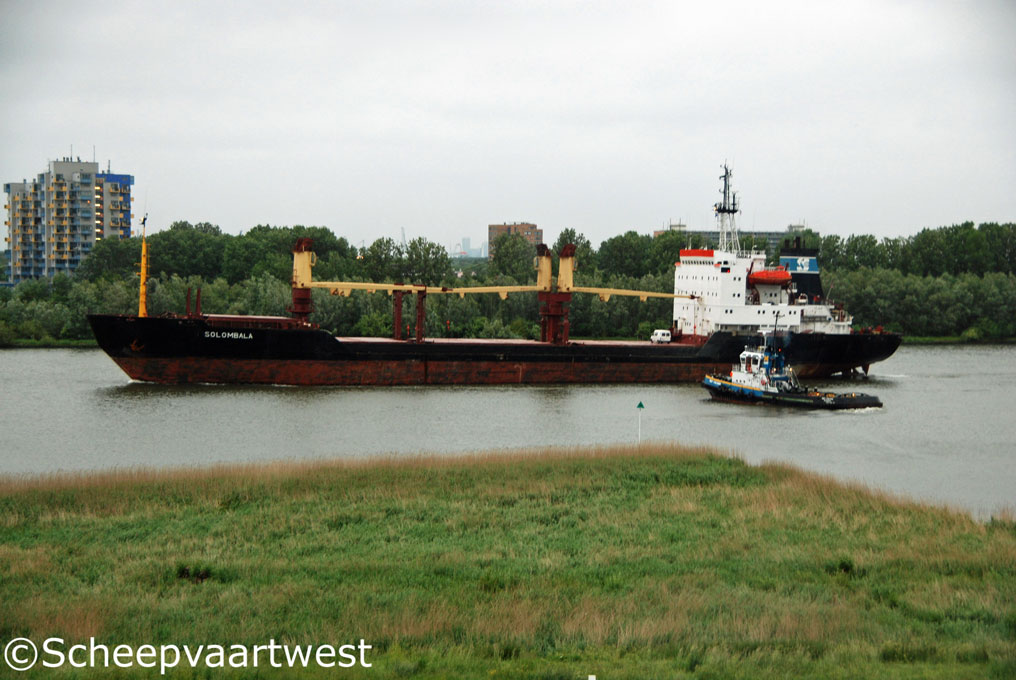

Solombala - IMO 8603391

Name

SOLOMBALA

Previous names

1990 - 1997 Kapitan Ponomarev

1997 - 1999 Olma

1999 - 2002 Nord

2002 - 2011 Solombala

Type

General cargo - Single deck

Sub type

Wood logs, container facility, coal, grain

IMO-number

8603391

Call sign

A8PJ9

Flag

Liberia

Port of registry

Monrovia

GT

6.395 t

DWT

Summer: 7.075 t

Winter: 6.797 t

NT

2.864 t

Number of 20ft containers

302

Displacement

11.249 t

Length

131,60 m overall

122,00 m between perpendiculars

Breadth

19,30 m moulded

Draught

Summer: 7,00 m

Winter: 6,854 m

Depth

8,80 m

Speed

14,9 knots

Built

1990

Launch date

31.03.89

Date of completion

07.02.1990

Builder

Stocznia Gdansk Shipbuilding
Gdansk
Poland

Yard number

b352/06

Hull type

Double hull

Bulkheads

8

Continuous decks

1

Main engine

1x MAN & B &W 7L45GBE diesel engine - 4.690 kW / 6.370 bhp at max. 180,0 rpm, service 175,0 rpm

Built: 1988

Propeller

1x Fixed pitched propeller with detachable blades

Diesel generators

3x 6 AL20D diesel generatorsets each 500 kW

Builder Poznan, Poland

Holds dimensions

Hold 1: 16,10 x 15,30 | 4,95 x 9,30 m
Hold 2: 17,50 x 15,30 x 8,60 m
Hold 3: 24,50 x 15,30 x 8,60 m
Hold 4: 23,80 x 15,30 x 8,60 m

Cargo holds capacity

4 - Box types

1x Bale: 1.429,4 m³ / Grain: 1.676,3 m³

1x Bale: 2.018 m³ / Grain: 2.091,7 m³

1x Bale: 2.993,1 m³ / Grain: 3.092,5 m³

1x Bale: 2.916,3 m³/ Grain 3.001,0 m³

Total: Bale: 9.356,8 m³ / Grain: 9.861,5 m³

Hatches dimension

4

Hatch 1: 12,58 x 10,28 m
Hatch 2: 12,58 x 15,28 m
Hatch 3: 18,88 x 15,28 m
Hatch 4: 18,88 x 15,28 m

Type of hatch covers

Hydraulic, McGregor

Tank capacities

Fuel oil: 810 t

Diesel oil: 99 t

Fresh water: 215 t

Water ballast: 2.378 t

Lifting equipment

4x Cranes Towimor F2x12520E3S1- SWL 12,5 t each

Drive system: Electro hydraulic

SWL: 10 t at 20,00 m

Officers and crew

16

Manager

OY Solchart Management AB
Helsinki
Finland

Owner

Solombala Shipping Co., Ltd.

Renamed

2011 Tobol
