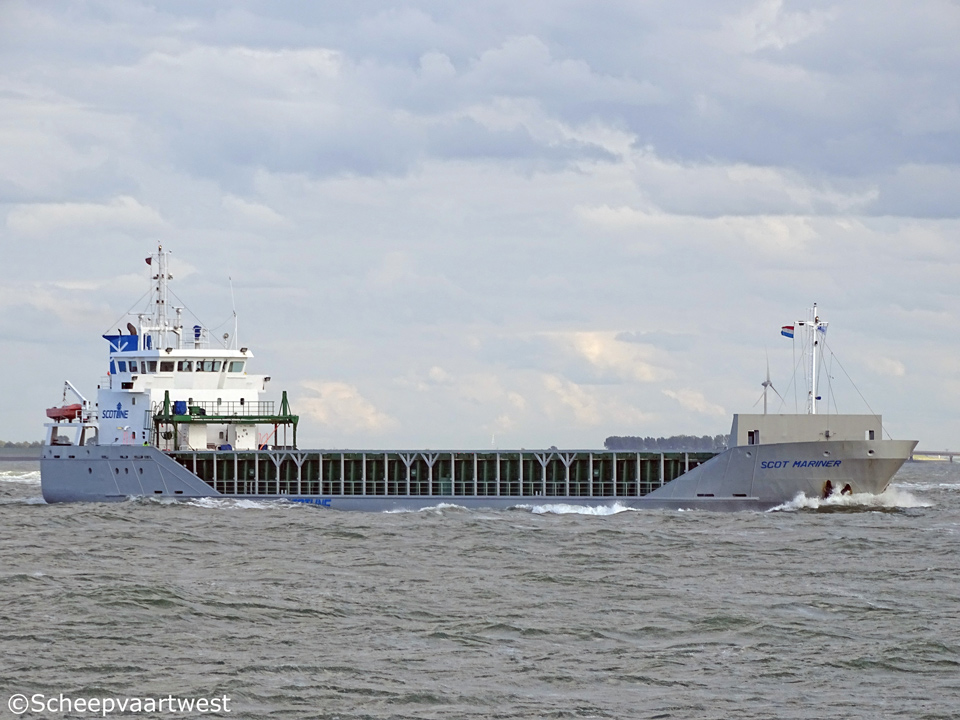

Scot Mariner 02
Westerschelde 04 August 2017

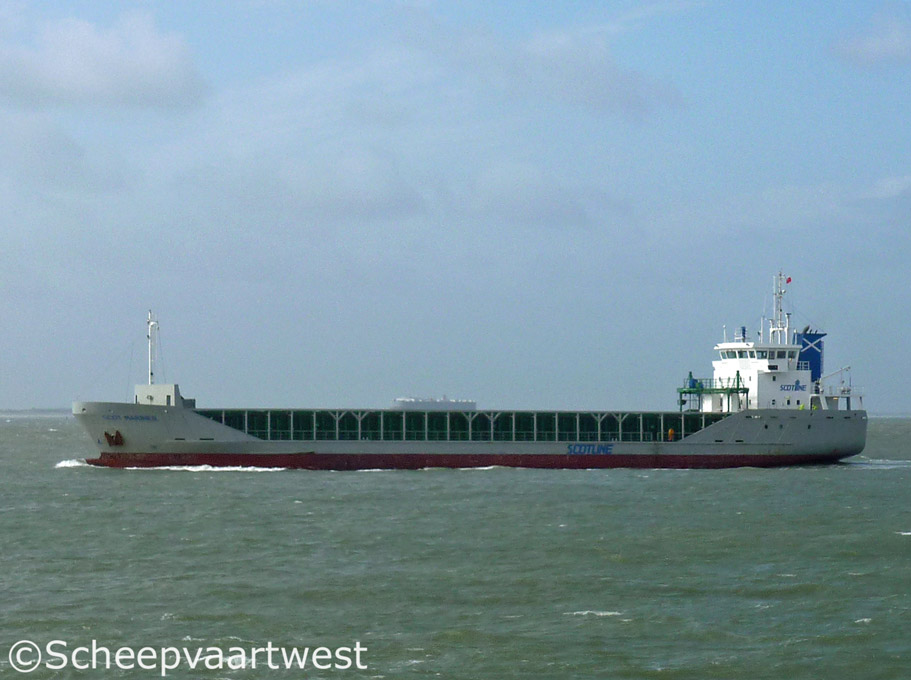

Scot Mariner 01
Westerschelde13/09/11



Name

SCOT MARINER

Type

General cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

Box-shaped - Singledecker

IMO-number

9243916

Call sign

ZNQQ9

Flag

United Kingdom

Port of registry

Rochester

GT

2.594 t

DWT

3.113 t

DWCC

3.150 t

NT

1.114 t

Light weight

1.323 t

Number of 20ft containers

On deck: 60

In hold: 102

Total: 162

Number of 40ft containers

On deck: 20

In hold: 48

Total: 68

Length

89,98 m overall

84,99 m registered

Breadth

13,75 m registered

Draught

Max. summer: 4,93 m

Air draft

21,90 m ballast

Depth

6,25 m moulded

Speed

13,5 knots

Built

2001

Keel laid

26.06.1998

Launch date

01.06.1999

Date of completion

28.09.2001

Builder

Tille Scheepsbouw Kootstertille B.V.
Balkwar 10
9288 ZG Kootstertille
The Netherlands

Yard number

339

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight Bulkheads

4

Continuous decks

1

Main engine

1x Wärtsilä 6L26 A - 4 stroke single acting 6 cylinder 260 x 320 mm diesel engine - 1.950 kW at 1.000 rpm

Year of manufacture: 2001

Manufacturer: Wärtsilä Diesel AB
Trollhättan
Sweden

Gearbox

1x Reduction gear Flender Navilus GRS530A-P

Propeller

1x Rolls Royce controllable pitch propeller - aft at 224 rpm

Diameter: 2.800 mm - 4 blades

Boilers

1x Thermal oil heater, oil fired - 12,0 bar

Heating Surface: 31,1 m²

1x Thermal oil heater, exhaust gas heated - 12,0 bar

Heating Surface: 43,1 m²

Manufacturer: Göteborgs Energy Systems AB
Aangpannegatan 15a
417 05 Göteborg
Sweden

Electric installations

1x Plant 380/220 V - 183 kVA

1x Plant 380/220 V - 183 kVA

1x Plant 380 V - 530 kVA

Shaft generator

1x Newage Stamford HCM634G - 530 kVA / 348 kW

Diesel generators

2x Cummins 6CTA8.3DM - 6 cylinder 114 x 135 mm diesel engine 147 kW at 1.500 rpm coupled with 2 Newage Stamford HCM434C generators each 183 kVA

Built: 2001

Manufacturer: Cummins Engine Co. Ltd.

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Promac FP400-1050 - 300 KW at 660 rpm, forward

Number of holds

1

Dimension: 61,88/ x 10,80 x 790 m

Cargo hold capacity

Grain & Bales: 4.870 m³ / 179.834 ft³

Timber fitted capacity

5.000 m³

Hold ventilation

3 Air changes/h

Number of hatch

1

Dimension: 61,88 x 10,80 m

Strength

Hatchcover: 1,6 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Fuel oil: 290 m³

Water ballast: 1.557 m³

Potable Water: 34 m³

Lubricating oil: 13 m³

Dirty Oil: 6 m³

Sewage: 14 m³

Sludge: 22 m³

Anchor equipment

3x Anchors weight each1.920 kg

Chain length: 440.00 m

Lifting equipment

1x Deck crane Gantry Crane Coops & Nieborg- SWL 14,0 t

Manager

Intrada Ships Management Ltd.
Riverside Estate, Sir Thomas Longley Rd.
Rochester ME2 4DP
United Kingdom

Operator

Scotline
75, Main Road Gidea Park
Romford , Essex RM2 5EL
United Kingdom

Owner

Scot Mariner Shipping Ltd.
41, Culduthel Road
Inverness , IV2 4AT
United Kingdom

Latest data adjustment

25 October 2017
