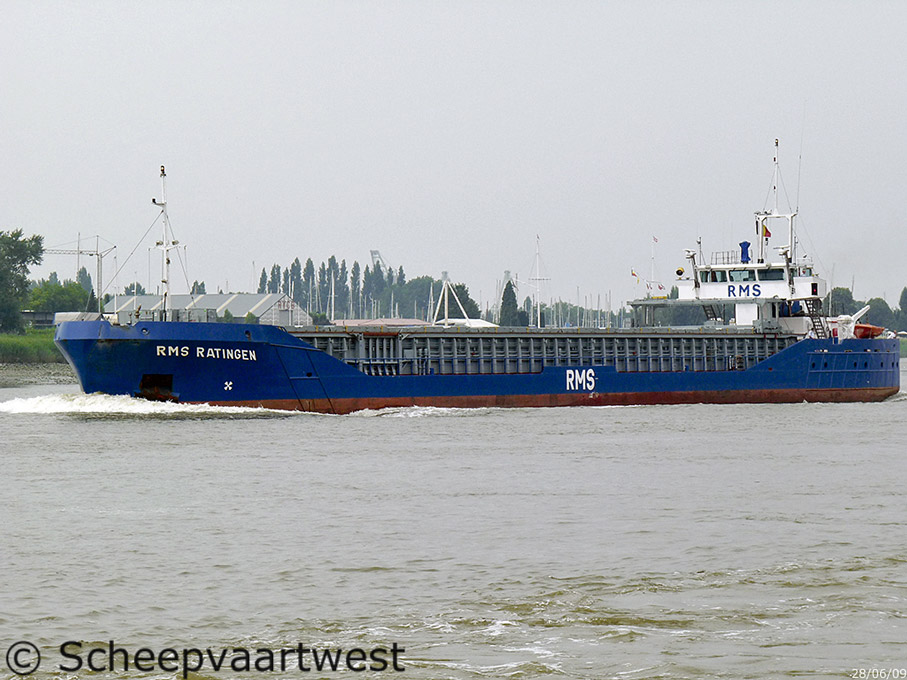

RMS Ratingen 02
Antwerpen 28 June 2009

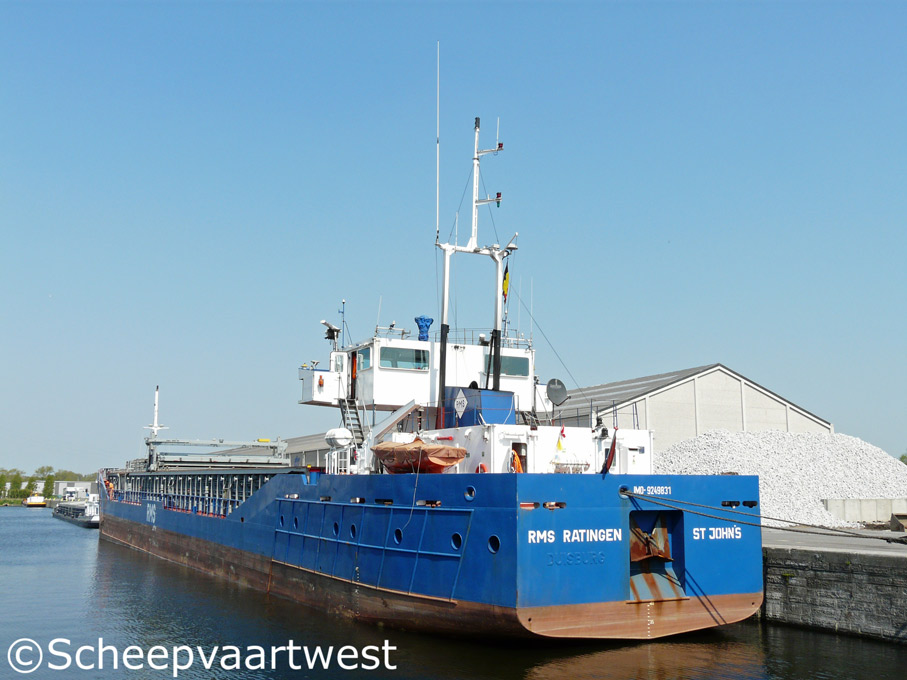

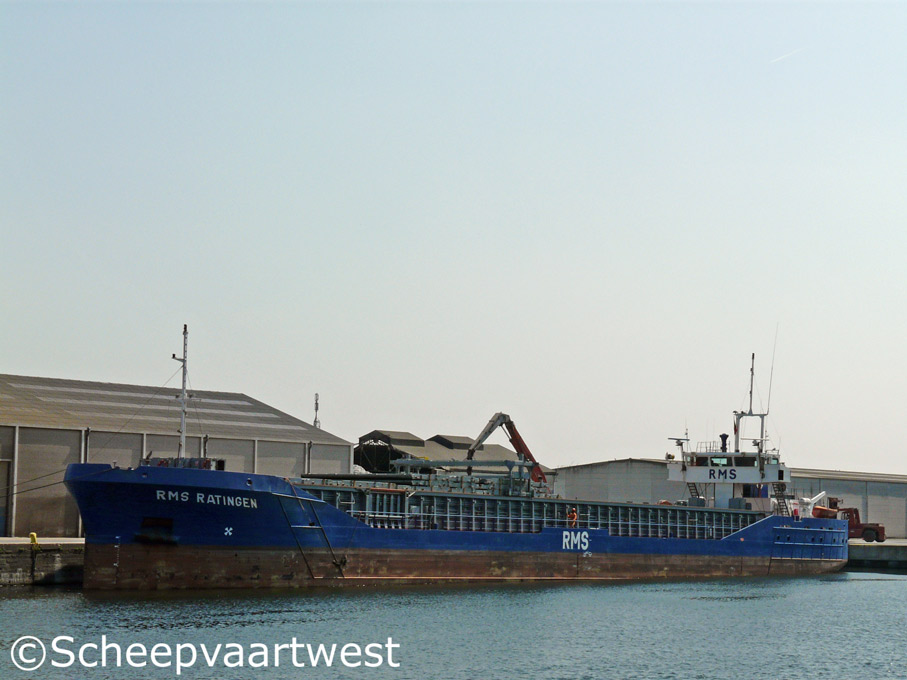

RMS Ratingen 07   RMS Ratingen 04
Brugge 19/04/11   19/04/11



Name

RMS RATINGEN

Type

General cargo ship - Equipped for carriage of containers, strengthened for heavy cargo

Sea-Rivergoing Vessel

IMO-number

9249831

Call sign

V2DK

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

1.898 t

DWT

2.680 t

DWCC

Summer: 2530 t with draft 4,06 m

Winter: 2470 t with draft 4,02 m

NT

997 t

Number of 20ft containers

84

Hold: 60

Deck: 24

Length

88,00 m overall

84,98 m between perpendiculars

Breadth

11,41 m registered

Draught

4,092 m

Air draft

6,25 m

Freeboard

Summer: 1.315 mm

Depth

5,40 m moulded

Speed

11,0 knots

Built

2002

Keel laid

30.06.2001

Launch date

05.01.2002

Date of completion

05.05.2002

Builder casco

Daewoo-Mangalia Heavy Industries

Mangalia

Romania

Yard number: 1040

Builder completion

Bodewes Scheepswerf "Volharding" Foxhol B.V.
Scheepswervenweg 14
9607 PX Hoogezand
Netherlands

Yard number: 425

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight compartments

5

Watertight bulkheads

4

Continuous decks

1

Main engine

1x Deutz KHD SBV 6 M 628 – 4 stroke single acting 6 cylinder 240 x 280 mm internal combustion engine – 1.234 kW at 1.000 rpm

Year of manufacture: 2001

Builder: Deutz Group Köln - Germany

Propeller

1x Screw propeller solid at 268 rpm - aft

Electric installations

1x 400 V - 240 kVA

1x 400 V – 52,3 kVA

Generators

2x Main diesel generatorsets each 120 kVA

Emergency generator

1x Diesel generatorset 52,3 kVA

Compressed air receivers

2x Receivers each125 litres - 33 bar

Bow thruster

1x 275 kW, forward

Number of cargo holds

1

60,95 x 9,00 x 6,88 m

Cargo capacity

3.817 m³ – 133.400 ft³

Hatches

Steel pontoon covers 60,95 x 9,00 m

Deck strength

Tanktop: 15,0 t per m²

Hatch cover: 1,5 t per m²

Tank capacities

Ballast water: 1.523 t

Fresh water: 43 t

Gas oil: 120 m³

Lifting equipment

1x Gantry crane

Anchor equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Crew size

8

Manager

Rhein- Maas- und See Schiffahrtskontor GmbH
Krausstr. 1a
47119 Duisburg
Federal Republic of Germany

Operator

RMS

Owner

BWK Schiffinvest GmbH & Co. KG MS "RMS RATINGEN"
Krausstr. 1a
47119 Duisburg
Federal Republic of Germany
