| Antwerpen 03 July 2012 |
|
Name |

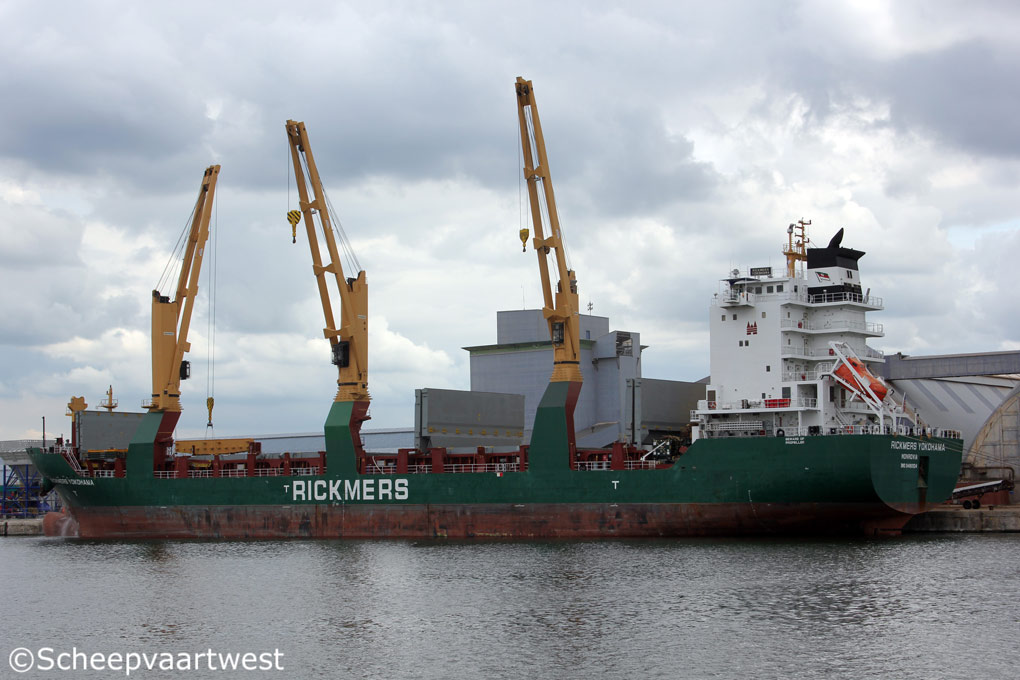

RICKMERS YOKOHAMA |
|
Type |
Multi-Purpose dry cargo ship - Strengthened for heavy cargo - Box shaped |
|
IMO-number |
9480124 |
|
Call sign |
A8YA7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
12.772 t |
|
DWT |
Summer: 17.370 t |
|
NT |
5.500 t |
|
Number of 20ft containers |
On deck: 504 Under deck: 390 Total 894 |
|
Container capacity 14t |
630 |
|
Reefer capacity |
60 |
|
Length |
144,00 m overall 134,00 m between perpendiculars |
|
Breadth |
22,80 m moulded |
|
Draft |
8,80 m |
|
Depth weather deck |
9,85 m |
|
Speed |
Max.: 16,3 nots |
|
Built |
2011 |
|
Date of completion |
03.2011 |
|
Builder |
Xinshun Shipyard |
|
Yard number |
XS0803 |
|
Hull material |
Steel |
|
Main engine |
1x Wartsila NSD 6RTA48T-B - 7 cylinder diesel engine - 8.730 kW Builder: Hudong Heavy Machinery Co.Ltd. (Sulzer) |
|
Propellers |
1 |
|
Generators |
3x Main diesel generatorsets each 800 kW |
|
Emergency generator |
1x Diesel generatorset 125 kW |
|
Bow thruster |
1x 700 kW |
|
Number of holds |
3 Hold 1: 20,50 x 13,21 m Hold 2: 38,80 x 18,60 m Hold 3: 26,20 x 18,60 m |
|
Cargo capacity |
Grain: 19.000 m³ |
|
Type of hatch covers |
MacGregor hydraulic folding type |
|
Load distribution |
Tank top: 20 t/m² Hatch cover: 2,0 t/m² Tweendeck: 3,5 t/m² |
|
Ventilation |
30 changes per hour |
|
Cargo handling gear |
MacGregor: |
|
Manager |
Lubeca Marine (Germany) GmbH & Co. KG |
|
Operator |
Rickmers-Linie GmhB & Cie. KG Neumühlen 19 |
|
Owner |
Lubeca Marine (Germany) GmbH & Co. KG |
