| Antwerpen 05 April 2013 |
 |
 |
 |
||

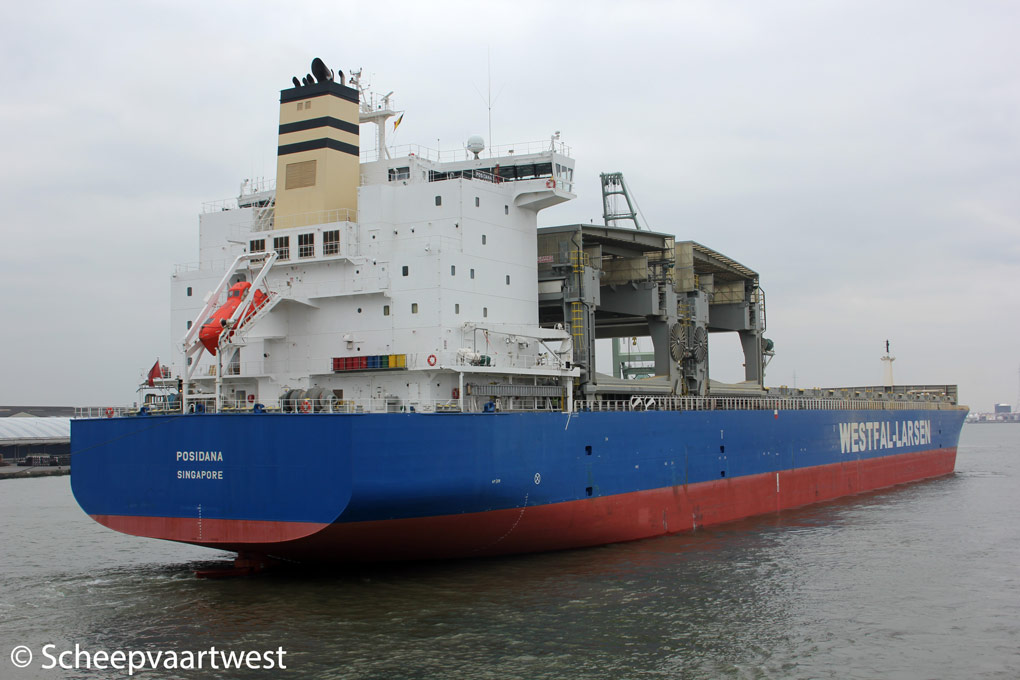

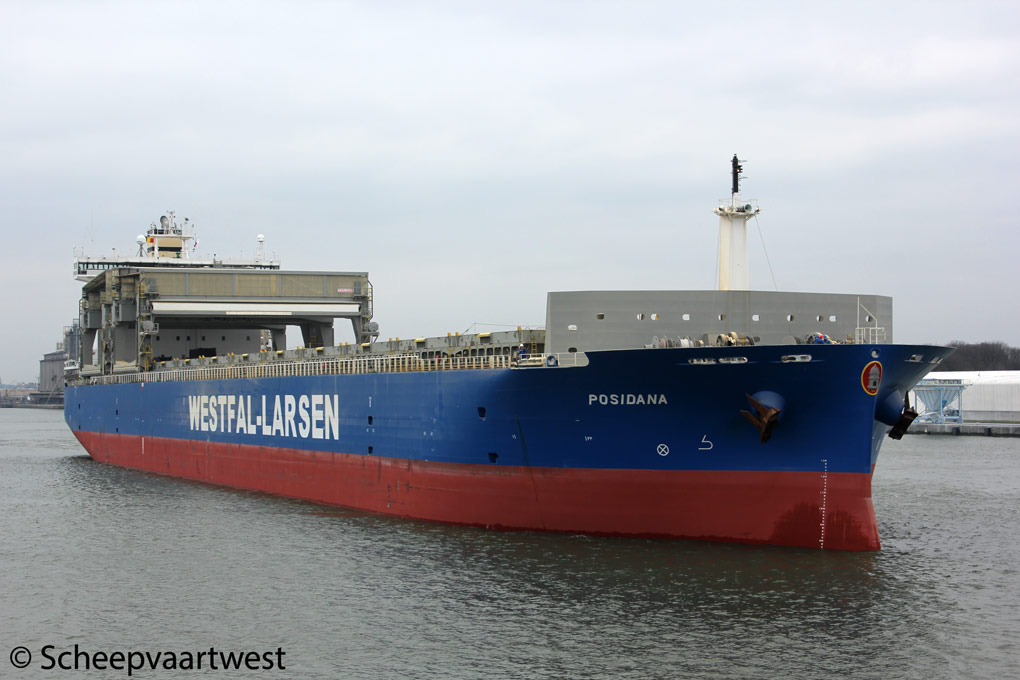

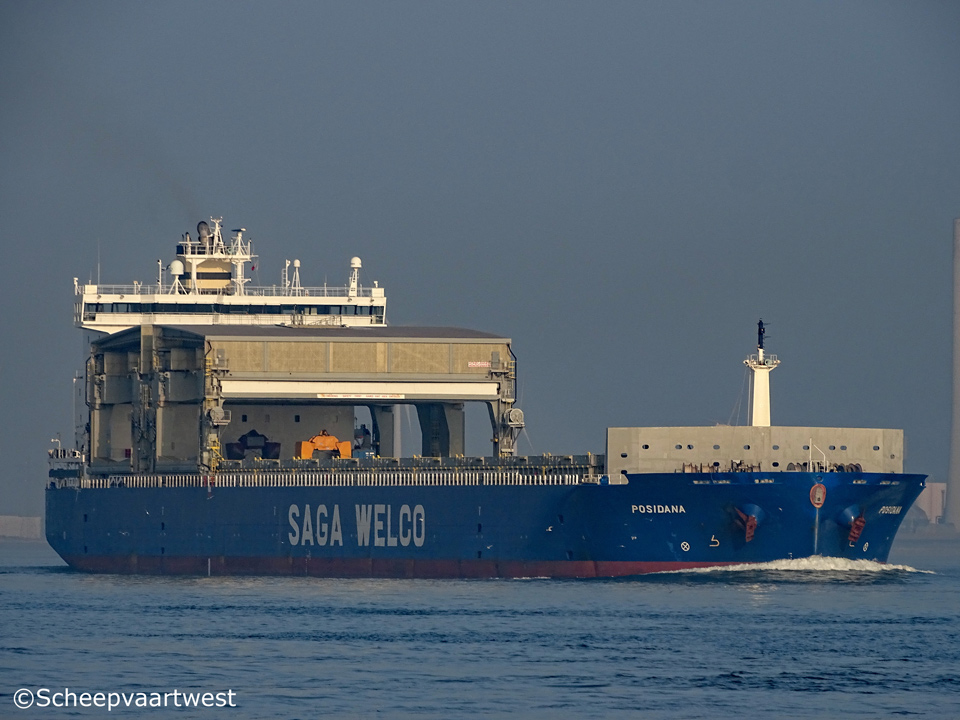

| Antwerpen 05/04/13 | Westerschelde 07/06/14 | Westerschelde 03/04/17 |
|
Name |
POSIDANA |
|
Type |
General cargo - Container ship Open hatch cargo ship - Box-shapped |
|
IMO-number |
9371086 |
|
Call sign |
9VBM6 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
39.258 t |
|
DWT |
54.696 t |
|
NT |
16.079 t |
|
Number of 20ft containers |
In hold: 1.670 On Hatch cover: 836 Total: 2.506 |
|
Length |
212,50 m overall 207,50 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
12,33 m |
|
Air draft |
47,00 m |
|
Depth |
19,00 m |
|
Speed |
15,5 Knots at full load |
|
Built |
2008 |
|
Keel laid |
17.11.2005 |
|
Launch date |
22.08.2008 |
|
Date of completion |
24.10.2008 |
|
Builder |
Oshima Shipbuilding Co., Ltd. 1605-1 Oshima-cho |
|
Yard number |
10509 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x KHI MAN B&W 6S60MC Kawasaki- 2 stroke single acting 6 cylinder diesel engine - 12.268 kW / 15.010 bhp at 105,0 rpm |
|
Propellers |
1x Nakashima propeller 5 blades - diameter 6,200 mm |
|
Boilers |
1x Auxiliary boiler, composite OEVC2-170/135-22 - 6,0 bar Builder: Osaka Boiler |
|
Generators |
3x Man B&W Holeby type6L28/32H - 4 stroke 6 cylinder diesel engine output 1.263 kW coupled with 3 generators HFC5 636-14K output 1.199 kW 450 Volt 60 Hz |
|
Emergence generator |
1x Diesel generatorset 120 kVA Builder: Mitsui Zosen Machinery & Service Co. |
|
Bow thruster |
2.400 bhp |
|
Number of holds |
12 Box-shaped |
|
Hold capacity |
Bales: Hold 1: 4.852 m³ / 171.347 ft³ Hold 2: 6.332 m³ / 223.613 ft³ Hold 3: 6.491 m³ / 229,228 ft³ Hold 4: 6.489 m³ / 229.157 ft³ Hold 5: 6.491 m³ / 229.228 ft³ Hold 6: 6.491 m³ / 229.228 ft³ Hold 7: 6.491 m³ / 229.228 ft³ Hold 8: 6.491 m³ / 229.228 ft³ Hold 9: 6.489 m³ / 229.157 ft³ Hold 10: 6.491 m³ / 229,228 ft³ Hold 11: 6.014 m³ / 212.383 ft³ Hold 12: 2.705 m³ / 95.526 ft³ Total: 71.827 m³ / 2.536.549 ft³ |
|
Ballast capacity |
17.398,10 m³ |
|
Anchor equipment |
Length: 660 m Diameter: 78 mm |
|
Cargo gear |
2x Travelling Gantry cranes with water protection each SWL 68,0 t |
|
Accommodation |
30 persons |
|
Manager |
Masterbulk Pte., Ltd. |
|
Owner |
Westfal-Larsen Shipping |
|
Registered owner |
Masterbulk Pte., Ltd. |
|
Latest data adjustment |
25 August 2017 |
