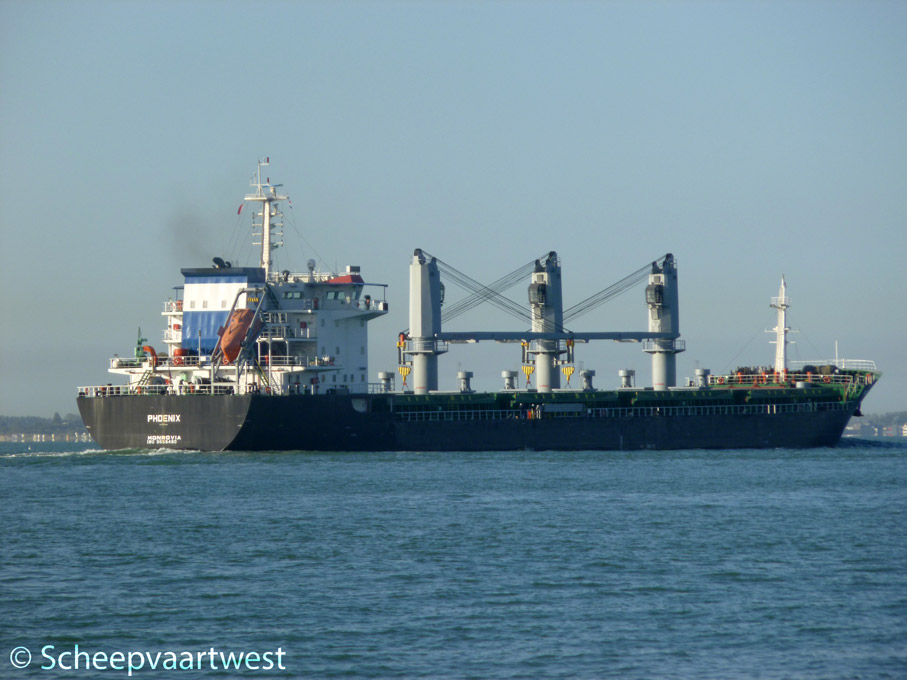

Phoenix 01
Westerschelde 10 October 2012



Name

PHOENIX

Previous names

2010 - 08.2011 Fortune Eight

Type

General dry cargo - Box-shaped, double-skinned open hatch single-decker

IMO-number

9558490

Call sign

D5AA4

Flag

Liberia

Port of registry

Monrovia

GT

11.927 t

DWT

Summer: 16.800 t

NT

5.507 t

Length

147,55 m overall

Breadth

23,00 m

Draught

8,25 m

Depth

11,80 m moulded

Speed

12,0 knots

Built

2010

Builder

Chengzhou Shipbuilding Industry
Linhai
China

Hull material

Steel

Main engine

1x Hyundai Himsen 9H32/40P - 4.320 kW

Propellers

1

Number of holds

4

Hold 1: 24,60 x 6,60 - 17,60 x 12,50 m

Hold 2: 25,90 x 17,60 x 12,50 m

Hold 3: 25,90 x 17,60 x 12,50 m

Hold 4: 26,65 x 17,60 - 11,80 x 12,50 m

Hold capacity

Hold 1: 180.139 ft³

Hold 2: 194.503 ft³

Hold 3: 194.503 ft³

Hold 4: 195.057 ft³

Total: 764.202 ft³ / 21.640 m³

Number of hatches

4

Hatch 1, 2, 3, 4: 19,44 x 17,60 m

Hatch covers type

McGregor folding type

Tanktop strength

13,0 t/m²

Cargo hold ventilation

6 air changes per hour

Tank capacities

Fuel oil: 505 m³

Gas oil: 95 m³

Cargo gear

3x Cranes - SWL 25,0 t each

Manager

LCSC
Floor 9, ul Industrialna 3
8000 Bourgas
Bulgaria

Owner

LCSC
Floor 9, ul Industrialna 3
8000 Bourgas
Bulgaria

Last update

03.04.2013
