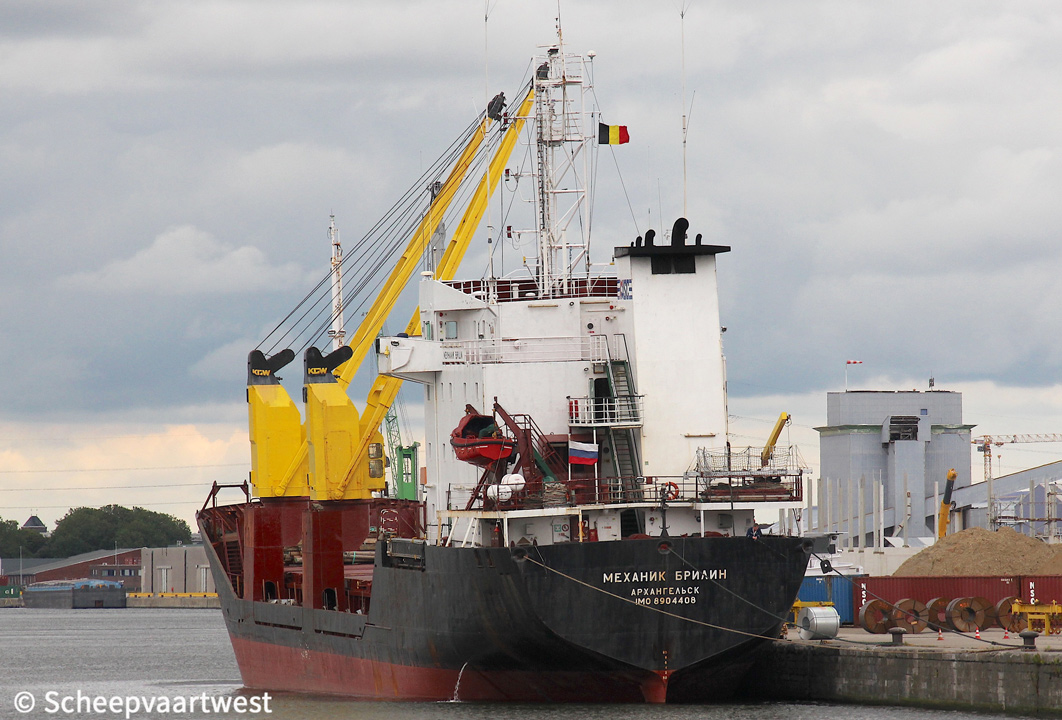

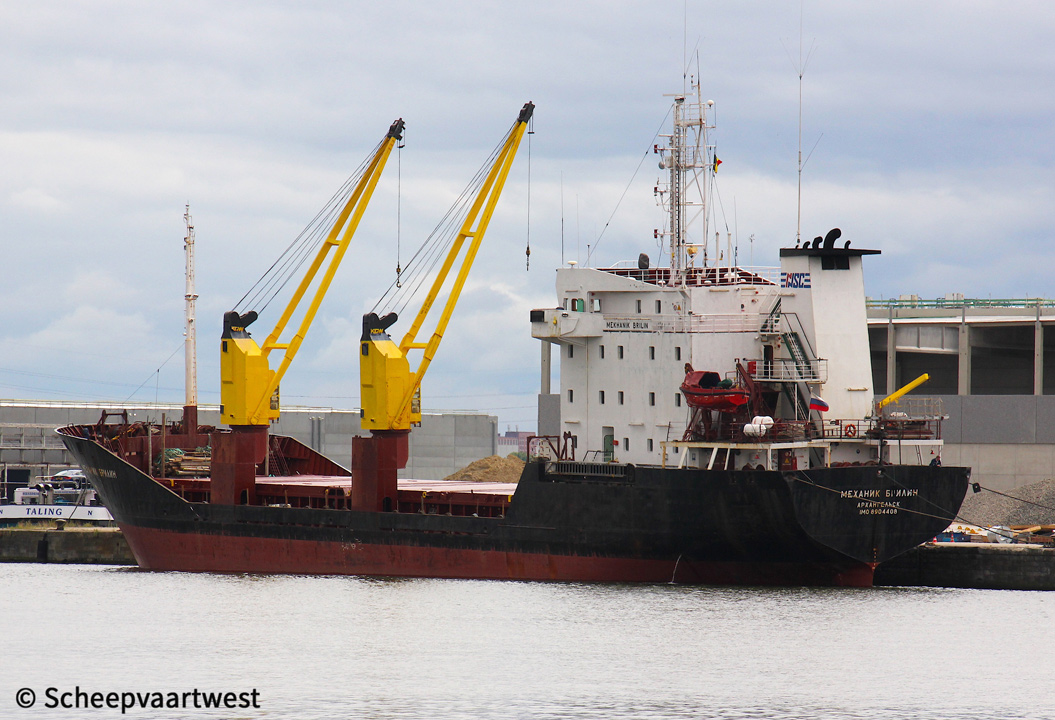

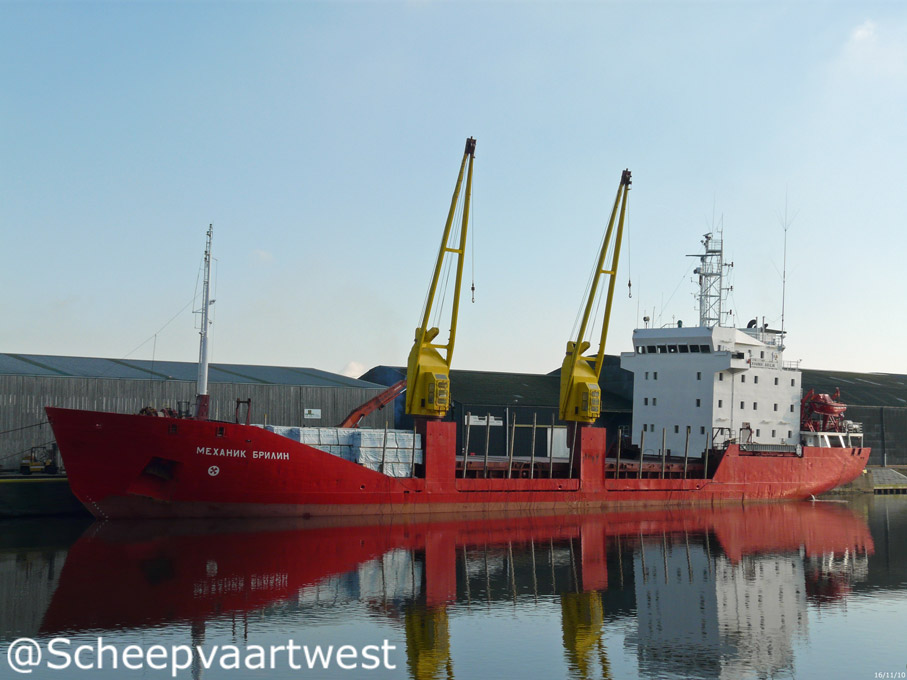

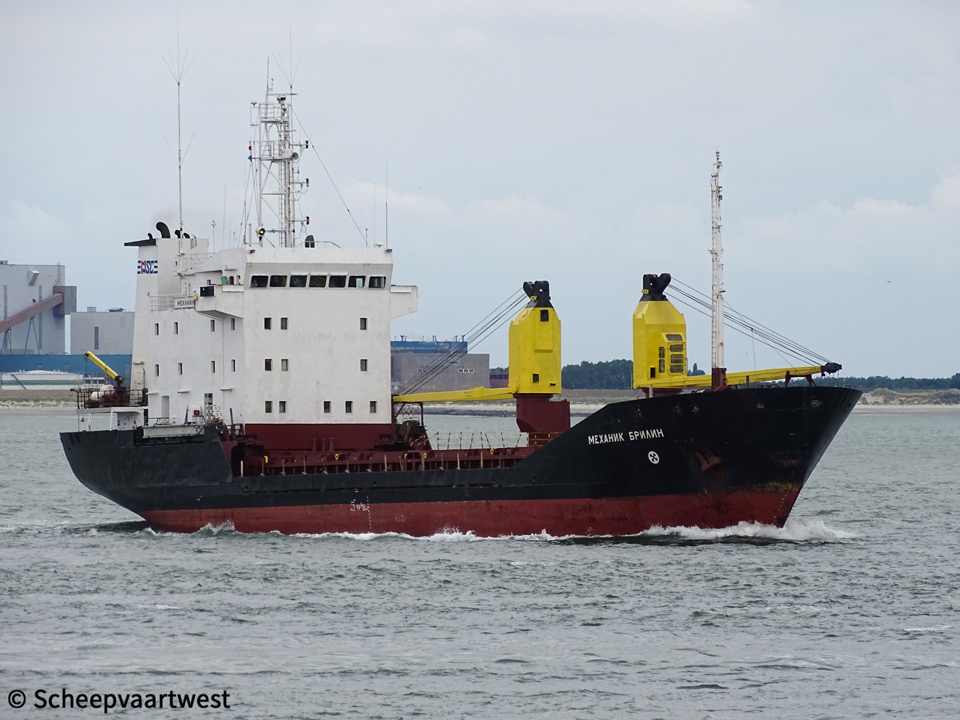

Mekhanik Brilin - IMO 8904408

Name

MEKHANIK BRILIN

Russian name

МЕХАНИК БРИЛИН

Type

General cargo

Wood packaged wood logs grain

IMO-number

8904408

Call sign

UCOO

Flag

Russian Federation

Port of registry

Arkhangelsk

GT

2.489 t

Suez: 2.565,98 t

DWT

Summer: 2.654 t

NT

907 t

Suez: 1 561,74 t

Displacement

Full load: 4.206 t

Length

85,20 m overall

79,35 m between perpendiculars

Breadth

14,50 m over all

Draught

Summer: 5,05 m

Ballast: 3,14 m

Keel to top whip antenna

32,90 m

Depth

6,00 m

Speed

12,6 knots

Built

1991

Date of completion

27/08/1991

Builder

Osterreichische Schiffswerft

Linz

Austria

Yard number

779

Hull material

Steel

Hull type

Double hull

Bulkheads

6

Continuous decks

1

Main engine

1x Bryansk 6DKRN 26/98-12 - Combustion engine 2.074 kW at 237 rpm

Built: USSR 1990

Builder: Bryansk Engineering Works, JSC

Propeller

1x Controllable pitch propeller - 4 blades

Generators

3x Main diesel generatorsets each 264 kVA

Emergency generator

1x Diesel generatorset 50 kW

Number of holds

2

Hold 1: 22,40 x 11,60 x 6,00 m

Bale: 1.678 m³

Grain: 1.684 m³

Hold 2: 22,40 x 11,60 x 6,00 m

Bale: 1.678 m³

Grain: 1.727 m³

Number of hatches

2

Hatch 1: 18,85 x 10,50 m

Hatch 2: 19,25 x 10,50 m

Cargo hold capacity

Total:

Grain: 3.411 m³

Bale: 3.356 m³

Deck space for cargo

507 m2

Max. permitted loads

Hatch covers: 1,55 t/m²

On deck: 3,00 t/m²

Tank capacities

Fuel oil: 197 t / 227 m³

Fresh water: 49 t

Water ballast: 738 t

Lifting equipment

2x Cranes - SWL 5,0 t each

Crew size

16

Manager

Northern Shipping Company, Joint-Stock Company

JSC NSC

Nab. Severnoy Dviny, 36

Arkhangelsk

Russia

Registered owner

Northern Shipping Company, Joint-Stock Company

JSC NSC

Nab. Severnoy Dviny, 36

Arkhangelsk

Russia

Latest data adjustment

30 June 2020
