| Zeebrugge 15 June 2004 |
|
Name |

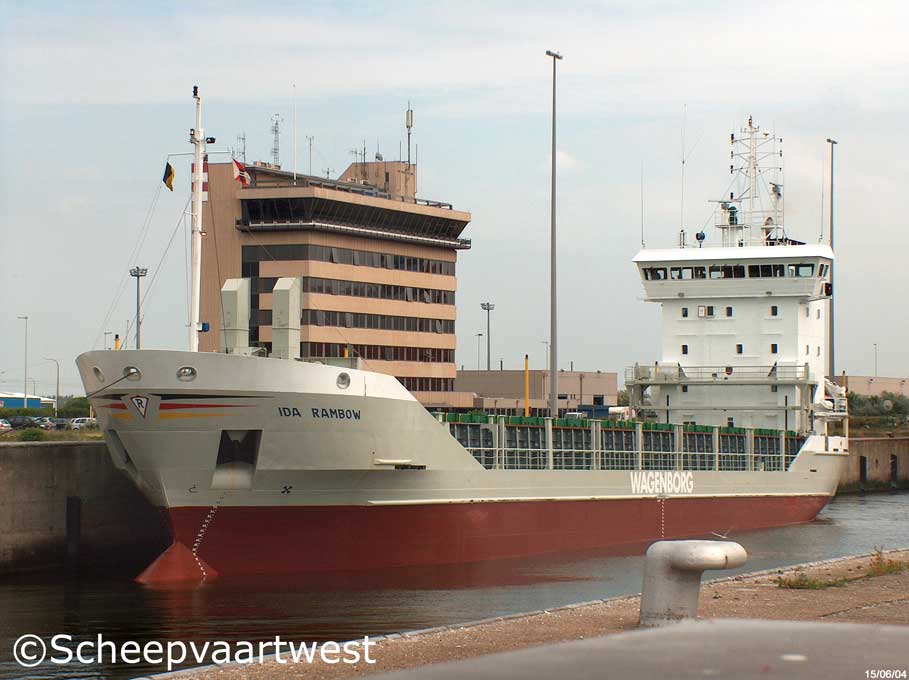

IDA RAMBOW |
|
Type |
General cargo |
|
IMO-number |
9136216 |
|
Call sign |
DFSK |
|
Flag |
Germany |
|
Port of registry |
Assel |
|
GT |
2.863 t |
|
DWT |
Summer: 3.905 t |
|
NT |
1.394 t |
|
Number of 20ft containers |
261 |
|
Length |
89,96 m m overall |
|
Breadth |
13,70 m overall 13,60 m moulded |
|
Draught |
Summer: 5,713 m |
|
Forecastle |
8,74 m |
|
Quarterdeck |
15,04 m |
|
Freeboard |
1.490 mm |
|
Depth |
7,20 m moulded |
|
Speed |
12,0 knots |
|
Built |
1996 |
|
Keel laid |
01.11.1995 |
|
Launch date |
24.08.1996 |
|
Date of completion |
10.1996 |
|
Builder |
Bodewes Scheepswerf Volharding Foxhol B.V. |
|
Yard number |
327 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz TBD 645 L 6 - 6 cylinder single acting330 x 450 mm diesel engine - 2.147 kW Builder: Deutz MWM Motoren-Werke Mannheim AG |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boiler |
1x Water heater, oil fired Year of manufacture: 1996 |
|
Bow thruster |
1x Transverse thruster JASTRAM - 200 kW, forward |
|
Electric installations |
1x 380/220 V - 340 kVA 1x 380 V - 810 kVA 1x 380 V - 78 kVA |
|
Shaft generator |
1x 810 kVA |
|
Generators |
2x Main diesel generatorsets each 170 kVA |
|
Emergency generator |
1x Diesel generatorset 78 kVA |
|
Compressed air Receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Cargo tons |
Summer 3.950 t Winter 3.800 t |
|
Timber capacity |
5.400 m³ |
|
Holds |
Length: 62,89 m Width: 11,00 m Height: 8,35 m |
|
Number of holds |
1 Length: 62.88 m |
|
Hold capacity |
Grain 198.800 ft³ / 5.628 m³ Bale 198.800 ft³ / 5.628 m³ |
|
Tank capacities |
Ballast: 1.792 m³ Bunker: 207 t Fuel oil: 207 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Gear |
Gearless |
|
Renamed |
2005 Listervik |
