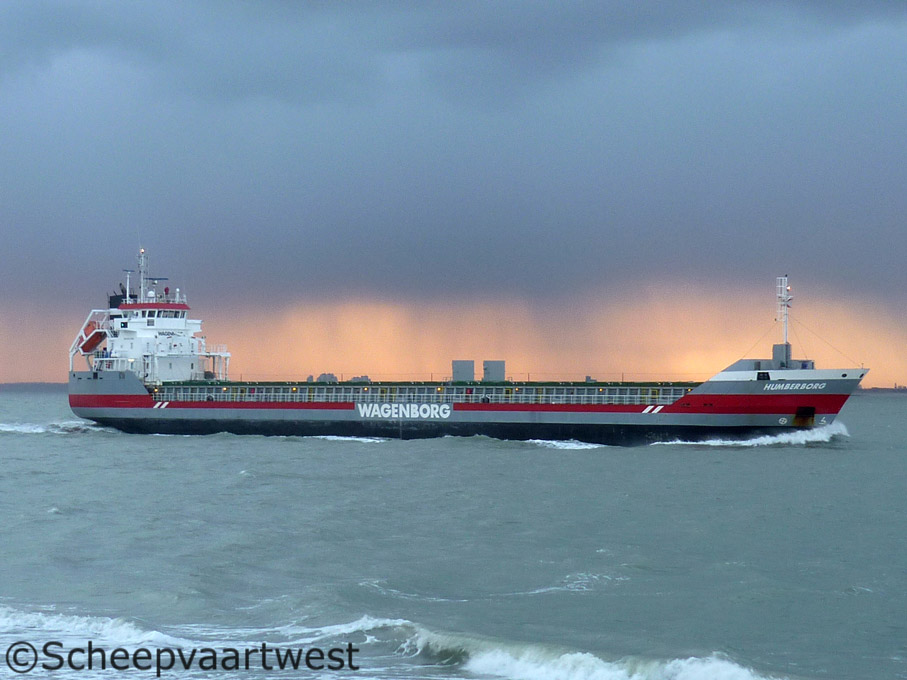

| Westerschelde 10 December 2011 |
|
Name |
HUMBERBORG |
|
Type |
Multi-purpose dry cargo carrier - heavy cargo - Container ship |
|
IMO-number |
9321392 |
|
Call sign |
PHFC |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
4.266 t |
|
DWT |
Summer: 6.053 t |
|
DWCC |
Summer: 9.300 t Winter: 9.150 t |
|
NT |
2.256 t |
|
Number of 20ft containers |
256 |
|
Length |
113,76 m overall 107,64 m between perpendiculars |
|
Breadth |
14,60 m |
|
Draught |
6,57 m |
|
Air draft |
31,10 m from keel to top |
|
Freeboard |
1.542 mm |
|
Depth |
8,10 m |
|
Speed |
12,0 knots loaded 13,0 knots ballast |
|
Built |
2006 |
|
Launch date |
2005 |
|
Date of completion |
21/04/2006 |
|
Builder casco |
Maritim Sp. z.o.o. Gdansk Poland |
|
Builder |
Royal Niestern Sander BV Delfzijl The Netherlands |
|
Yard number |
826 |
|
Hull material |
Steel |
|
Watertight bulkheads |
7 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L32 - 4 stroke single acting 6 cylinder 320 x 400 mm combustion engine 2.999 kW / 4.023 bhp at 750 rpm Built: 2005 Builder: Wärtsilä Finland OY, Vaasa - Finland |
|
Electrical propulsion gen. |
1x 408 kW - 400 Volt |
|
Propeller |
1x Screw propeller controllable pitch - aft at 194 rpm |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 230 V |
|
Generators |
2x Diesel generatorsets each 231 kVA - 185 kW - 272 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 150 hp |
|
Bow thruster |
1x 350 kW |
|
Number of holds |
2 Hold 1: 38,22 x 11,70 x 8,98 m Hold 2: 44,48 x 11,70 x 8,98 m Narrowing fore/aft - Steelfloored |
|
Cargo hold capacity |
Hold 1: 121.521 ft³ Hold 2: 162.430 ft³ Total: 283.951 ft³ / 8.375 m³ |
|
Hold ventilation |
30 Air changes per hour |
|
Number of hatches |
2 Hatch 1: 38,22 x 11,70 m Hatch 2: 44,48 x 11,70 m |
|
Max. permitted loads |
Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 301 m³ |
|
Manager |
Wagenborg Shipping Delfzijl The Netherlands |
|
Operator |
Wagenborg Shipping |
|
Owner |
Niestern Sander Delfzijl The Netherlands |
|
Registered owner |
Scheepvaatonderneming Humberborg B.V. |
|
Renamed |
10/2014 Aasfjord
10/2021 Aasfjord
|
|
Latest data adjustment |
27 September 2024 |
