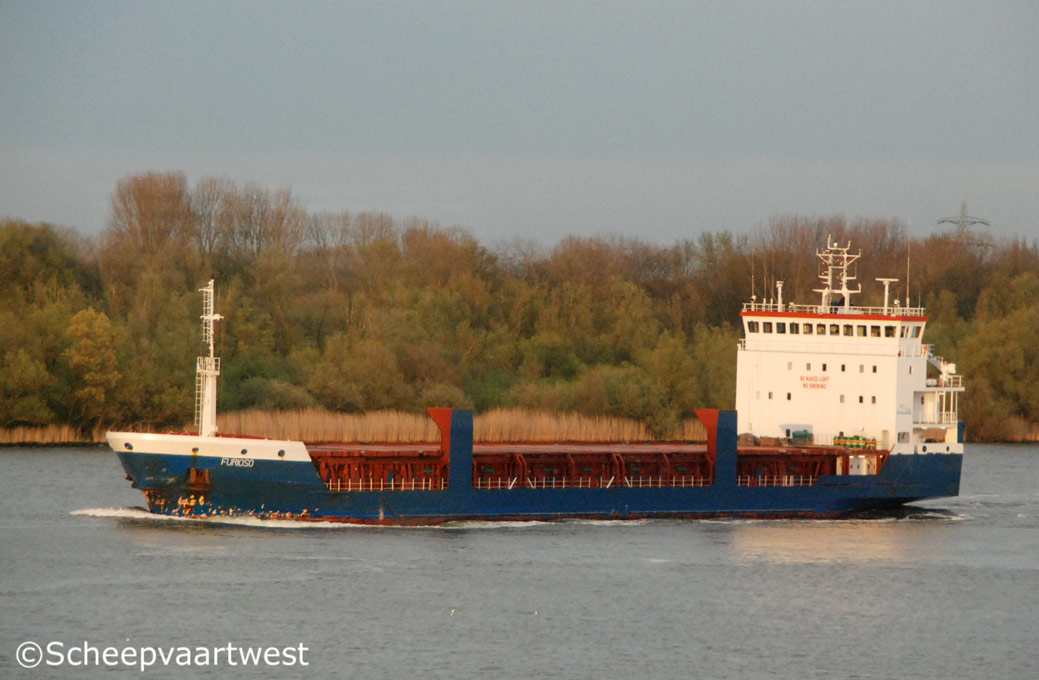

Furioso 01
Spijkenisse 04 April 2011



Name

FURIOSO

Previous names

Sequana

Kar Oguzhan

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9191955

Call sign

V2CX5

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

4.244 t

DWT

5.553 t

NT

2.370 t

Number of 20ft containers

In hold: 141

On deck: 216

Total: 357

Container capacity 14t

240

Length

99,98 m overall

95,31 m registered

Breadth

16,50 m registered

Draught

6,10 m

Air draft

14,60 m at 3,20 m draft

Depth

8,00 m moulded

Speed

13,0 knots

Built

2007

Keel laid

28.05.1998

Launch date

03.03.2003

Date of completion

08.08.2007

Builder

Istanbul Tersanesi Komutanligi
Altkaynarca, Pendik
34890 Istanbul
Turkey

Yard number

5104

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAK 8M32C - 4 stroke 8 cylinder 320 x 480 mm diesel engine - 3.840 kW at 600 rpm

Year of manufacture: 2005

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 184 rpm

Boilers

1x Water heater, oil fired - 5,0 bar

Heating surface: 11,74 m²

Year of manufacture: 2000

Electric installation

2x Plants each 380/220 V - 452,5 kVA

1x Plant 400 V - 750 kVA

1x Plant 380 V - 166,25 kVA

3x Plants each 24 V with 200 Ah

Shaft generator

1x 750 kVA / 410 kW

Generators

2x Main diesel generatorsets each 452,5 kVA

Emergency generator

1x Diesel generatorset 166,25 kVA

Batteries

2x Batteries for start emergency engine each 200 Ah

1x Battery for UPS navigation 200 Ah

2x Batteries for UPS navigation each 200 Ah

2x Batteries for diesel control each 200 Ah

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 410 kW, forward

Number of holds

1

64,00 x 13,80 x 8,85 m

Hold capacity

Grain: 7.835 m³

Bale: 7.810 m³

Number of hatches

1

64,00 x 13,80 m

Hatch covers

Kvaerner Type

Load of hatch covers

2,5 t

Strength tanktop

12 t/m²

Ventilation hold

Electric ventilation - 6x /hr at empty condition

Tank capacities

Fuel oil: 363 m³

Gas oil: 59 m³

Fresh water: 80 m³

Water ballast: 2.668 m³

Anchor equipment

3x Anchors weight each 2.850 kg

Chain length: 495,00 m

Manager

ShipCom Bereederungs GmbH
Rheinallee 14
47119 Duisburg
Federal Republic of Germany

Registered owner

ShipCom Bereederungs GmbH & Co. Betriebs-KG MS "SEQUANA"
Rheinallee 14
47119 Duisburg
Federal Republic of Germany
