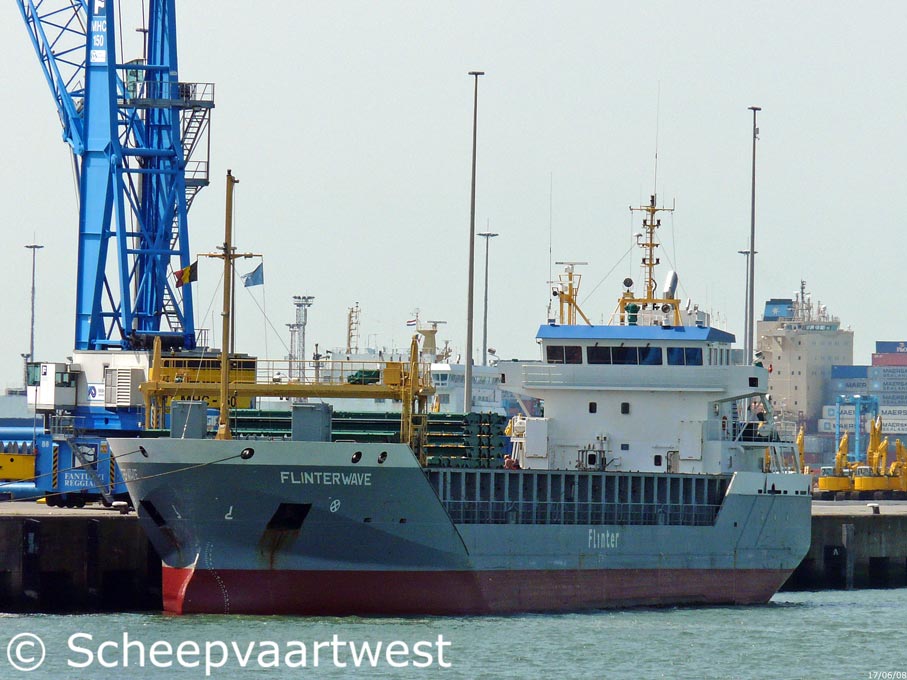

| Zeebrugge 17 June 2008 |
|
Name |
FLINTERWAVE |
|
Type |
General dry cargo ship - Containership |
|
IMO-number |
9313785 |
|
Call sign |
PHBZ |
|
Flag |
The Netherlands |
|
Port of registry |
Heerenveen |
|
Previous flags |
11/2004- 2008 The Netherlands, Haren - Call sign: PHBZ |
|
GT |
2.848 |
|
DWT |
Summer: 4.305 t |
|
NT |
1.528 |
|
Number of 20ft containers |
In hold: 111 On deck: 135 Total: 246 |
|
Length |
89,78 m overall 84,99 m between perpendiculars |
|
Breadth |
13,60 m moulded |
|
Draught |
Summer: 5,86 m Winter: 5,74 m |
|
Air draft |
32,11 m |
|
Freeboard |
1.561 mm |
|
Depth |
7,20 m moulded to main deck |
|
Speed |
Max: 13,2 knots Service: 10,0 knots |
|
Built |
2004 |
|
Keel laid |
12/05/2004 |
|
Launch date |
23/10/2004 |
|
Date of completion |
26/11/2004 |
|
Builder |
B.V. Scheepswerf 'Ferus Smit' B.V. Westerbroek (Foxhol) Hoogezand The Netherlands |
|
Yard number |
352 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 3.587 hp / 2.640 kW at 750 rpm Built: 2004 Builder: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany |
|
Elec. propulsion generator |
1x 340kW - 450V |
|
Propellers |
1x Controllable pitch propeller - aft at 200 rpm |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
2x Scania 6DS9 diesel generatorsets each 290 kVA - 232 kW - 332 hp |
|
Emergency & harbour gen. |
1x Valmet diesel generatorset 70 kVA |
|
Number of holds |
1 62,88 x 11,00 x 8,35 m |
|
Cargo hold capacity |
Grain: 5.580 m³ / 198.762 ft³ |
|
Hold ventilation |
6x Electrical |
|
Number of hatchways |
1 59,40 x 11,50 m |
|
Hatch cover type |
Steel pontoon hatches with 1 gantry crane |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,70 t/m² |
|
Tank capacities |
Ballast: 1.551 m³ MGO: 342,4 m³ Potable water: 62 m³ |
|
Accommodation |
For captain and crew of a total 10 persons with heating, ventilation and air-conditioning |
|
Manager |
Flinter Management B.V., Barendrecht The Netherlands |
|
Previous managers |
11/200- 2008 Flinter Groningen B.V., Groningen - The Netherlands |
|
Owner |
Wave BV Heerenveen The Netherlands |
|
Previous names & owner |
11/2004 - 2008 Flinterwave - C.V. Scheepvaartonderneming Flinterwave, Paterswolde - The Netherlands |
|
Renamed |
01/2011 - 11/2019 Wave The Netherlands, Heerenveen - Call sign: PHBZ Owner: Wave B.V., Heerenveen - The Netherlands 2001 Manager: ForestWave Navugation B.V., Heerenveen / The Netherlands 2012 Manager: Management Facilities Group B.V., Farmsum - The Netherlands 2014Manager: Rivermaas B.V., Rhoon - The Netherlands 11/2019 Ferromar Cyprus, Limassol - Call sign: 5BJB5 Owner: Hermann Lohmann Schifffahrt G.m.b.H. & Co. KG, Haren/Ems - Germany Manager: Lohmann Bereederungen G.m.b.H. & Co. K.G., Haren/Ems - Germany |
|
Latest data adjustment |
17 January 2025 |
