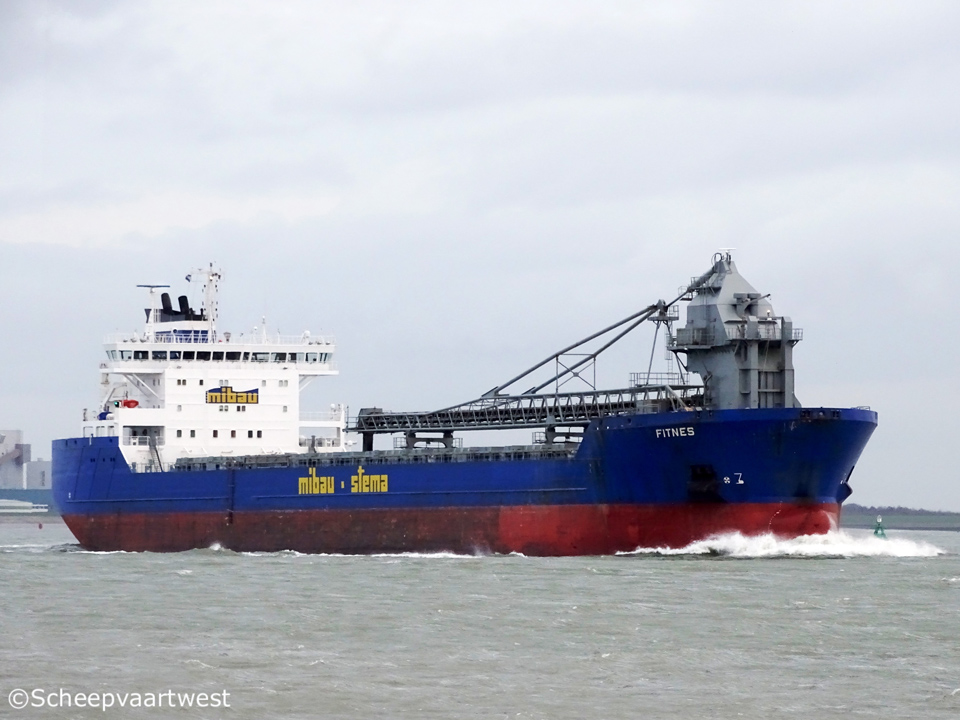

Fitnes 02
Westerschelde 09 December 2017

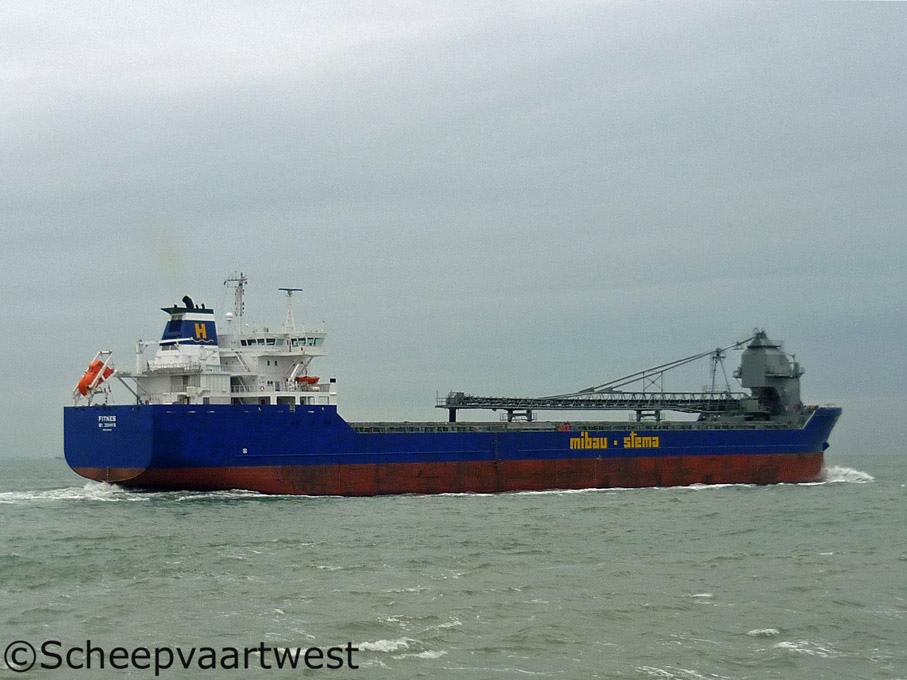

Fitnes 01
Westerschelde 21/09/11



Name

FITNES

Type

Self-discharging bulk carrier - Stone chip carrier

IMO-number

9490105

Call sign

V2ER8

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

20.234 t

DWT

Summer: 33.169 t

NT

7.085 t

Light ship

8.394 t

Length

175,60 m overall

168,70 m between perpendiculars

Breadth

26,24 m extreme

Draught

Max.: 10,81 m

Air draft

Abt.: 37,00 m

Depth

15,10 m

Speed

Service: 14,5 knots

Built

2010

Date of completion

02.2010

Builder

Sietas Shipbuilding
Hamburg - Neuenfelde
Germany

Yard number

1311

Hull material

Steel

Main engine

1x Caterpillar MaK 8M43C - 4 stroke single acting 8 cylinder combustion engine - 7.300 kW / 9.782 bhp at 500 rpm

Propeller

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired DWE 1000 V 55

1x Thermal oil heater, exhaust heated AWE 1050 V 55

Generators

3x Caterpillar 3508DITA diesel generatorsets each 970 kW / 1.301 bhp

Emergency generator

1x MAN D2866 LXE diesel generatorset

Thruster

1x Bow thruster pitch Brunvoll - 1.500 kW

1x Stern thruster pitch Brunvoll - 1.000 kW

Number of holds

7

Cargo capacity

33.100 t

Discharging rate

Max.: 3.000 t/h or 2.000 m³/h

Max. outreach of boom

From midship: 86,00 m

From ships side: 71,00 m

Tank capacities

Ballast: 13.961 m³

Anchor equipment

Length: 608,58 m

Diameter: 64 mm

Crew

16

Manager

HJH - Hartmann Hans Jurgen shipmanagement GmbH & Co. KG
Gewerbestrasse 3
21781 Cadenberge
Germany

Technical Manager

Reederei Hans-Jürgen Hartmann MS „Fitnes“ GmbH & Co. KG Stema Shipping A/S

c/o HJH shipmanagement GmbH & Co.
Gewerbestraße 3

D - 21781 Cadenberge
Germany

Operator

Mibau-Stema shipping

Owner

Hartmann Hans Jurgen
Rostock
Germany

Latest data adjustment

14 June 2018
