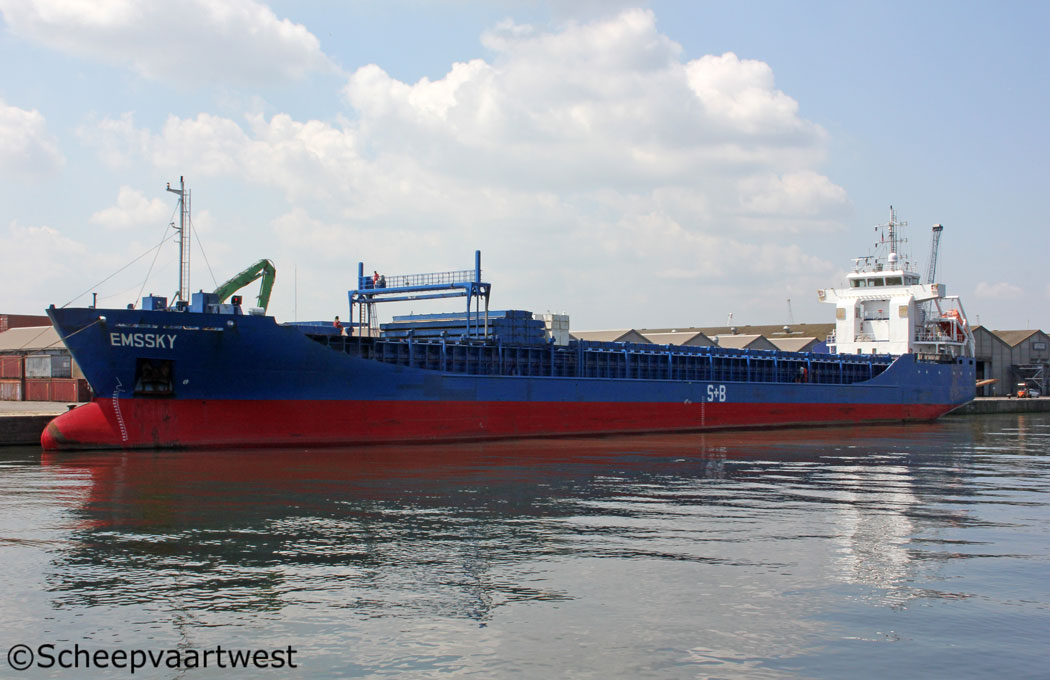

Emssky 01
Antwerpen 26 June 2012

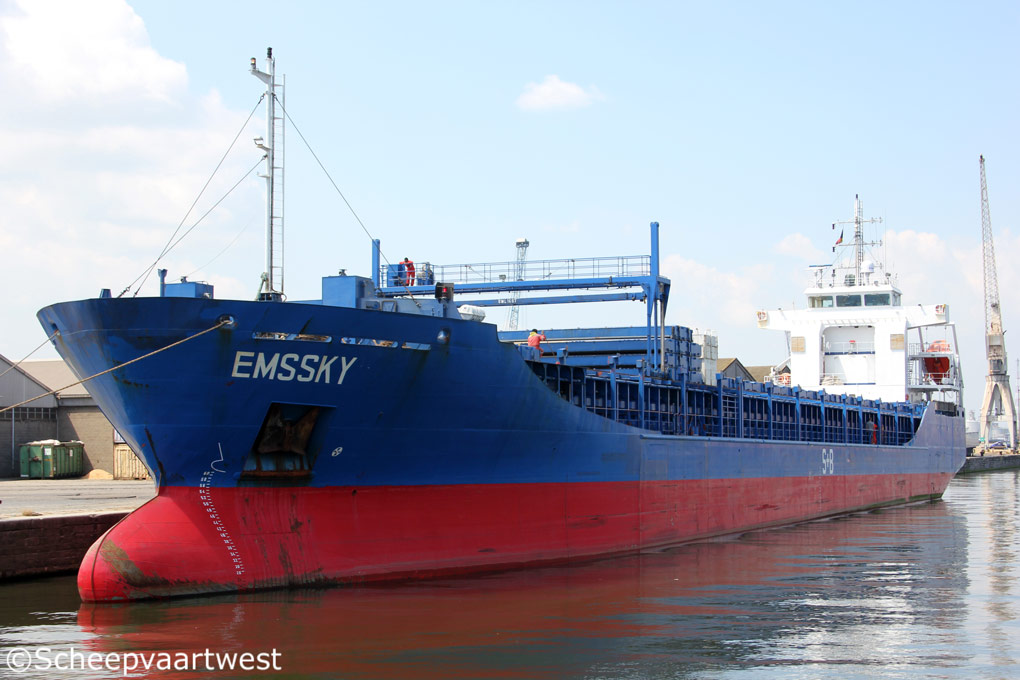

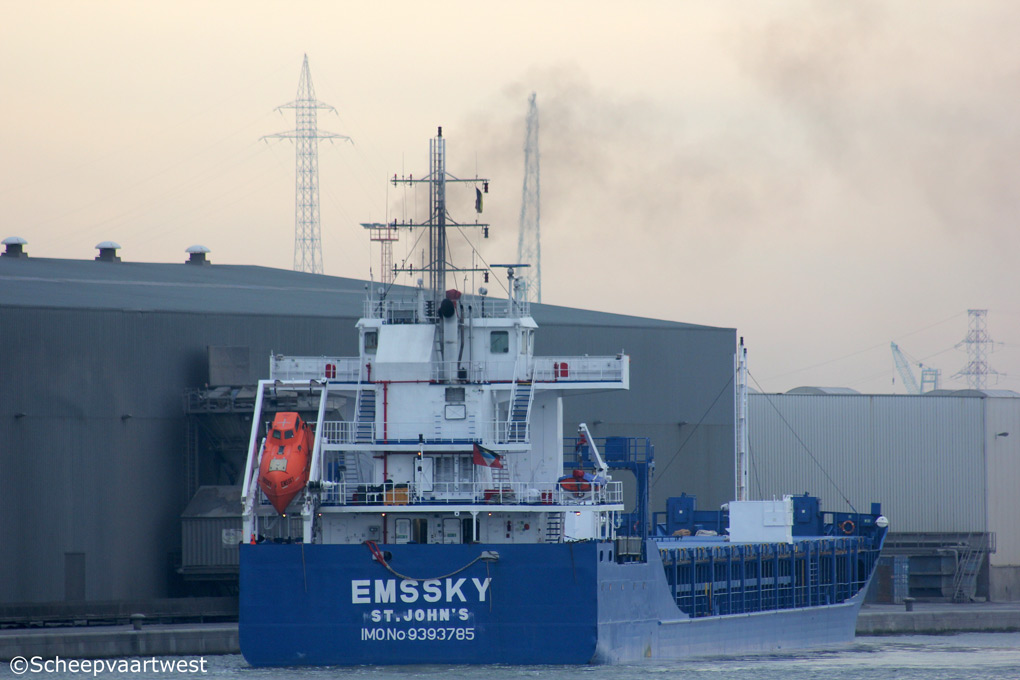

Emssky 02   Emssky 03
Antwerpen 26/06/12 Antwerpen 28/11/14



Name

EMSSKY

Type

Multi-purpose dry cargo ship -Equipped for carriage of containers - Strengthened for heavy cargo
Gearless box single decker

IMO-number

9393785

Call sign

V2EP7

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

4.842 t

DWT

Summer: 6.250 t

Winter: 6.050 t

NT

2.619 t

Number of 20ft containers

In hold: 174

On deck: 159

Total: 333

Length

115,00 m overall

109,90 m between perpendiculars

Breadth

16,03 m extreme

Draught

7,50 m

Air draft

29,00 m

Depth

7,50 m to main deck

Speed

Service: 12,5 knots

Max: 13,1 knots

Built

2011

Keel laid

04/06/2007

Launch date

03/01/2010

Delivery date

15/02/2011

Builder

Bharati Ratnagiri Yard

Ratnagiri

India

Yard number

330

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 9L26A - 4 stroke single acting 6 cylinder 260 w 320 mm combustion engine 2.937 kW / 3.993 hp at 1.000 rpm

Builder: Wärtsilä Nederland BV - The Netherlands

Propellers

1x Controllable pitch propeller - aft at 202 rpm

Boilers

1x Thermal oil heater, oil fired Mission TFO V-3-0-TFO-003

Shaft generator

1x 428 kW - 440 Volt 60 Hz

Generators

2x Agco Sisu V84 CTAG-4V - 4 stroke 8 cylinder diesel 111x 142 mm engine MCR 175 kW connected with generator 157 kW / 440 Volt 60 Hz

Builder: Agco Sisu Diesel

Emergency & harbour gen.

1x Valmet diesel generatorset 70 kVA

Number of holds

2x Boxshaped hold narrowing fore and aft

Hold 1: 37,30 x 13,50 x 9,00 m

Hold 2: 53,20 x 13,50 x 9,00 m

Cargo hold capacity

Hold 1: 3.102 m³

Hold 2: 6.463 m³

Grain: 9.565 m³

Hold ventilation

Electric driven air changes

Number of hatches

2

Hatch 1: 27,30 x 13,50 m

Hatch 2: 53,20 x 13,50 m

Hatch covers type

Pontoon hatch covers

Max. permitted loads

Tanktop: 15,0 t/m²

Hatch cover: 1,75 t/m²

Pumps

2x Ballast pumps each 150 m³/h

Tank capacities

Fuel: 339,7 m³

Ballast: 1.740 m³

Potable water: 62,0 m³

Anchor equipment

Length: 495,00 m

Diameter: 44 mm

Crew size

10

Manager

Grona Shipping Gmbh Co. KG

Deverhafen 2

26871 Papenburg

Germany

Previous managers

2011 - 2011 Grona Shipping GmbH & Co. KG

2011 - 2014 SGB Emssky GmbH & Co. KG

Owner

S&B Emssky GmbH & Co.KG

Papenburg

Germany

Previous owners

2011 - 2011 Grona Shipping GmbH & Co. KG

Renamed

2019 Skarpoe

Antigua & Barbuda, St. John's - Call sign: V2EP7

Reg. Owner: Eleonora Hermann Lohmann - Germany

ISM manager: Hermann Lohmann Schiffahrts - Germany

Commerical manager: Lohmann Bereederungen - Germany

Latest data adjustment

22 April 2022
