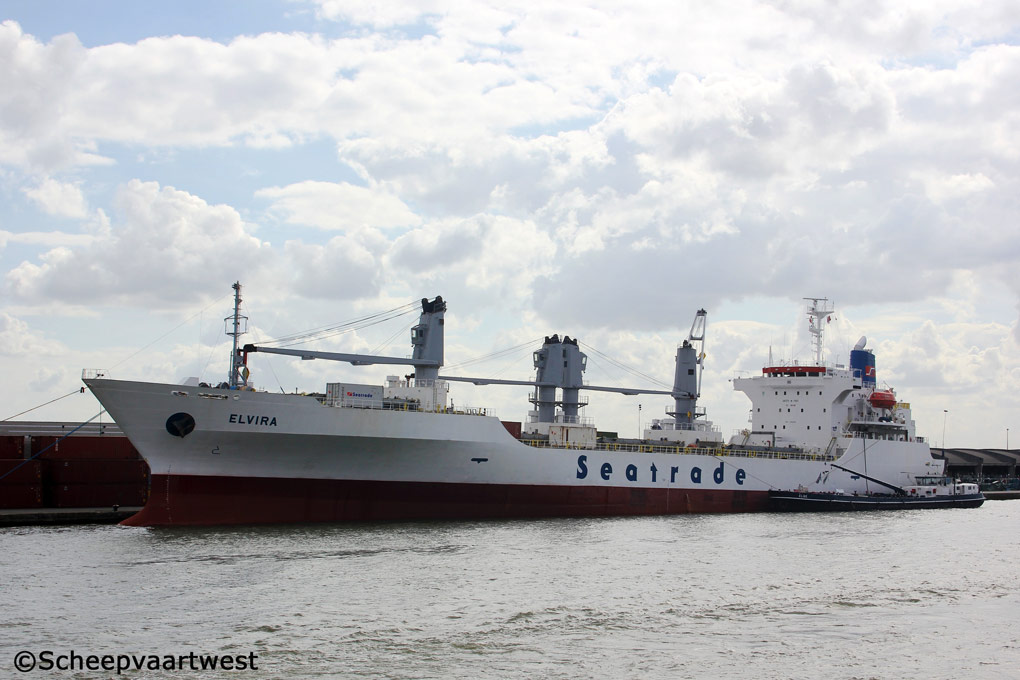

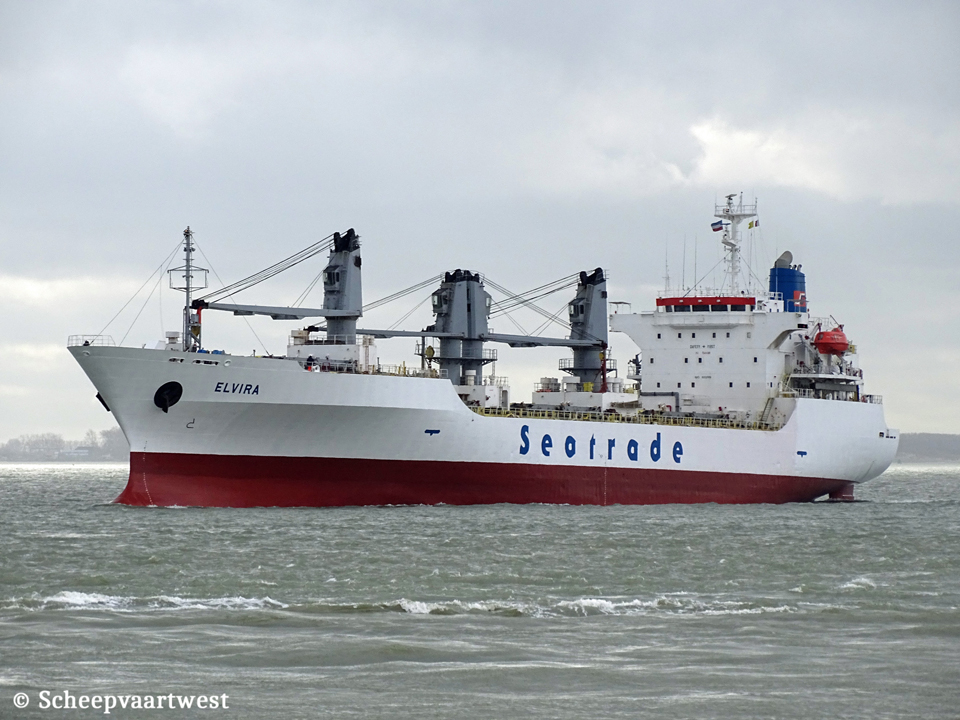

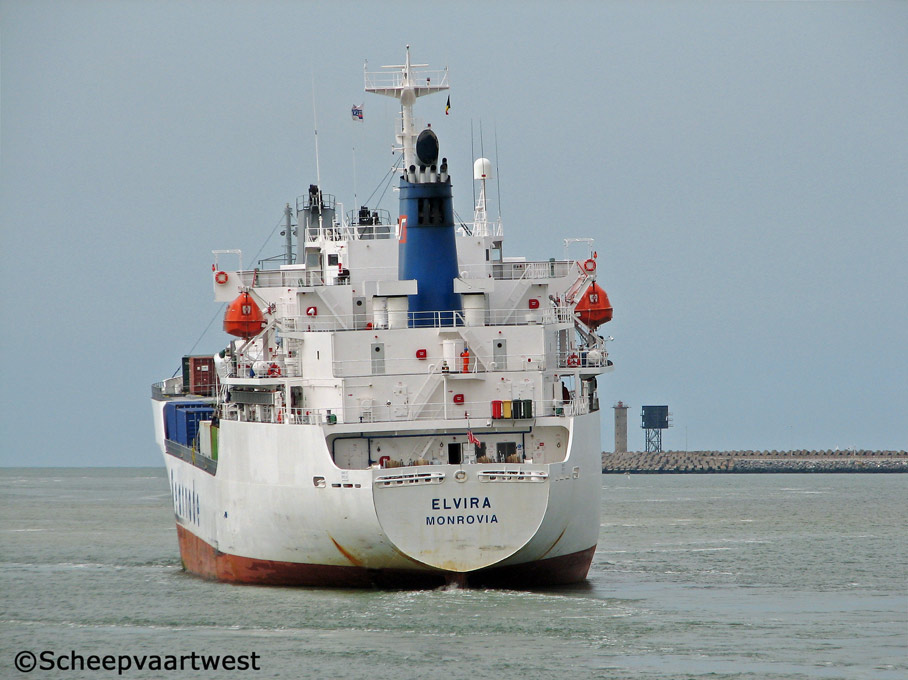

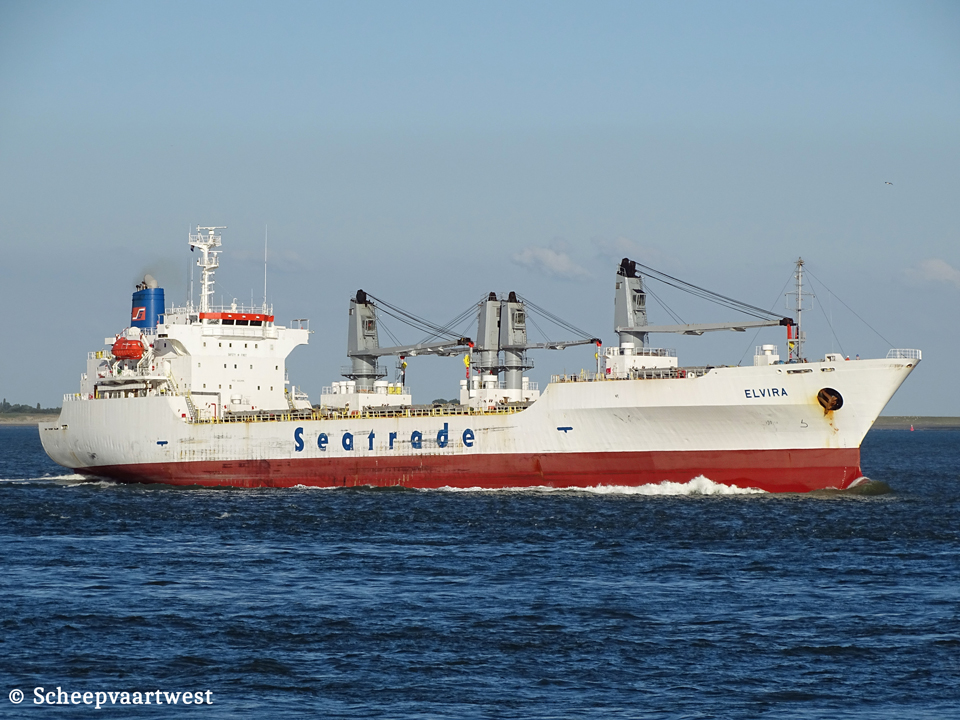

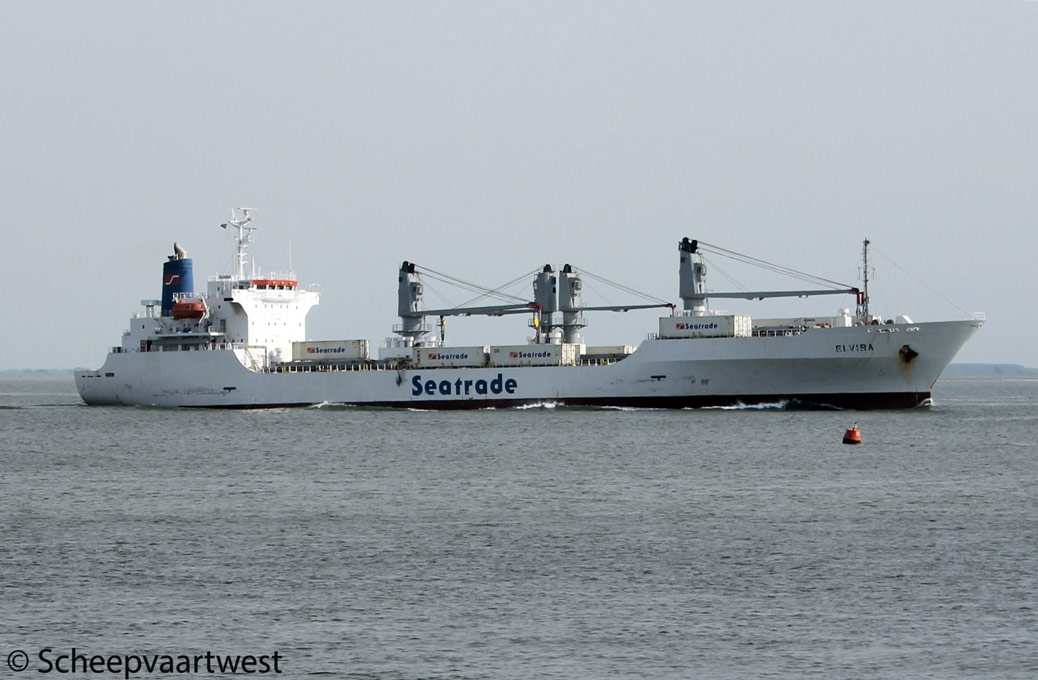

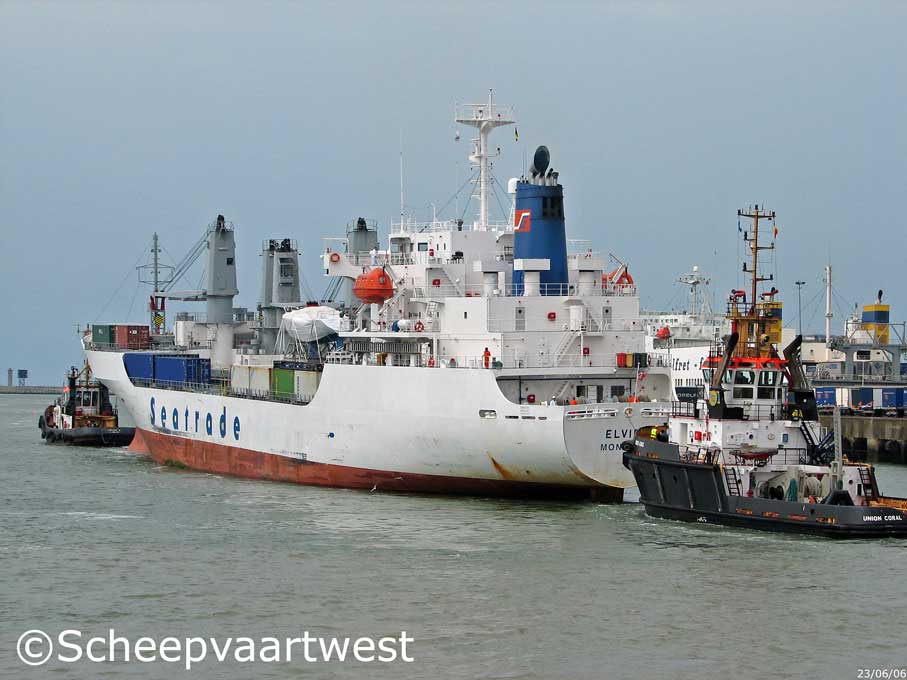

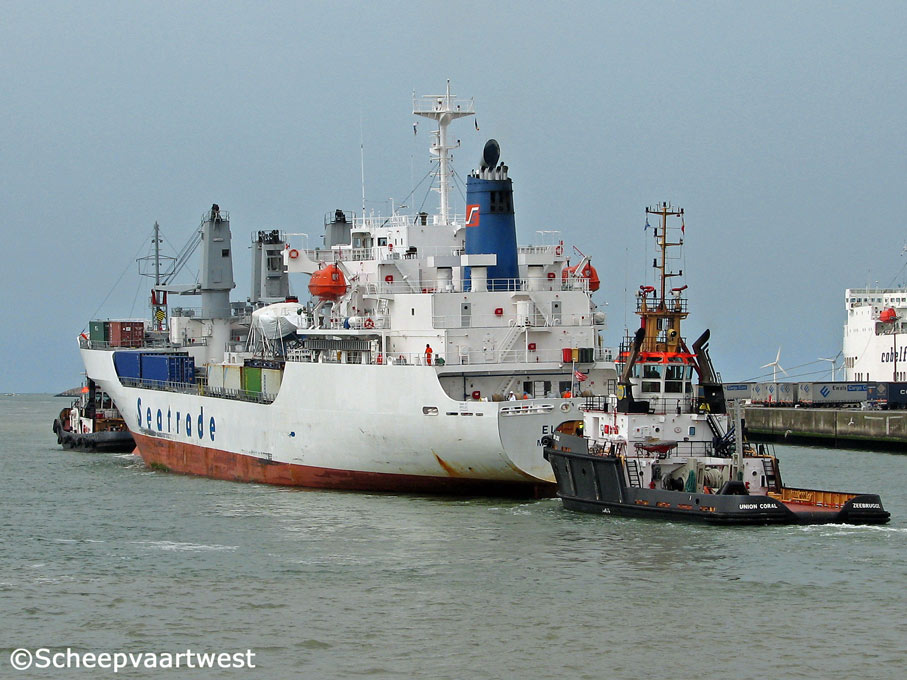

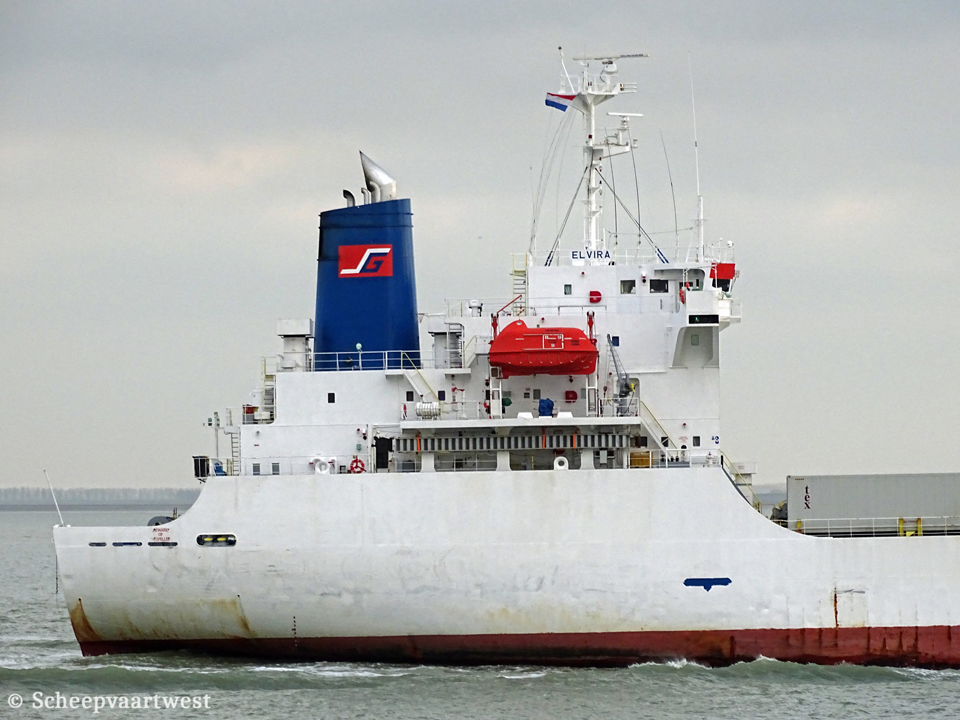

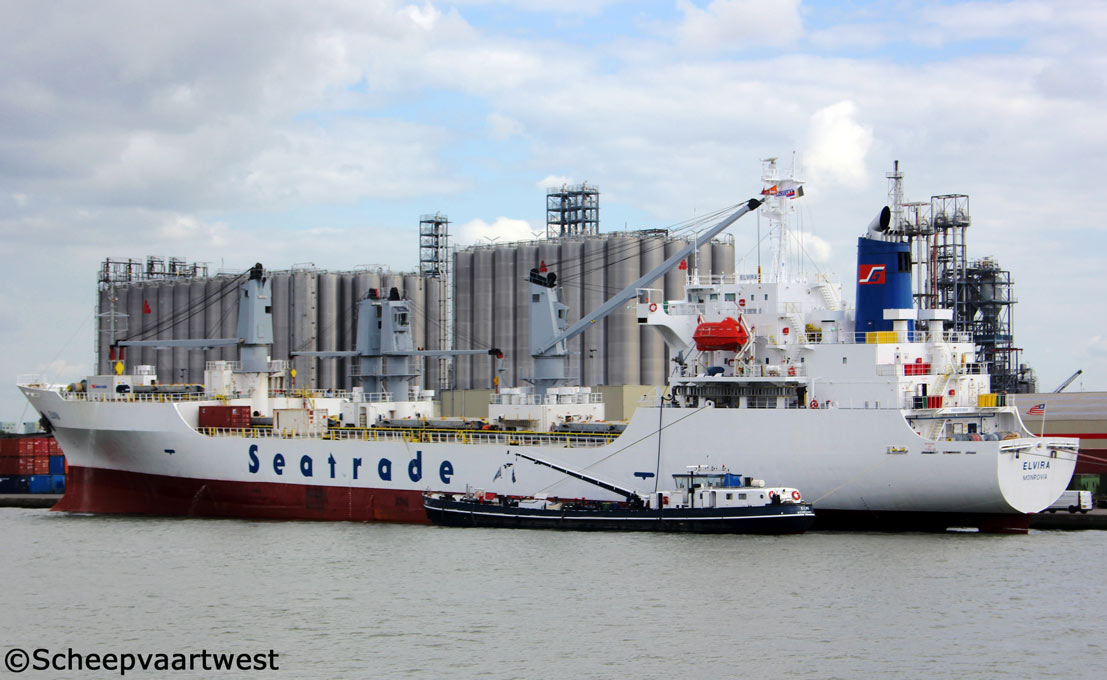

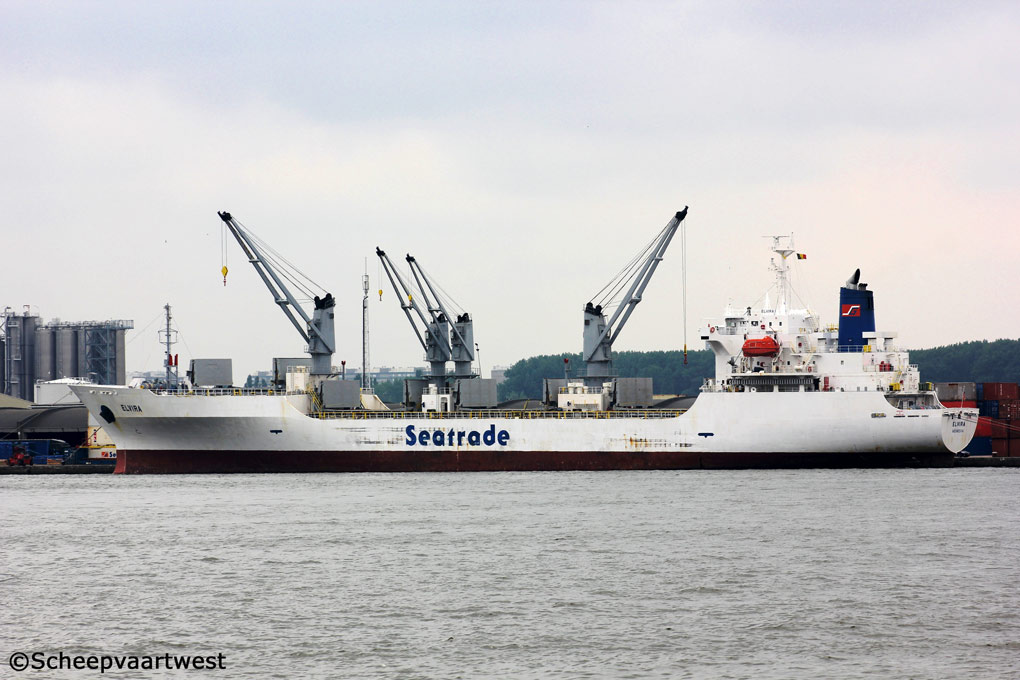

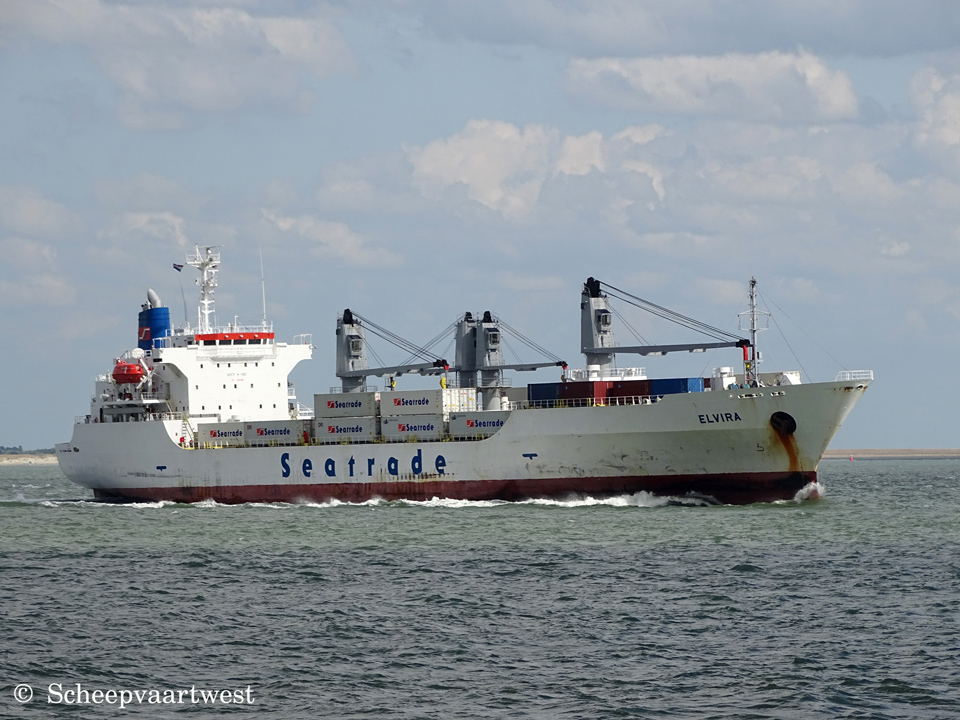

Elvira - IMO 9202869

Name

ELVIRA

Type

Refrigerated cargo ship - Equipped for carriage of containers

IMO-number

9202869

Call sign

A8IP2

Flag

Liberia

Port of registry

Monrovia

Previous flags

2002 - 2003 Republic Panama, Panama - Call sign: H3AE
2003 - 2006 The Netherlands, Groningen - Call sign: PBLJ

GT

10.532 t

DWT

Summer: 10.309 t

NT

5.406 t

Number of 20ft containers

In hold: 36
On deck: 200
Total: 236

Reefer plugs

106 on weather decks

Length

151,99 m overall
139,40 m between perpendiculars
141,15 m registered

Breadth

23,00 m overall

Draught

Summer: 8,67 m

Freeboard

3.333 mm

Depth

13,00 m moulded

Speed

21,0 knots

Built

2000

Date of completion

01/03/2000

Builder

Iwagi shipbuilding Zosen Co. Ltd.
Ochi
Imabari
Japan

Yard number

182

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

3

Main engine

1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinder 600 x 2.300 mm combustion engine 11.916 kW / 16.190 hp at 105,0 rpm
Builder: Akasaka Tekkosho K.K. (Akasaka Diesels Ltd.), Yaizu - Japan

Number of screws

1x Fixed pitch propeller - aft at 105 rpm

Boilers

1x CHO Miura 17,90 m²
1x CHR Miura 345,90 m²

Electrical installation

Power voltage: 440 V
Lighting voltage: 230 V
Frequency: 60 Hz

Generators

2x Diesel generatorsets each 625 kVA - 500 kW - 750 hp
2x Diesel generatorsets each 1.250 kVA - 1.000 kW - 1.499 hp

Emergency generators

1x Diesel generatorset 60 kVA - 48 kW - 82 hp

Number of hold

4

Cargo capacity

548.666 ft³ / 15.572 m³

Number of hatches

4
Dimensions: 13,60 x 8,20 m each

Number of compartments

16

Cooling sections

8

Hatch sizes on weather deck

1) 1x 13,00 x 7,85 m
2) 1x 13,00 x 7,85 m
3) 1x 13,00 x 7,85 m
4) 1x 13,00 x 7,85 m

Floorspace

6.243,76 m²

Pallets

4.700

Ventilation / Air changes

Vertical / 90

Insulation material

Glass wool

Cargo gear

2x Cranes - SWL 36 t each
2x Cranes - SWL 8 t each

Tank capacities

Fuel oil: 1.701,7 m³

Manager

Seatrade Groningen B.V.
Leonard Springerlaan 17
9727 KB Groningen
The Netherlands

Previous manager

03/2000 - 12/2003 United Ocean Ship Management Pte. Ltd.
12/2003 - 02/2006 Seatrade Groningen B.V., Groningen - The Netherlands
02/2006 - 01/2020 Triton Schiffahrt GmbH & Co. KG; Leer - Germany

Registered owner

Selinia Corporation, Monrovia - Liberia
Care of Seatrade Groningen BV
Leonard Springerlaan 17
9727 KB Groningen
The Netherlands

Previous owners

03/2000 - 12/2003 Ultima Shipholding S.A.
12/2003 - 08/2007 B.V. Shipping Company Elvira, Groningen - The Netherlands
08/2007 - 01/2020 Elvira Schiffahrtsgesellschaft, Leer - Germany

Latest data adjustment

09 March 2023
