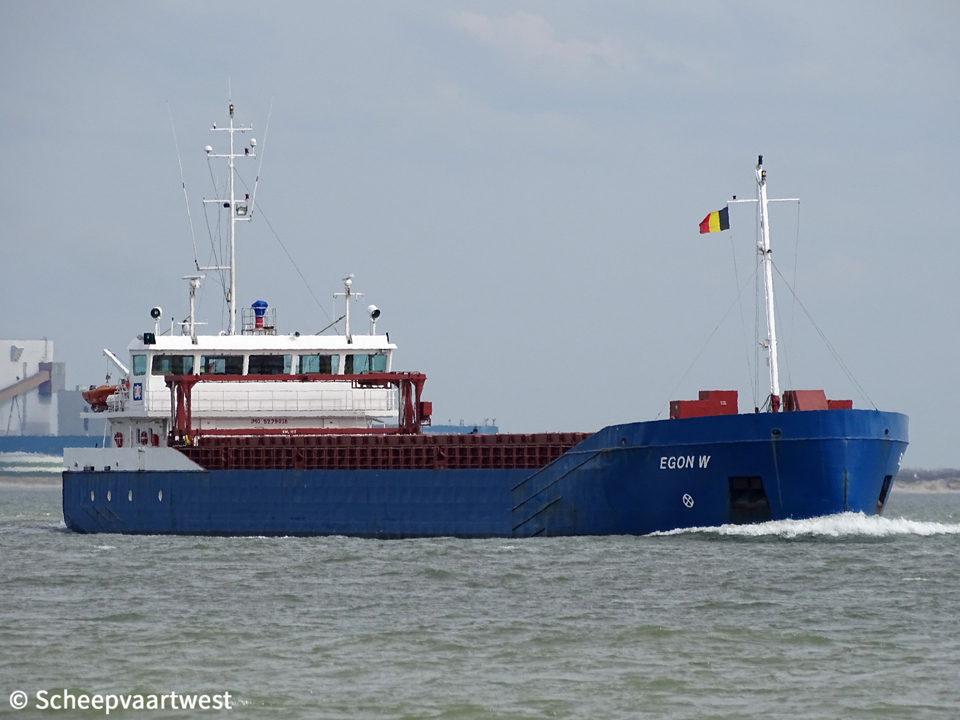

Westerschelde 30 March 2018 |
 |
 |
 |
||

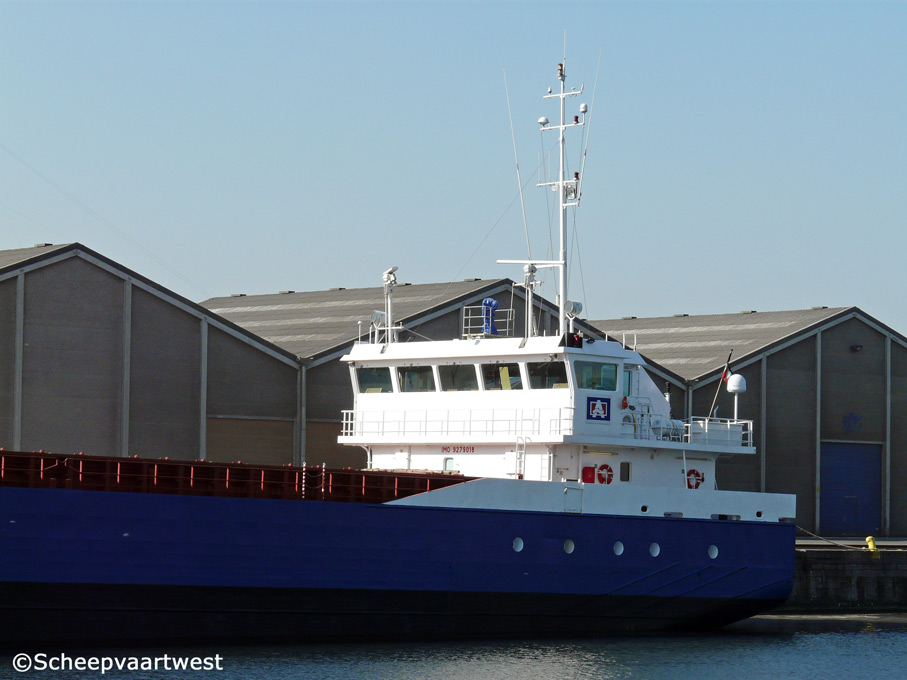

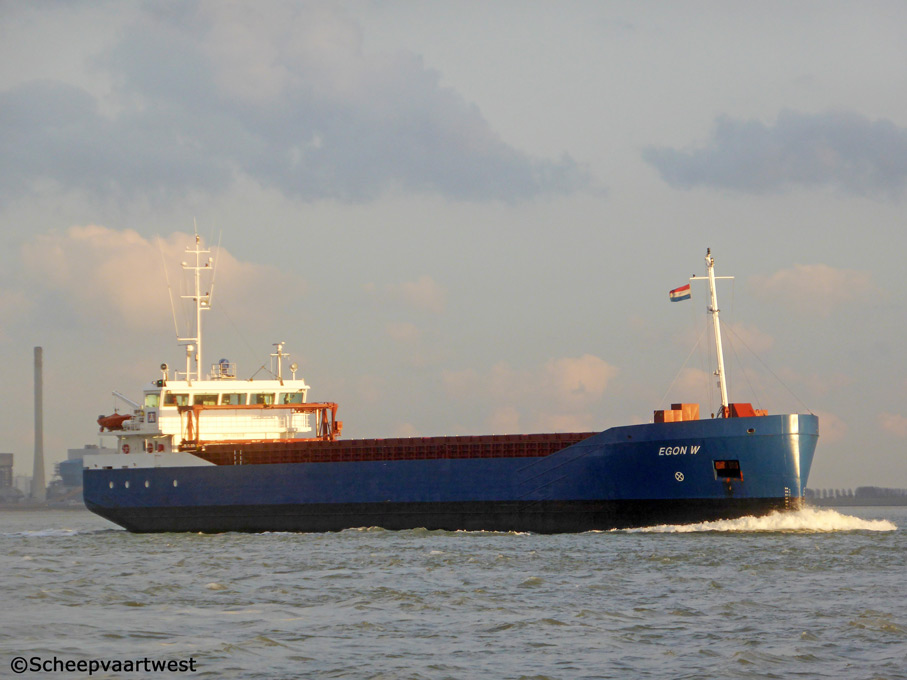

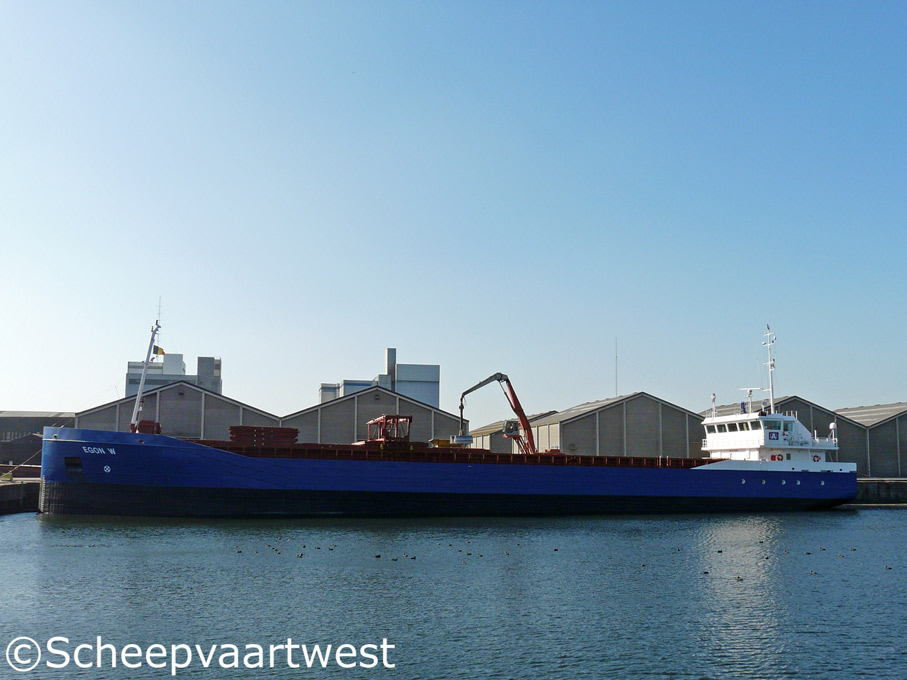

| Westerschelde 12/11/14 | Brugge 08/03/11 | Brugge 08/03/11 |
|
Name |
EGON W |
|
Previous names |
11/2004 - 11/2005 Iselmar |
|
Type |
General cargo - single deck - heavycargo Super Saimax |
|
IMO-number |
9279018 |
|
Call sign |
V2CE5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
2004 - 2005 The Netherlands, Lemmer - Call sign: PHBU 2005 - 2006 The Netherlands, Delfzijl - Call sign: PHBU |
|
|
St. John's |
|
GT |
2.409 t |
|
DWT |
3.217 t |
|
DWCC |
3.500 t |
|
NT |
814 t |
|
Number of 20ft containers |
132 |
|
Length |
82,50 m overall 80,86 m between perpendiculars |
|
Breadth |
12,52 m moulded |
|
Draught |
Summer: 4,85 m |
|
Air draft |
13,35 m in ballast |
|
Freeboard |
2.550 mm |
|
Depth |
8,00 m moulded |
|
Speed |
Service: 10,5 knots Max: 12,0 knots |
|
Built |
2004 |
|
Keel laid |
03/11/2005 |
|
Launch date |
29/05/2004 |
|
Date of completion |
17/11/2004 |
|
Builder casco |
Leda Shipyard d.o.o. Domince bb HR 20260 Korcula Croatia |
|
Builder completion |
Scheepswerf Peters B.V Kampen The Netherlands |
|
Yard number |
1002 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Main engine |
1x Caterpillar 3512 DITA - 5 stroke single acting 12 cylinder 170 x 190 mm combustion engine 749 KW at 1.600 rpm Manufacturer: Caterpillar Tractor Company Inc., Peoria (Illinois) - U.S.A |
|
Propellers |
1x Screw Propeller Controllable pitch - aft at 239 rpm |
|
Generators |
1x Generatorset 61 kVA - 49 kW - 72 hp 1x Generatorset 150 kVA - 120 kW - 177 hp |
|
Bow thruster |
1x 220 kW |
|
Number of holds |
1x Fully box and double skinned 54,60 x 10,30 x 8,15 m |
|
Hold capacity |
Grain: 4.583 m³ |
|
Hold ventilation |
6x Air changes per hour basis empty hold. Hold is fitted with dehumidifier system |
|
Number of hatches |
1 54,60 x 10,30 m |
|
Tank capacities |
MGO: 165 m³ Water ballast: 1.710 m³ Fresh water: 24 m³ |
|
Crew |
6 |
|
Manager |
Wagenborg Shipping B.V. Delfzijl The Netherlands |
|
Owner |
Schiffahrtsgesellschaft MS "Egon W" KG Marktstraat 10 NL-9934 CK Delfzijl The Netherlands |
|
Registered owner |
Reederei Andre Wieczorek GmbH & Co. KG. |
|
Previous nmes & owner |
11/2004 - 11/2005 Iselmar - Roel en Anet Oldekamp, Lemmer- The Netherlands |
|
Latest data adjustment |
05 December 2019 |
