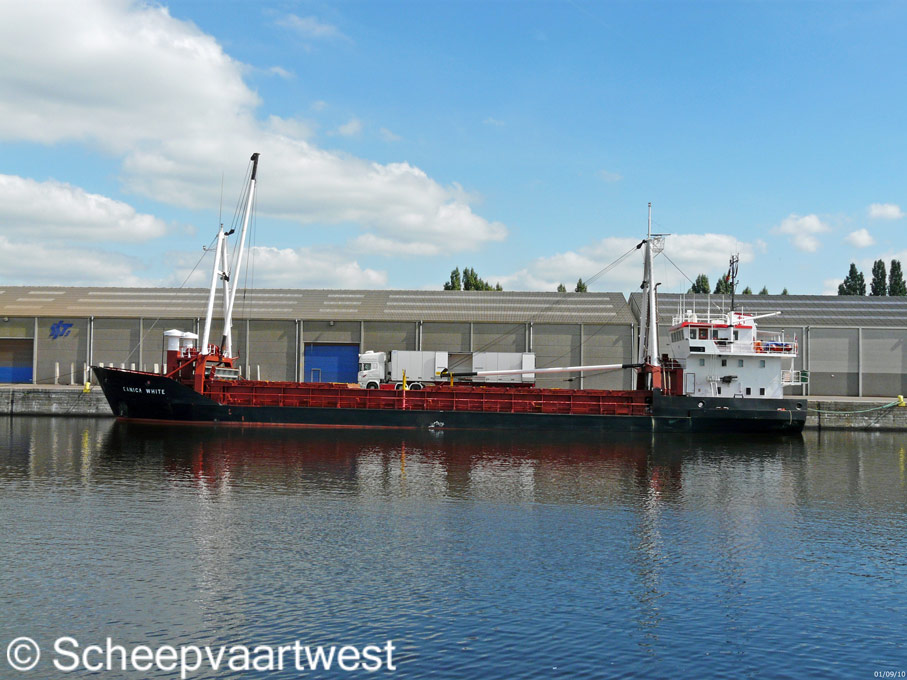

Danica White 05
Brugge, Belgium 01 September 2010

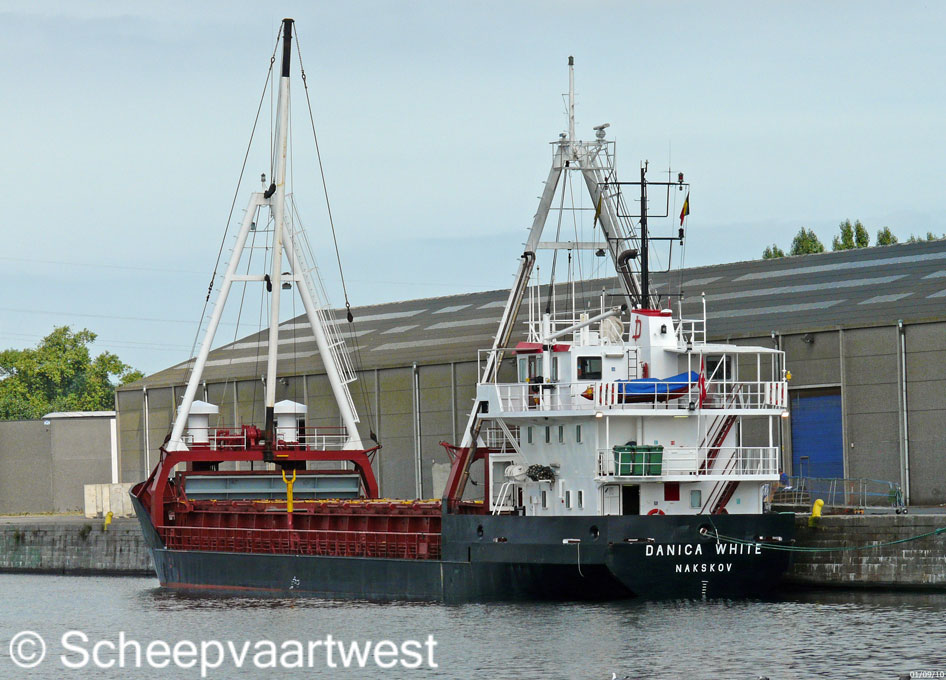

Danica White 02
Brugge 01/09/10



Name

DANICA WHITE

Type

General cargo

Closed shelter decker

IMO-number

8401157

Call sign

OXMG2

Flag

Denmark

Port of registry

Nakskov

GT

997 t

DWT

Summer 1.616 t

NT

583 t

Number of 20ft containers

49

Length

61,55 m overall

57,20 m between perpendiculars

Breadth

10,20 m moulded

Draught

Fully loaded summer: 4,60 m

Freeboard

1.109 mm

Depth

To upper deck: 5,60 m
To main deck: 2,95 m

Speed

11,0 knots

Built

1985

Date of completion

03.08.1985

Builder

Sakskobing Maskinfabrik & Skibsvaerft
Sakskobing
Denmark

Yard number

34

Hull material

Steel

Hull type

Single hull

Watertight compartments

5

Continuous decks

2

Main engine

1x Callesen type 427 FOTK 810 HK - 4 stroke 6 cylinder 270 x 400 mm internal combustion engine - 596 kW / 810 hp at 425 rpm

Built: 1985

Licence: Callesen, Aabenraa - Denmark

Electrical propulsion gen.

1x 44 kW

Propelling system

1x Screw propeller controllable pitch at 425 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Shaft generator

1x 37 kVA

Diesel generators

2x Mann diesel generatorsets each 90 kVA - 72 kW - 78 hp

Harbour engine

1x Mann diesel generatorset 37 kVA

Number of holds

1

Cargo capacity

Grain: 2.102 m³/ 73.520 ft³

Bale: 1.950 m³ / 68.860 ft³

Cargo hatchways

1

33,60 x 7,60 m

Max. load: 1,32 t/m²

Cargo ventilation

30 air changes per hour basis empty holds

Winches/ derricks

Derricks work topping / swinging
2x derricks each one up-to 5,0 t

Deck strength

Tank top - steel: 5,2 t/m²
Tween deck - steel: 2,30t/m²
Main deck - MacGregor steel: 1,32 t/m²

Tank capacities

Fuel oil: 111,10 t
Fresh water: 28,80 t
Ballast water: 494,90 t

Crew

8

Owner

Partrederiet Invest VI
Fredericiagade 57
1310 København K
Denmark
