| Gent, Belgium 20 October 2012 |
 |
| Gent 20/10/12 |
|
Name |

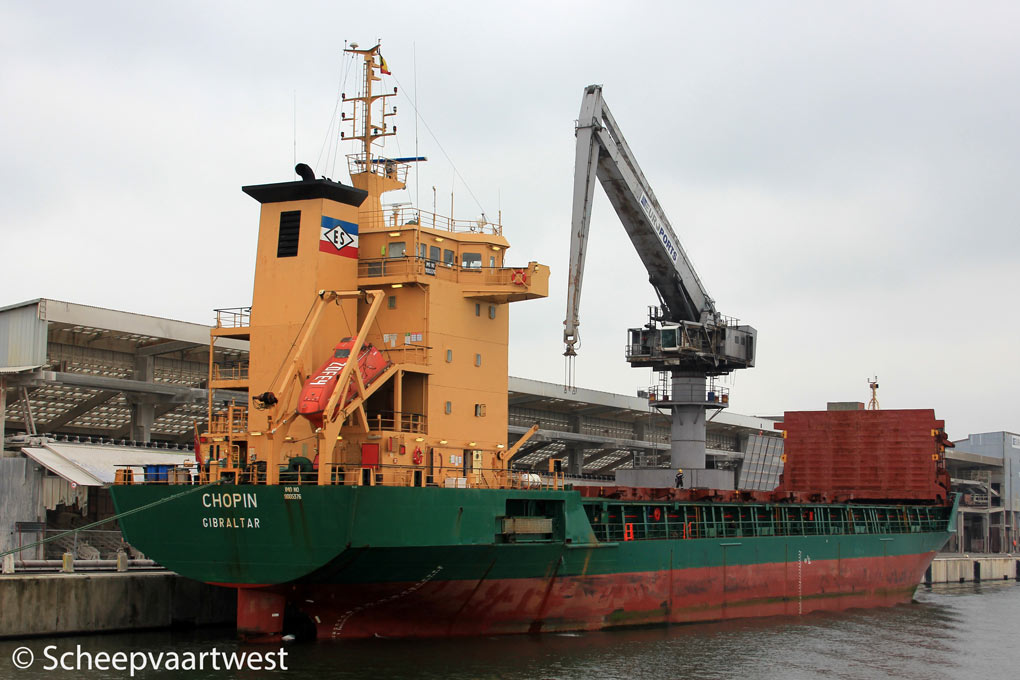

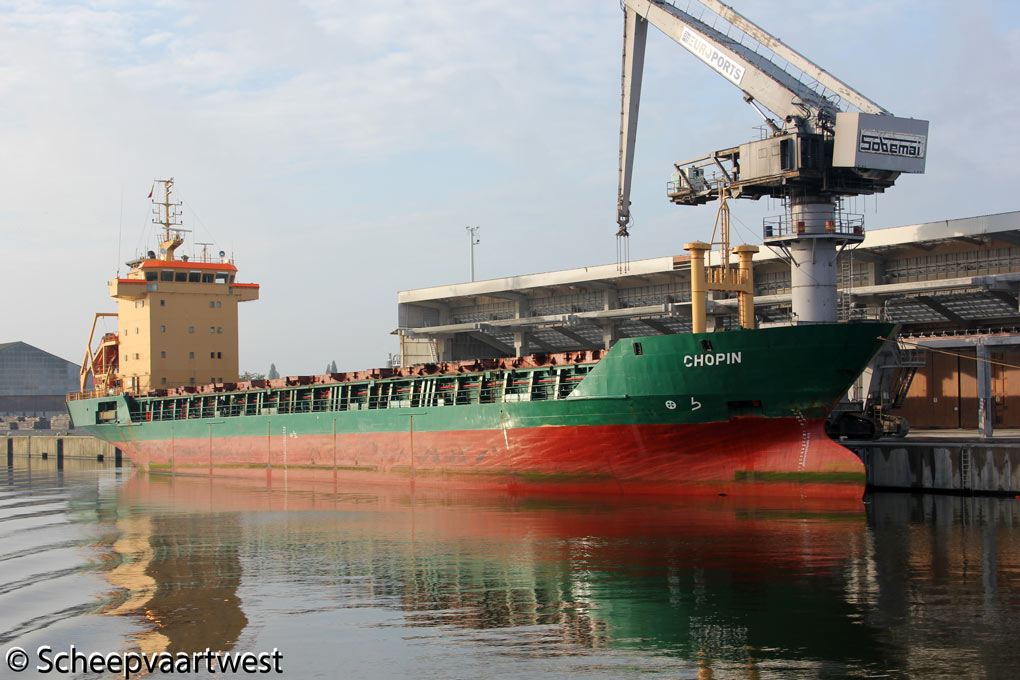

CHOPIN |
|
Previous names |
1992 Christina 1992 - 06.1922 Chopin 06.1992 - 10.1993 Ville D'Autan 10.1993 - 1997 Chopin 1997 - 07.2002 Jamtland 07.2002 - 01.2003 Chopin 01.2003 - 01.2006 Jamtland 01.2006 - 01.2010 Chopin 01.2010 - 09.2010 Jamtland 09.2010 - 11.2010 Chopin 11.2010 - 05.2012 Jamtland |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9005376 |
|
Call sign |
ZDFE4 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
4.071 t |
|
DWT |
5.697 t |
|
NT |
2.170 t |
|
Number of 20ft containers |
310 |
|
Length |
104,40 m overall 96,32 m between perpendiculars 96,59 m registered |
|
Breadth |
16,20 m registered |
|
Draught |
6,40 m |
|
Depth |
8,00 m to main deck |
|
Speed |
14,5 knots |
|
Built |
1992 |
|
Keel laid |
25.01.1991 |
|
Launch date |
07.1991 |
|
Date of completion |
20.05.1992 |
|
Builder |
Brodogradiliste Kraljevica d.d. (Jadraubrod) |
|
Yard number |
489 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8R32D - 4 stroke 8 cylinder 320 x 350 mm diesel engine - 3.000 kW at 750 rpm Year of manufacture: 1991 Manufacturer: Wärtsilä Finland Oy |
|
Propellers |
1x Wichmann controllable pitch propeller - aft at 170 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 30,0 m² Year of manufacture: 2006 Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production |
|
Electric installations |
2x Plants 380/220 V - 220 kVA 1x Plant 380 V - 680 kVA 1x Plant 380 V - 75 kVA |
|
Shaft generator |
1x Siemens type S8114 - 958 kVA - 3x 380 Volt, 50 Hz |
|
Generators |
2x Scania-Vabis diesel type 1150 M20T engines each 195 kW at 1.500 rpm each with 2x Siemens generators type ADB 804 each 220 kVA at 1.500 rpm - 3x 380 Volt, 50 Hz each |
|
Emergency generator |
1x Diesel generatorset 75 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres, 30,0 bar 1x Receiver 500 litres - 8,0 bar |
|
Bow thruster |
1x BRUNVOLL transverse thruster - 300 kW, forward |
|
Number of holds |
1 |
|
Number of hatches |
1 Dimensions: 63,70 x 13,00 m |
|
Hatch cover type |
MacGregor-Navire (hydraulic folding) |
|
Cargo capacity |
Grain & bales: 6.895 m³ |
|
Fuel capacity |
546 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m |
|
Manager |
Reederei Erwin Strahlmann e.K. |
|
Operator |
Reederei Erwin Strahlmann |
|
Registered owner |
Erwin Strahlmann |
|
Last update |
01.02.2013 |
