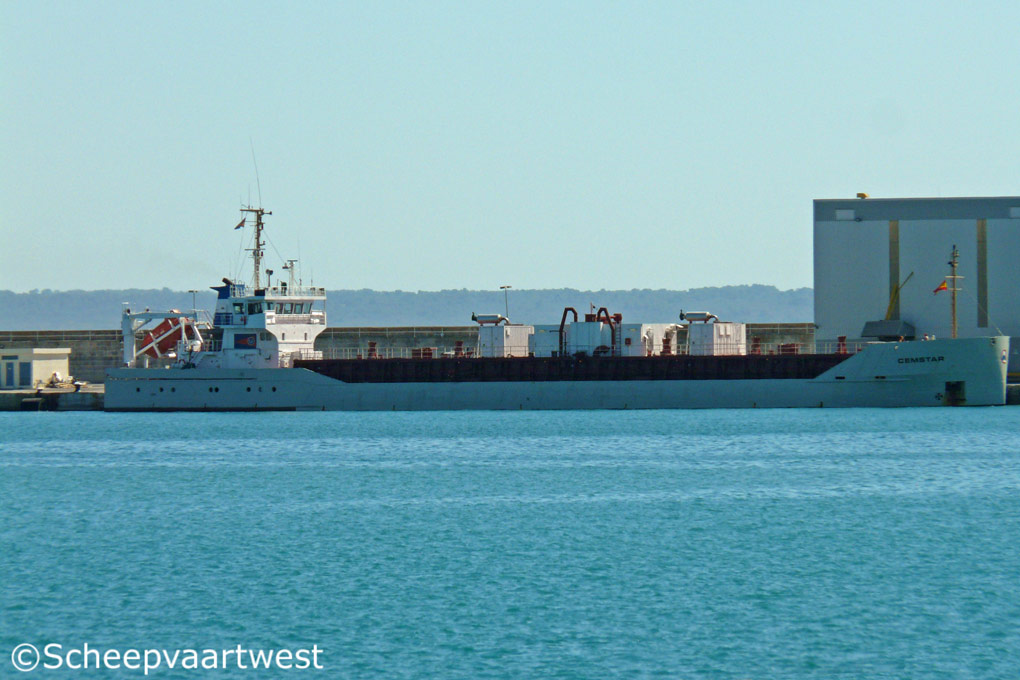

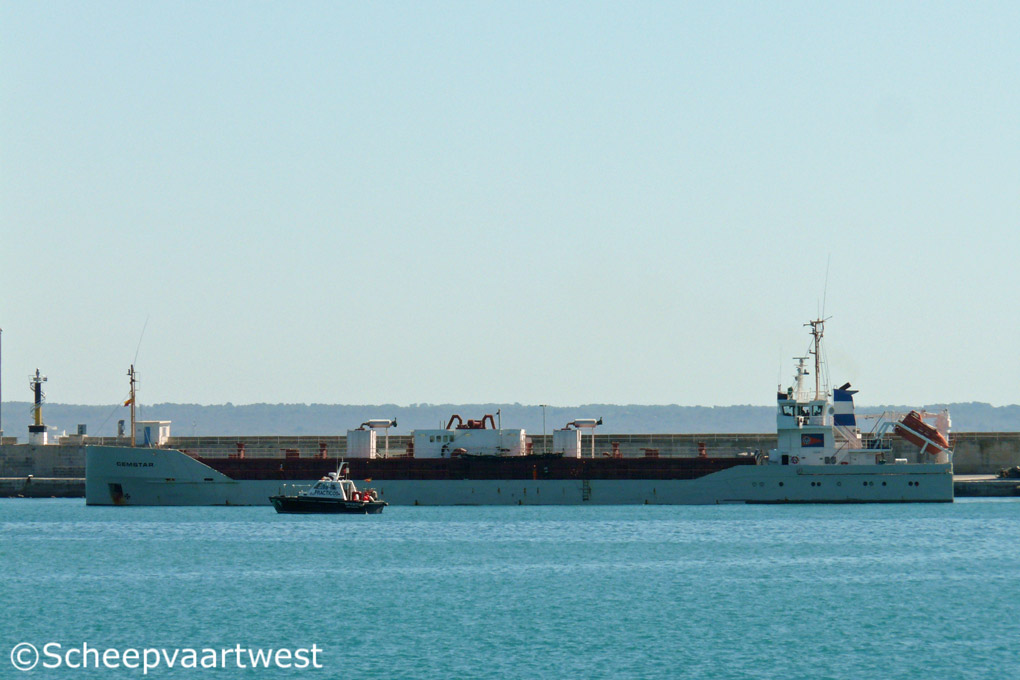

| Palma De Mallorca, Spain 16 September 2012 |
 |
| Palma De Mallorca 16/09/12 |
|
Name |
CEMSTAR |
|
Type |
General cargo ship |
|
IMO-number |
8903090 |
|
Call sign |
DIDS |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
2.625 t |
|
DWT |
3.280 t |
|
NT |
803 t |
|
Number of 20ft containers |
153 |
|
Length |
87,92 m overall 86,63 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,00 m |
|
Air draft |
24,50 m |
|
Forecastle |
8,63 m |
|
Poop |
19,50 m |
|
Freeboard |
2.459 mm |
|
Depth |
7,45 m moulded |
|
Speed |
11,0 knots |
|
Built |
1989 08.2001 Ship converted - Pomerania Shipyard Ltd., Szczecin - Poland 08.2012 Ship converted |
|
Keel laid |
30.03.1989 |
|
Launch date |
15.11.1989 |
|
Date of completion |
12.1989 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
998 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
3 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 6 R 32 BG - 4 stroke 6 cylinder 320 x 350 mm diesel engine - 1.885 kW at 720 rpm Year of manufacture: 1989 Manufacturer: Oy Wärtsilä Ab |
|
Propellers |
1x Controllable pitch propeller - aft at 201 rpm |
|
Electric installation |
2x Plants each 400/220 V - 120 kVA 1x Plant 400 V - 500 kVA 1x Plant 400 V - 25 kVA |
|
Shaft generator |
1x 500 kVA |
|
Generators |
2x Main diesel generatorsets each 120 kVA |
|
Emergency generator |
1x Diesel generatorset 25 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 165 kW, forward |
|
Number of holds |
2 Hold 1: 1.815 m³ Hold 2: 1.824 m³ |
|
Fuel oil |
140 m³ |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m |
|
Manager |
Brise Bereederungs GmbH & Co. KG |
|
Registered owner |
MS "PACIFIC STAR" Schiffahrtsgesellschaft mbH & Co. KG |
