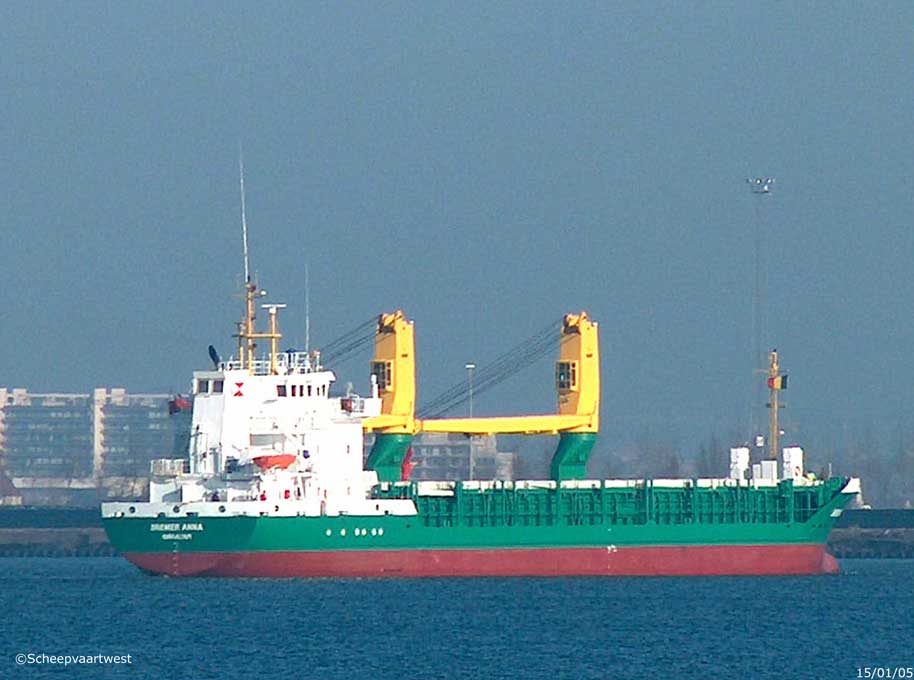

| Zeebrugge 15 January 2005 |
|
Name |
BREMER ANNA |
|
Previous name |
2003 - 2003 Anna Braren |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers |
|
IMO-number |
9265665 |
|
Call sign |
ZDGC2 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
3.152 |
|
DWT |
Summer: 4.352 t |
|
DWCC |
4.200 t |
|
NT |
1.788 |
|
Number of 20ft containers |
218 |
|
Length |
89,98 m overall 84,98 m between perpendiculars |
|
Breadth |
15,20 m extreme |
|
Draught |
Summer: 5,32 m |
|
Air draft |
19,50 m fully laden 21,50 m in ballast |
|
Forecastle |
8,37 m |
|
Quarterdeck |
14,99 m |
|
Freeboard |
1.296 mm |
|
Depth |
6,60 m moulded |
|
Speed |
12,0 knots |
|
Build |
2003 |
|
Keel |
13/06/2002 |
|
Launch date |
08/11/2003 |
|
Date of completion |
09/12/2003 |
|
Builder casco |
Societatea Comerciala Severnav S.A Severnav Shipyard Severin Romania |
|
Builder completed |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
625 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm Combustion engine 1.850 kW / 2.515 hp Build: 2003 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Electric installations |
1x 380/220 V - 1.095 kVA 1x 380 V - 155 kVA |
|
Generators |
1x Main diesel generatorset 435 kVA 2x Main diesel generatorsets each 330 kVA |
|
Emergency generator |
1x Diesel generatorset 155 kVA |
|
Bow thruster |
1x Transverse thruster Jastram - 300 kW, forward |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Number of holds |
1x Boxshaped 59,25 x 12,65 x 8,24 m |
|
Cargo hold capacity |
Bale & grain: 5.795 m³ |
|
Timber |
5.800 m³ |
|
Hold ventilation |
Electrical |
|
Number of hatches |
1 57,00 x 12,65 m |
|
Hatch cover type |
Hydraulic folding |
|
Deck area |
1.200 m² |
|
Maw permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,6 t/m² |
|
Lifting equipment |
2x Deck cranes - SWL 36,0 t each |
|
Tank capacities |
Ballast: 2.121 m³ Fuel oil: 347 m³ |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m |
|
Crew size |
8 |
|
Manager |
Rörd Braren Bereederungs-GmbH & Co. KG Am Deich 31 25377 Kollmar Federal Republic of Germany |
|
Owner |
Rosberg Marine Ltd. 5, Library Ramp Haven Court Gibraltar |
|
Crew |
8 |
|
Renamed |
02/2018 Millerntor Germany - Call sign: DDHP2
|
|
Latest data adjustment |
02 March 2026 |
