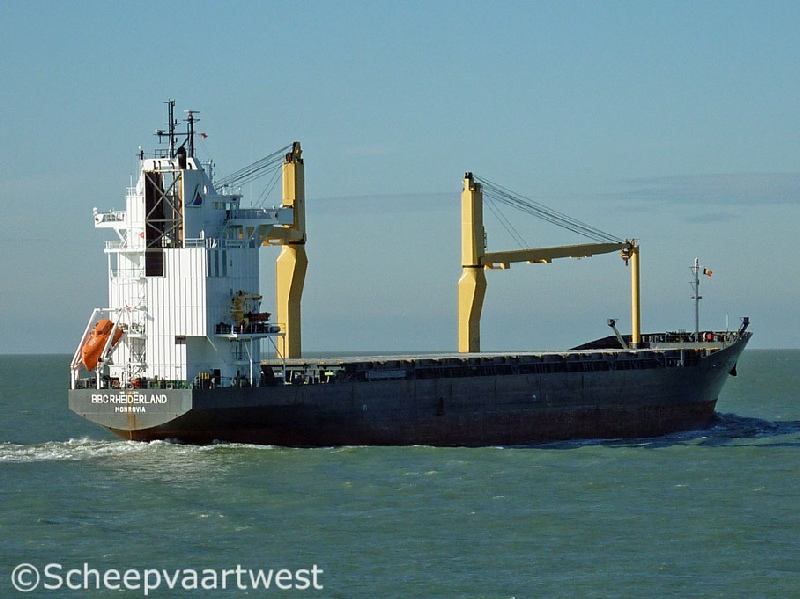

| Westerschelde 04 November 2011 |
|
Name |
BBC RHEIDERLAND |
|
Previous names |
2000 - 21.03.2002 Paul Oldendorff 21.03.2002 - 28.08.2008 BBC Rheiderland 28.08.2008 - 23.08.2007 Delmas Ghana |
|
Type |
Multi-Purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9202041 |
|
Official number |
90680 |
|
Call sign |
A8CP8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
13.066 t |
|
DWT |
20.144 t |
|
NT |
6.901 t |
|
Number of 20ft containers |
1.302 |
|
Containers capacity 14 t |
923 |
|
Reefer plug |
63 on deck |
|
Length |
153,22 m overall 146,99 m between perpendiculars |
|
Breadth |
23,60 m registered |
|
Draught |
Summer: 9,727 m |
|
Forecastle |
11,50 m |
|
Depth |
13,50 m moulded |
|
Speed |
16,6 knots |
|
Keel laid |
12.07.1999 |
|
Launch date |
02.10.1999 |
|
Date of completion |
01.2000 |
|
Builder |
Flensburger Schiffbau-Gesellschaft mbH & Co. KG |
|
Yard number |
704 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Mitshubishi 6UEC50LS II - 2 stroke 6 cylinder 500 x 1.950 mm diesel engine - 8.250 kW at 124 rpm Year of manufacture: 1999 Manufacturer: Mitsubishi Heavy Industries, Ltd. |
|
Propeller |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface: 22,0 m² 1x Exhaust gas heated - 7,0 bar Heating surface: 152,0 m² Year of manufacture: 1999 Manufacturer: Anders Halvorsen AS |
|
Electric installations |
2x Plant 440/220 V - 765 kVA 1x Plant 440 V - 375 kVA |
|
Generators |
2x Yanmar 6N18 AL-EN diesel engines at 900 rpm with 2 generators each 765 kVA 1x Cummins NTA 855-G3 diesel engine 358 kW at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 375 kVA / 300 kW |
|
Compressed air receivers |
2x Receivers each 3.400 litres - 30,0 bar |
|
Number of holds |
5 Hold 1: 14,04 x 8,00 x 10,65 m, boxshaped |
|
Number of hatches |
5 Hatch 1: 14,04 x 8,00 m |
|
Hatch cover type |
MacGregor water tight lift away |
|
Cargo capacity |
Grain:24.731 m³ Bales: 24.369 m³ |
|
Strength |
On deck: 2,0 t/m² Maindeck: 3,0 t/m² Tanktop: 21,0 t/m² |
|
Tank capacities |
Fuel oil: 1.065,3 m³ / 1.033,6 t Ballast water: 6.166 m³ / 6.280 t Fresh water: 42 m³ Diesel oil: 115,4 m³ / 99 t |
|
Anchor Equipment |
3x Anchors weight each 6.450 kg Chain length: 605,00 m |
|
Hold ventilation |
6x Air-changes per hour in hold no. 2 |
|
Accommodation |
21 Persons |
|
Gear |
2x Cranes - each SWL 60,0 t, portside |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Registration owner |
Briese Schiffahrts GmbH & Co. KG MS "RHEIDERLAND" |
