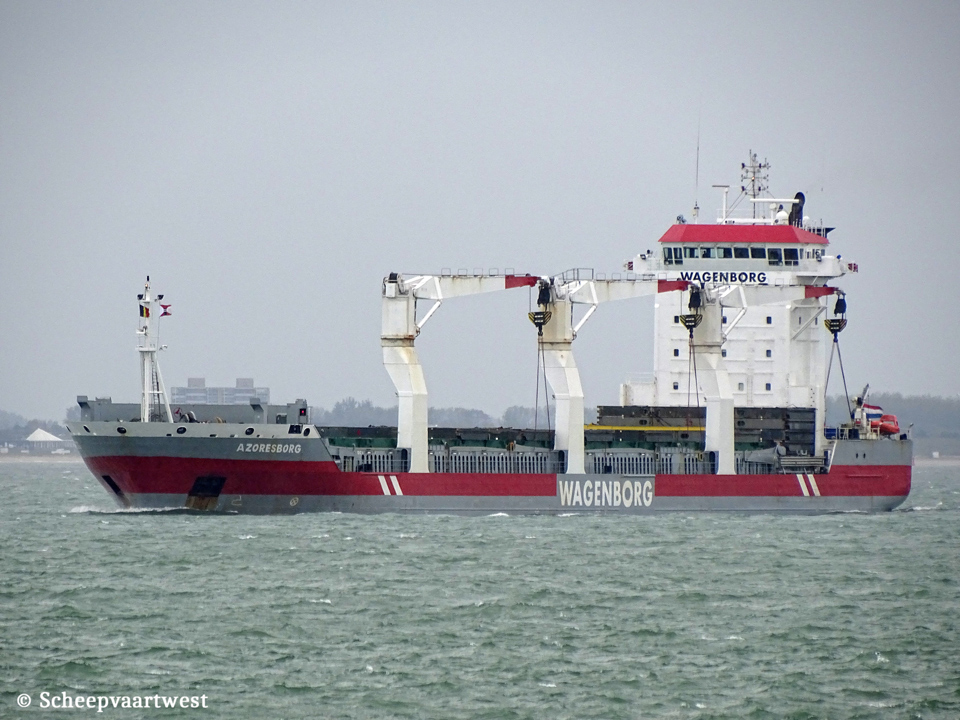

| Westerschelde 11 Octoner 2019 |
 |
 |
 |
 |
 |
||||

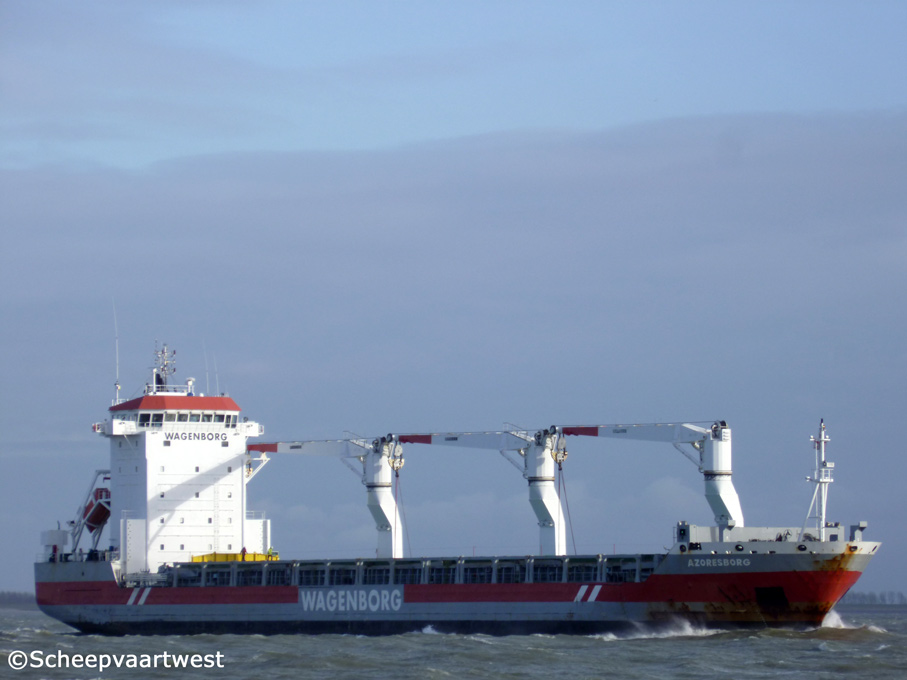

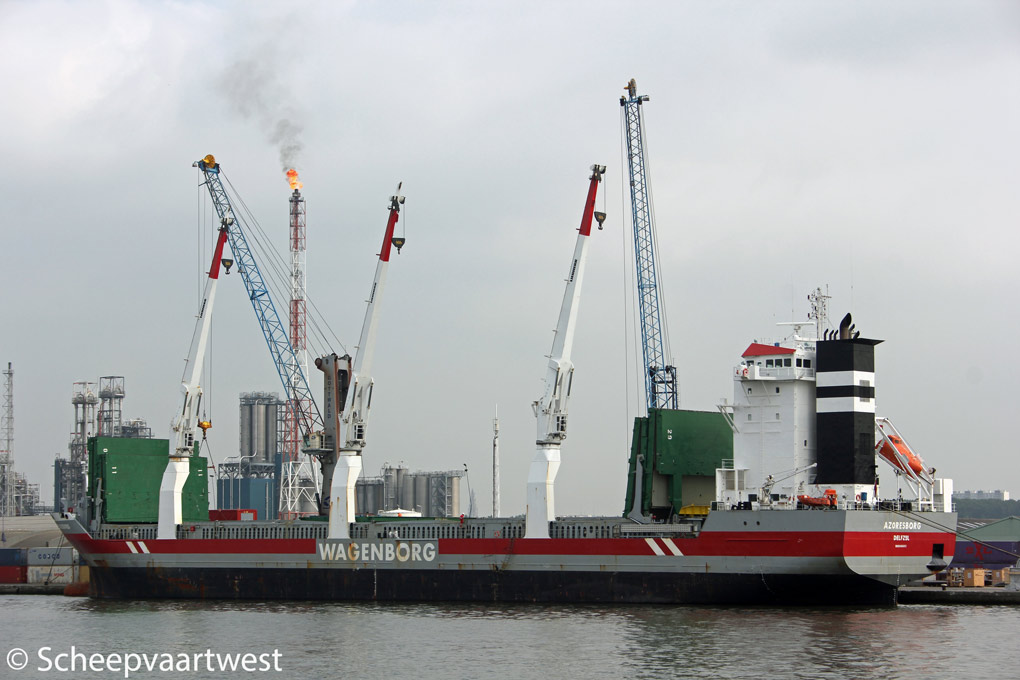

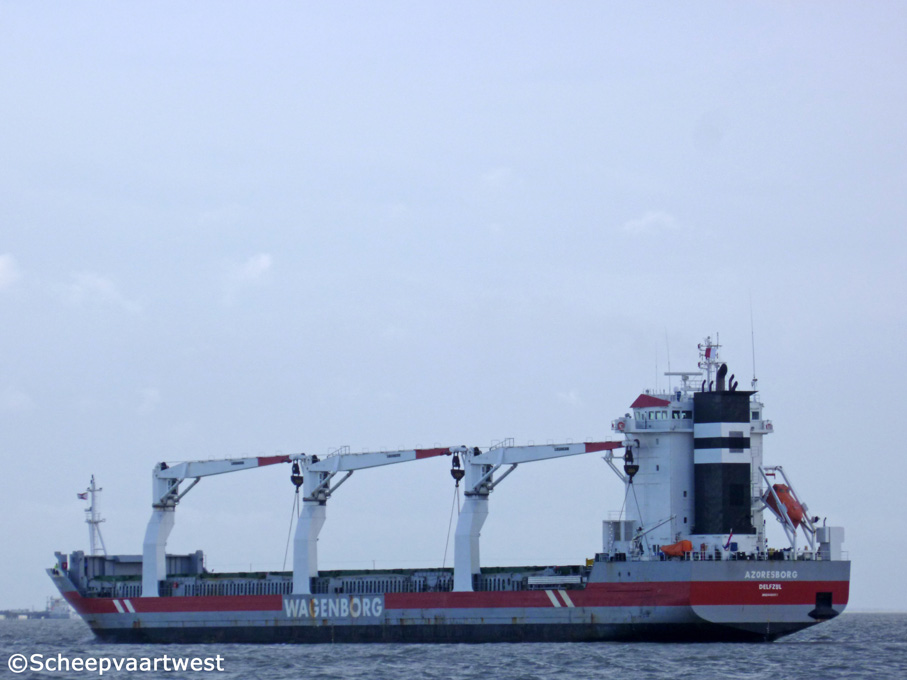

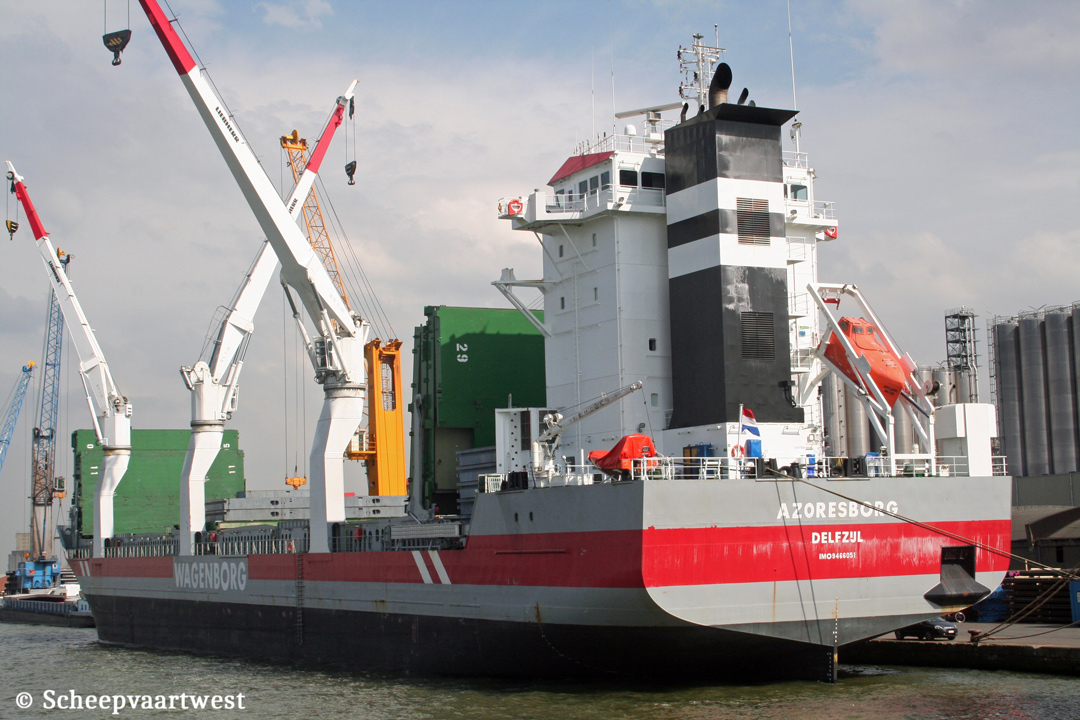

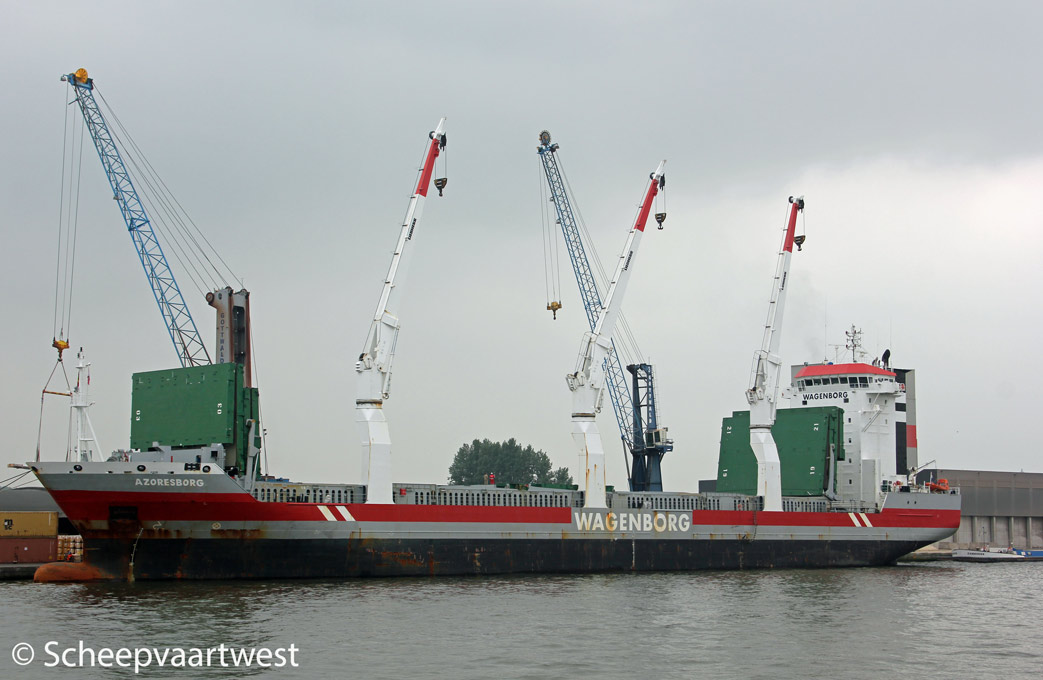

| Westerschelde 08/02/14 | Westerschelde 08/02/14 | Antwerpen 05/07/13 | Antwerpen 05/07/13 | Antwerpen 20/05/11 |
|
Name |
AZORESBORG |
|
Type |
Multi-purpose dry cargo carrier - Open hatch fully box |
|
IMO-number |
9466051 |
|
Call sign |
PBPU |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
11.864 t |
|
DWT |
17.323 t |
|
NT |
5.650 t |
|
Number of 20ft containers |
959 |
|
Reefer containers |
60 |
|
Length |
142,89 m over all 133,36 m between perpendiculars |
|
Breadth |
21,53 m extreme |
|
Draught |
Max: 9,69 m |
|
DWCC |
Summer: 15.750 t |
|
Air draft |
35,40 m in ballast |
|
Depth |
13,30 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,5 knots |
|
Built |
2010 |
|
Keel laid |
23/12/2008 |
|
Launch date |
30/1282009 |
|
Delivery date |
30/03/2010 |
|
Builder |
Hudong Zhonghua Shipbuilding Group Co., Ltd/ Shanghai China |
|
Yard number |
1572A |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä 6L46F - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 7.500 kW / 10.197 hp at 600 rpm Manufacturer: Wärtsilä Iberica SA, Bermeo - Spain |
|
Propellers |
1x Wärtsilä/Lips controllable pitch propeller - 4 Blades, diameter 4.800 mm |
|
Bow thruster |
1x 750 kW |
|
Number of holds |
2x Fully box and double skinned Hold 1: 35,80 x 17,75 x 13,50 m Hold 2: 52,10 x 17,75 x 13,50 m |
|
Cargo hold capacity |
Grain/bale: 707.633 ft³ / 19.828 m³ |
|
Hold ventilation |
12x Air changes per hour basis empty holds Both holds fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 35,80 x 17,75 m Hatch 2: 52,10 x 17,75 m |
|
Hatch type |
MacGregor navire hydraulic steel pontoon hatches |
|
Tank capacities |
HFO: 1.448 m³ MGO: 215 m³ Water ballast: 5.490 m³ Fresh water: 280 m³ |
|
Cargo gear |
3x Liebherr cranes - SWL 60,0 t each |
|
ISM & commercial manager |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Owner |
Scheepvaartonderneming Azoresborg BV Care of Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Latest data adjustment |
21 January 2022 |
