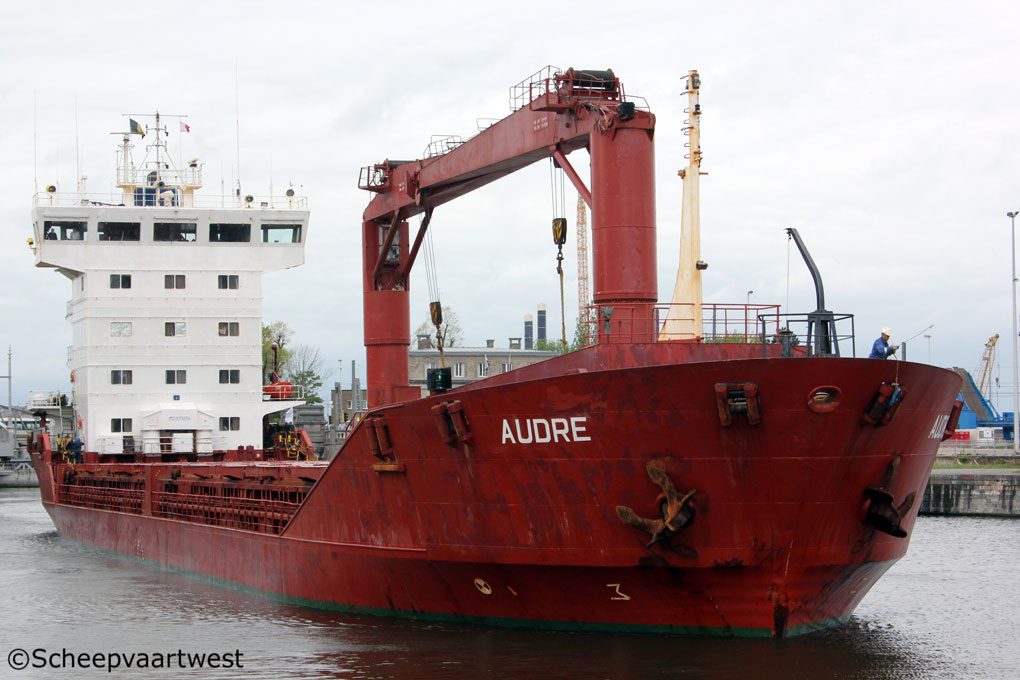

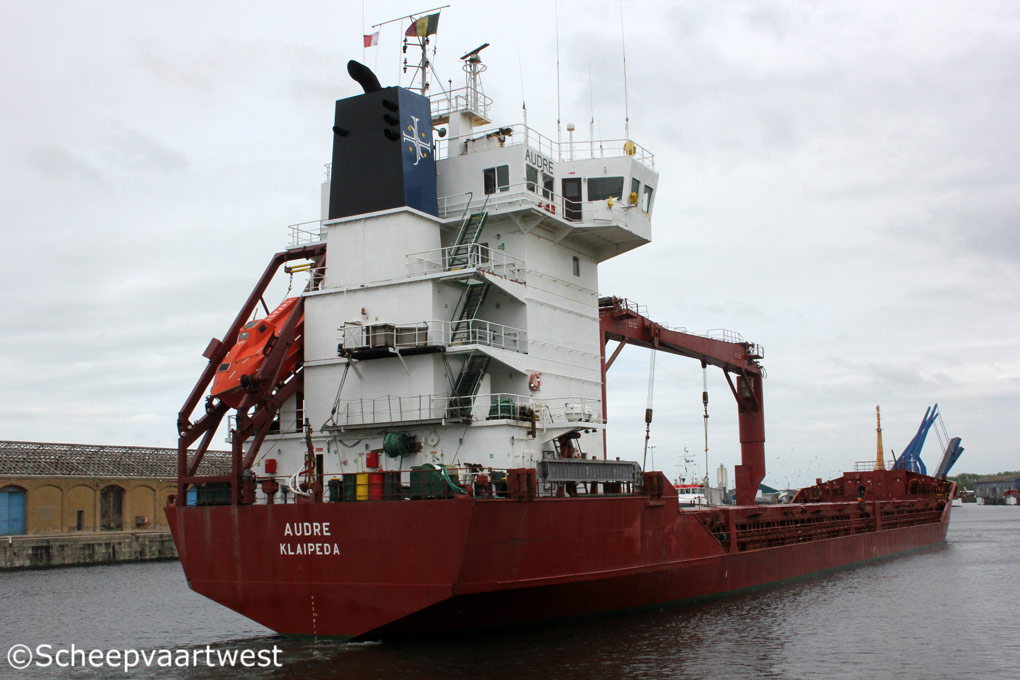

Audre - IMO 9113056

Name

AUDRE

Type

General cargo - Vessel equipped for carriage of containers

Box-shaped, double-skinned open hatch single-decker

Function

Carriage of dangerous goods, refrigerated cargo

IMO-number

9113056

Call sign

LYJV

Flag

Lithuania

Port of registry

Klaipeda

GT

3.891 t registered

DWT

Summer:5.820 t

NT

2.533 t registered

Number of 20ft containers

350

Length

102,83 m overall

97,20 m between perpendiculars

Breadth

15,85 m moulded

Draught

Summer: 6,54 m

Freeboard

1.562 mm

Depth

8,10 m moulded

Built

1997

Keel laid

14.05.1996

Delivery date

21.11.1997

Builder

Astilleros De Huelva
Huelva
Spain

Yard number

568

Hull material

High strength steel

Bulkheads

Non tight: 1

Watertight: 6

Main engine

1x MAN B&W 8L32/40 - 8 cylinder diesel engine - 3.520 kW

Manufacturer: MAN B&W Diesel AG

Propellers

1

Steam piping system

Oil fired auxiliary boiler

Exhaust gas boiler

Generators

2x Leroy Somer M47-1L1106/4 main generators sets each 346 kW

Bow thruster

1x 375 kW

Number of hatches

2

Hatch 1: 32,00 x 13,20 m

Hatch 2: 31,80 x 13,20 m

Hatch covers type

MacGregor folding type

Number of holds

2

Hold 1: 33,35 x 12,80 x 8,20 m

Hold 2: 32,55 x 12,80 x 8,20 m

Cargo capacity

Grain & bale:

Hold 1: 3.447 m³

Hold 2: 3.434 m³

Total: 6.881 m³ / 242.999 ft³

Tanktop strength

15 t/m²

Number of tanks

Ballast: 15

Fuel oil: 6

Waste water:3

Diesel oil: 2

Chain: 2

Hydraulic oil: 2

Lubricating oil: 2

Fresh water: 1

Sludge: 1

Tank capacities

Diesel oil 61,21 m³ / 55,09 t

Fresh water: 71,03 m³

Fuel oil: 273,37 m³ / 267,90 t

Lube oil: 34,38 m³ / 30,94 t

Tank ballast: 2.082,68 m³ / 2.134,75 t

Cargo hold ventilation

6 air changes per hour

Cargo gear

2x Deck cranes Norlift CCS 950-3624 - SWL 36 t each

Portside location

Manager

Lithuanian Shipping Company
Malunininku G. 3
LT-92264 Klaipeda
Lithuania

Registered owner

Lithuanian Shipping Company
Klaipeda
Lithuania
