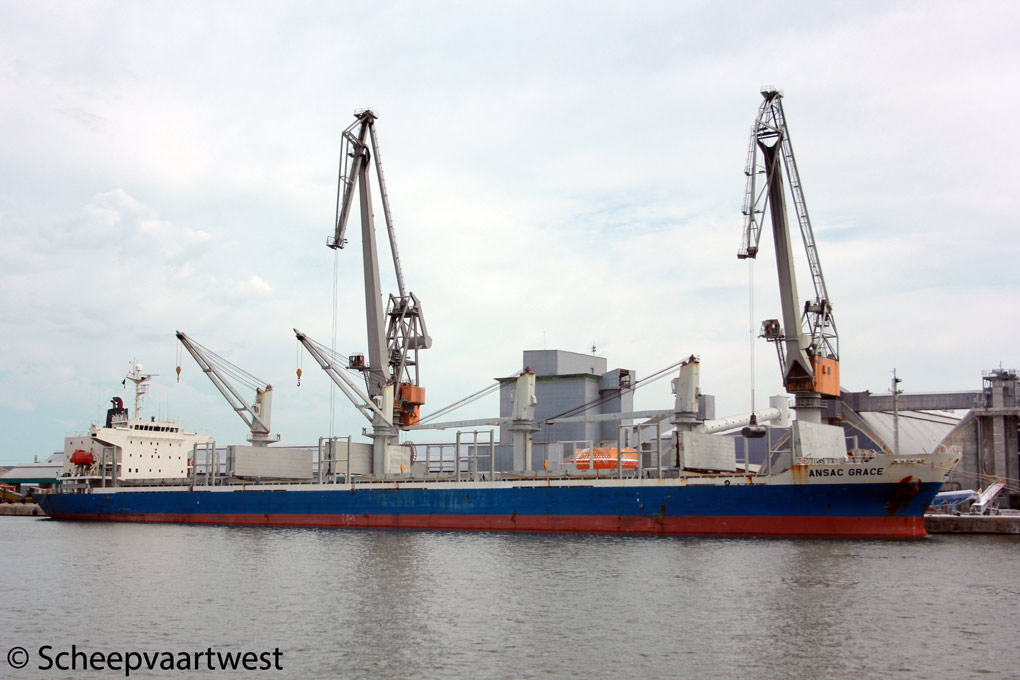

Ansac Grace 01
Antwerpen 01 August 2012



Name

ANSAC GRACE

Previous names

2005 - 07.2011 Canpotex Resurrection - Republic of panama - Pine Maritim Corp.

Type

Bulk carrier / Lumber carrier

IMO-number

9277474

Call sign

3EAW7

Flag

Republic of Panama

Port of registry

Panama City

GT

19.885 t registered

DWT

32.759 t

NT

11.140 t registered

Length

177,00 m overall

Breadth

28,00 m

Draught

10,01 m

Moulded L x B x D

168,50 x 28,40 x 14,25 m

Registered L x B x D

169,45 x 28,40 x 14,25 m

Freeboard

Summer: 4.282 mm

Depth

14,25 m moulded

Speed

Trial: 16,2 knots

Service: 14,0 knots

Built

2005

Keel laid

13.12.2004

Launch date

08.02.2005

Date of completion

17.05.2005

Builder

Kanda Shipbuilding Co., Ltd.
Kawajiri
Japan

Yard number

458

Hull material

Steel

Main engine

1x Mitsubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine - 6.620 kW at 125,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propellers

1x Fixed propeller

Propeller shaft

1x Oil lubrication shaft without monitoring device

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 1,99 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Diesel generatorsets each 1.200 kVA

Number of holds

5

Cargo capacity

Bales: 40.896 m³

Gain: 42.857 m³

Tank capacities

Fuel oil: 1.566 m³

Fresh water: 211 m³

Water ballast: 11.787 m³

Cargo gear

4x Cranes - SWL 30,5 t each

Manager

Sincere Industrial Corporation

Owner

Sincere Industrial
Taipei
Taiwan

Registered owner

Gamma Venture Maritime Corporation
c/o Sincere Industrial Corp, 18th Floor
76, Dunhua S Road, Section 2, Da-an District
Taipei City, 10683
Chinese Taipei (Taiwan)

Last update

10/01/2013
