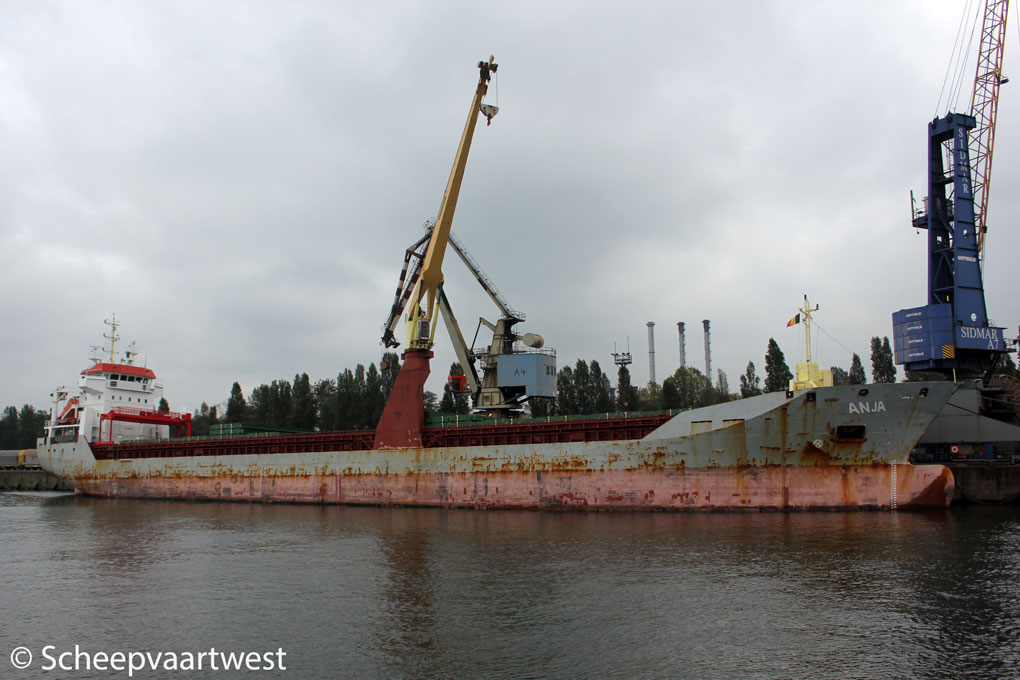

Anja IMO 9205706 01
Zelzate 20 October 2012

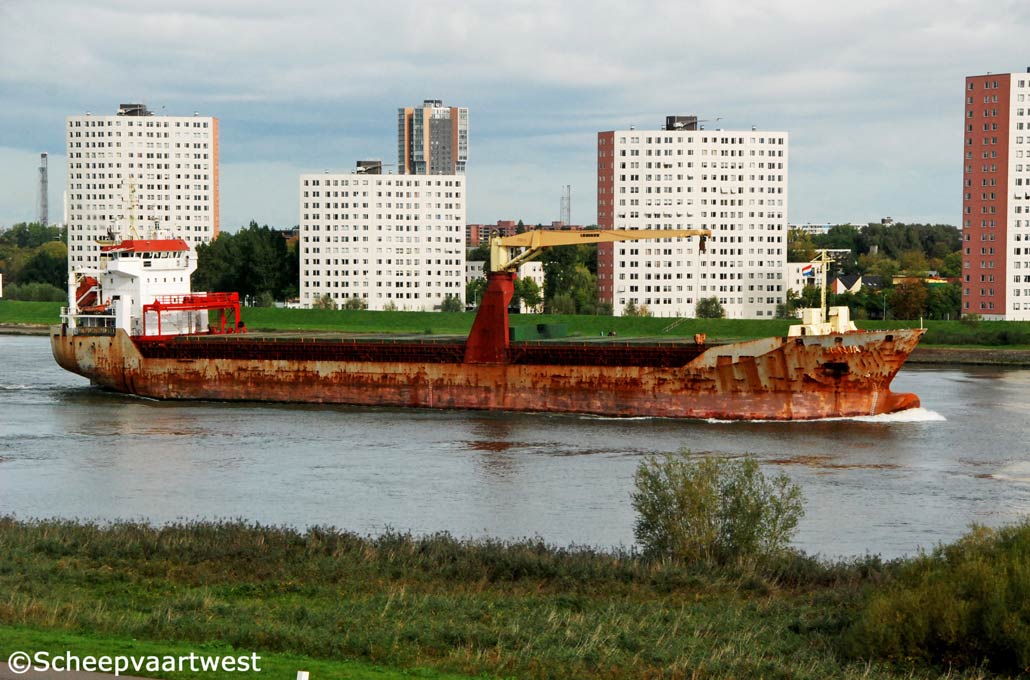

Anja IMO 9205706 02
Spijkenisse 05/10/14



Name

ANJA

Previous names

2000 Sabina

2000 - 11.2001 Anja

2001 - 04.2002 TMC Brazil

Type

Multi-purpose vessel for transport of bulk, steel coils, containers, forest products, general cargoes, dangerous

cargoes, strengthened for heavy cargo

IMO-number

9205706

Call sign

PJLT

Flag

Curaçao

Port of registry

Willemstad

Previous flags

Antigua & Barbuda, St. John's - Call sign: V2LI

GT

5.968 t

DWT

9.218 t

NT

3.422 t

Number of 20ft containers

In hold: 256

On deck: 180

Total: 436

Container capacity 14t

In hold: 256

On deck: 48

Total: 304

Reefer plug

60

Length

127,87 m overall

121,66 m registered

Breadth

15,85 m registered

Draught

Summer: 7,45 m

Depth

9,75 m moulded

Speed

13,0 knots

Built

2000

Keel laid

26.06.1998

Launch date

29.07.1999

Date of completion

08.01.2000

Builder

Damen Shipyards Hoogezand
Scheepswervenweg 13
9007 PX Hoogezand
The Netherlands

Yard number

926

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

5

Movable bulkhead

2 Moveable bulkheads, 13 store positions

Continuous decks

2

Main engine

1x MaK 9 M 32 - 4 stroke 8 cylinder 320 x 480 mm diesel engine - 4.320 kW at 600 rpm

Year of manufacture: 1999

Manufacturer: MaK Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 128 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 13,0 bar

1x Thermal oil heater, oil fired - 13,0 bar

Year of manufacture: 1999

Manufacturer: Wiesloch Marine & Industries B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

2x Plants 380/220 V - 300 kVA

1x Plant 380 V - 850 kVA

1x Plant 380 V - 120 kVA

Shaft generator

1x 850 kVA

Generators

2x Main diesel generatorsets each 300 kVA

Emergency & Harbour gen.

1x Diesel generatorset 120 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Bow thruster - 465 kW, forward

Number of holds

2x Boxtype

Dimensions:

Hold 1: 38,22 x 13,15 x 10,65 m

Hold 2: 51,33 x 13,15 x 10,65 m

Number of hatches

2x Steel hatch covers, pontoon type

Holds capacity

Grain & Bales: 429.427 ft³

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Cargo gear

1x Liebherr cargo crane - SWL 60 t at 16,00 m - 40 t at 26,00 m - 30 t at 28,40 m

Manager

Intership Verwaltungsgesellschaft mbH
Boschstr. 15
49733 Haren/Ems
Federal Republic of Germany

Registered owner

MS "ANJA" Schiffahrts GmbH & Co. Reederei KG
Boschstr. 15
49733 Haren
Federal Republic of Germany

Renamed

04.2017 Maya S

Moldova, Giurgiulesti - Call sign: ER2653

Latest data adjustment

05 June 2017
