| Westerschelde 29 June 2017 |
|
Name |

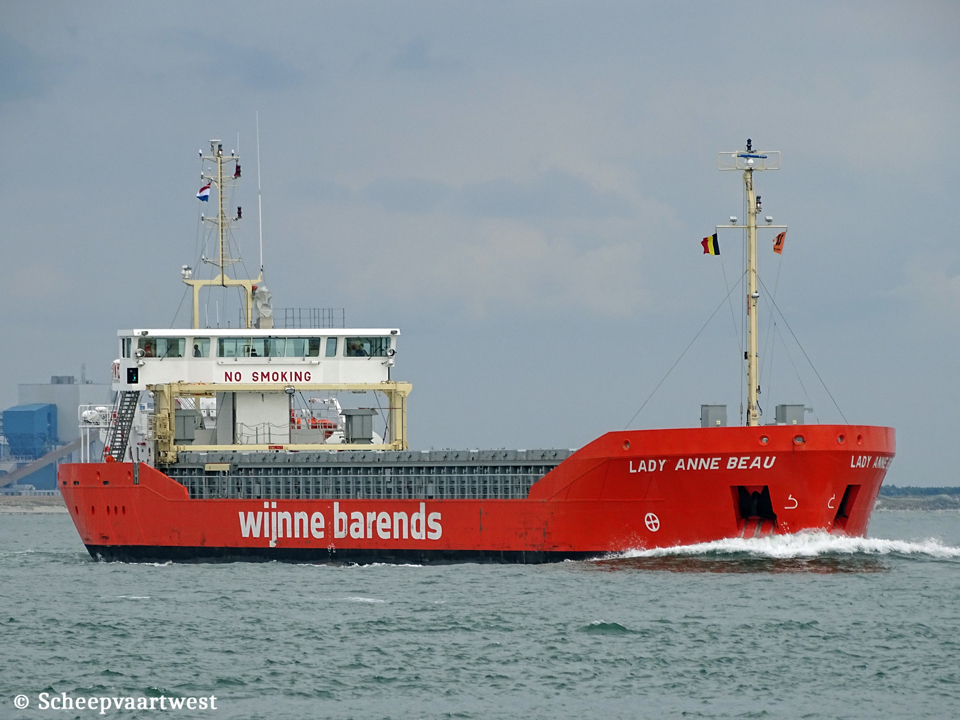

LADY ANNE BEAU |
|
Type |
General cargo ship - Strengthened for heavy cargoes - Container cargoes on hatch covers |
|
IMO-number |
9760407 |
|
Call sign |
PBPM |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.544 |
|
DWT |
3.692 t |
|
DWCC |
Summer/winter: 3.550 t |
|
NT |
1.216 |
|
Number of 20ft containers |
16 |
|
Length |
88,00 m overall 84,98 m between perpendiculars |
|
Breadth |
13,35 m moulded 13,39 m extreme |
|
Draught |
Summer: 4,91 m |
|
Air draft |
8,50 m in ballast |
|
Depth |
7,05 m moulded |
|
Speed |
10,0 knots |
|
Build |
2016 |
|
Keel laid |
16/12/2015 |
|
Launch date |
17/06/2016 |
|
Date of completion |
23/09/2016 |
|
Builder |
GS Yard B.V. (Groningen Shipyards B.V) Waterhuizen The Netherlands |
|
Yard number |
161 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
4x Caterpillar 3508C Dita - 4 stroke single acting 8 cylinder 170 x 190 mm combustion engine 746 kW / 1.014 bhp at 1.600 rpm |
|
Gearbox |
1x Reintjes WAF 572 L - Reduction 7,474:1 |
|
Propellers |
1 |
|
Generators |
1x Caterpillar C6.6 Acert DITA diesel generatorset 125 ekW/ 156 kVA 1x Scania DI-12-59M diesel generatorset 424 kW |
|
Emergency generator |
1x Caterpillar C4.4 DITA diesel generatorset 65 ekW / 81 kVA |
|
Bow thruster |
1x Veth Jet, type 4-K-1000V - 265 kW at 1.800 rpm |
|
Number of holds |
1 62,30 x 10,80 x 7,73 m |
|
Cargo hold capacity |
Grain/bale: 182.000 ft³ |
|
Timber capacity |
5.600 m³ |
|
Number of hatches |
1 62,30 x 11,07 m |
|
Max permitted loads |
Tanktop: 15,0 t/m² |
|
Cargo gear |
1x Gantry crane - SWL 14,0 t |
|
ISM & commercial manager |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V. Handelskaai Oost 5 9934 AR Delfzijl The Netherlands |
|
Registered owner |
Beheermaatschappij Lady Anne Beau B.V. Delfzijl The Netherlands |
|
Latest data adjustment |
17 January 2025 |
