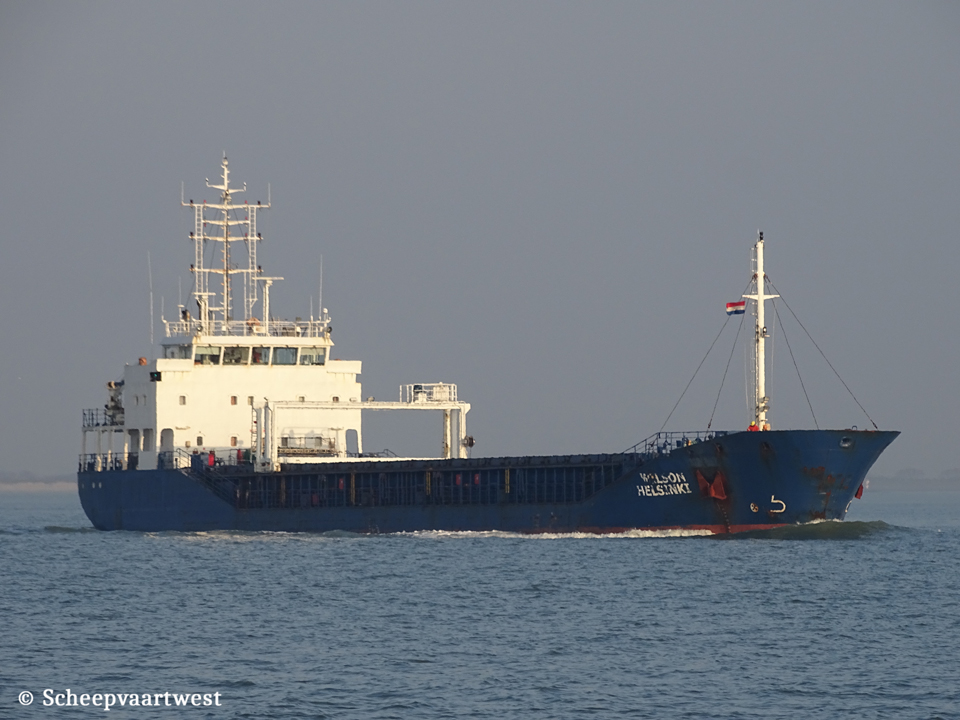

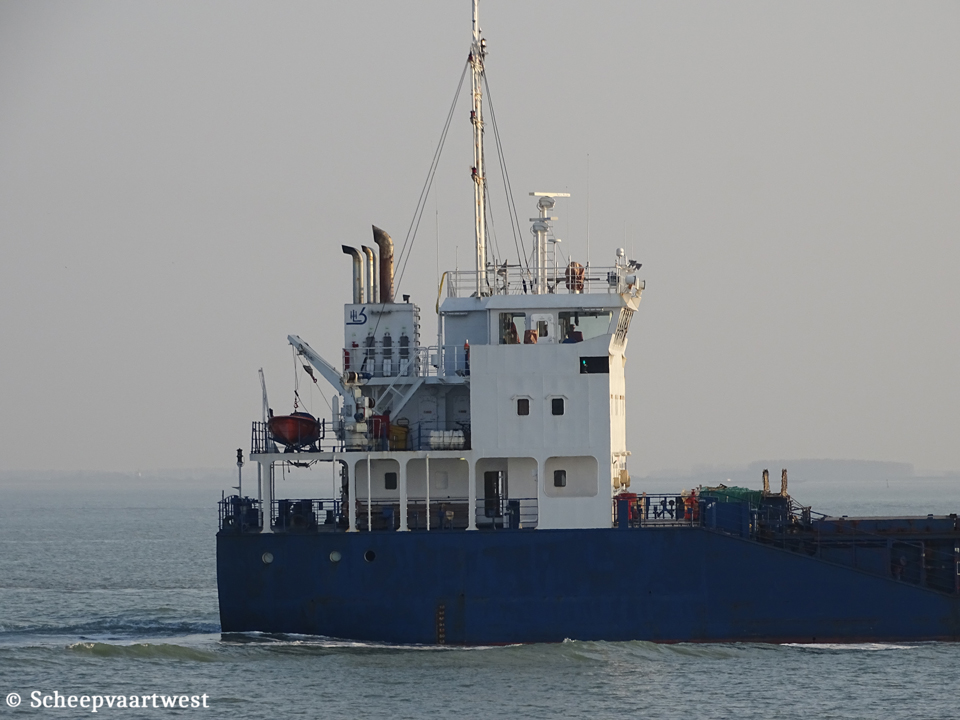

| Westerschelde 16 March 2017 |
 |
|
| Westerschelde 16/03/17 | |
|
Name |
WILSON HELSINKI |
|
Previous names |
12/2009 - 04/2015 Dmitry Varvarin 04/2015 - 2016 Konstantin |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Gearless singledecker |
|
IMO-number |
9518402 |
|
Call sign |
V2GR5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.997 |
|
DWT |
4.685 t |
|
NT |
1.598 |
|
Number of 20ft containers |
In hold: 102 On hatches: 36 Total: 138 |
|
Length |
89,99 m overall 85,80 m between perpendiculars |
|
Breadth |
14,03 m extreme |
|
Draught |
Summer: 5,96 m Winter: 5,84 m |
|
Air draft |
25,80 m |
|
Depth |
7,15 m to main deck |
|
Speed |
Max: 11,5 knots Service: 10,0 knots |
|
Build |
2009 |
|
Keel laid |
25/12/2008 |
|
Launch date |
24/07/2009 |
|
Date of completion |
10/12/2009 |
|
Builder |
Onega Shipbuilding Yard CJSC Petrozavodsk Russia |
|
Yard number |
203 |
|
Hull material |
Steel |
|
Movable bulkheads |
1x With 4 stowage positions |
|
Main engine |
ABC 8DZC - 8 cylinder combustion engine 1.592 kW / 2.164 hp Builder: Anglo Belgian Corporation NV, Gent - Belgium |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1x 300 kW - 50 Hz |
|
Generators |
2x Vovo Penta D9A MG main diesel generatorsets each 261 kW - 50 Hz |
|
Emergency & harbour gen. |
1x Vovo Penta D7A-T diesel generatorset 112 kVA - 50 Hz |
|
Bow thruster |
1x Fixed pitch propeller 170 kW |
|
Number of holds |
1x Boxshaped hold narrowing fore and aft 58,80 x 11,47 x 8,24 m |
|
Cargo hold capacity |
Grain: 5.527 m³ / 195.185 ft³ |
|
Hold ventilation |
6 times |
|
Number of hatches |
1 55,20 x 11,47 m |
|
Hatch cover type |
Steel pontoon hatches with 1 gantry crane |
|
Deck area |
Main deck: 655,2 m² weather deck: 634,2 m² Total: 1.290,2 m² |
|
Max permitted loads |
Tanktop: 12,0 t/m² Weather deck: 2,5 t/m² |
|
Tank capacities |
Ballast: 1.983 m³ MGO: 286 m³ Potable water: 56 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 40 mm |
|
Accommodation |
For captain and crew of a total 10 persons with heating, ventilation and air-conditioning |
|
Manager |
Lohmann Bereederungen Haren, Ems Germany |
|
Operator |
Wilson |
|
Owner |
Hermann Lohmann Bereederungen GmbH & Co. KG Haren (Ems) Germany |
|
Renamed |
12/2017 Konstantin Antigua & Barbuda, St. John’s - Call sing: V2GR5 Owner: Hermann Lohmann Schiffahrts GmbH & Co. KG MS 'KONSTANTIN', Haren (Ems) - Germany Manager: Hermann Lohmann Bereederungen GmbH & Co. KG, Haren (Ems ) - Germany 09/2022 Frederik Antigua & Barbuda, St. John’s - Call sing: V2GR5 Owner: Hermann Lohmann Schiffahrts GmbH & Co. KG MS "FREDERIK" Manager: Hermann Lohmann Bereederungen GmbH & Co. KG - Germany |
|
Latest data adjustment |
01 January 2025 |
