| Westerschelde 24 February 2017 |
|
Name |

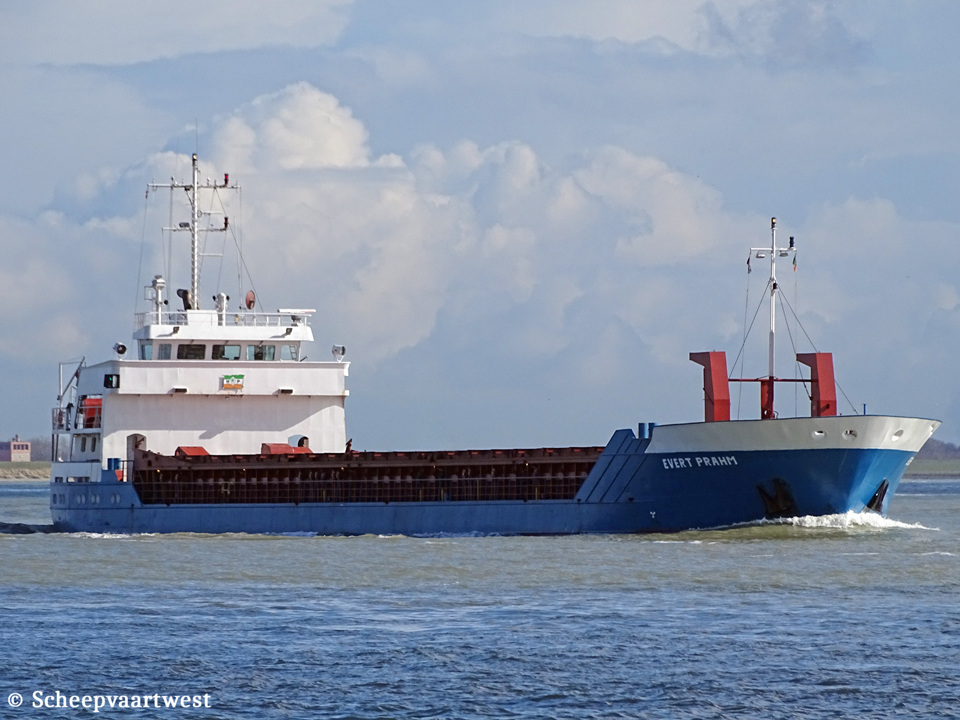

EVERT PRAHM |
|
Type |
General dry cargo ship - Coaster |
|
IMO-number |
9138757 |
|
Call sign |
DQRI |
|
Flag |
Germany |
|
Port of registry |
Leer |
|
GT |
1.598 |
|
DWT |
Summer: 2.671 t Winter: 2.586 t |
|
DWCC |
Summer: 2.500 t Winter: 2.415 t |
|
NT |
902 |
|
Light ship |
901 t |
|
Length |
78,24 m overall 74,00 m between perpendiculars |
|
Breadth |
11,64 m |
|
Draught |
Summer: 4,85 m Winter: 4,75 m |
|
Air draft |
19,70 m ballast 18,15 m loaded |
|
Depth |
5,80 m moulded |
|
Speed |
Max: 10,6 knots Service: 9,0 knots |
|
Build |
1996 |
|
Keel laid |
05/05/1994 |
|
Launch date |
25/09/1996 |
|
Date of completion |
01/11/1996 |
|
Builder |
Kotter-Werft GmbH Haren Ems Germany |
|
Yard number |
90 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable bulkhead, stored position aft |
|
Main engine |
1x SKL 6VD29/24 AL-2 - 4 stroke 6 cylinder 240 290 mm combustion engine 1.060 kW / 1.441 hp Builder: SKL Motoren und Systemtechnik AG, Magdeburg - Germany |
|
Propellers |
1x Pitch propeller |
|
Shaft generator |
1x 580 kVA |
|
Generators |
1x MWM TD 226-6 generatorset 75 kW / 84 kVA 1x MWM F5L912 generatorset 39 kW / 42,5 kVA |
|
Bow thruster |
1x 150 kW |
|
Number of holds |
1x Boxshaped 50,30 x 9,30 x 6,64 m (narrowing fore 3,00 m) |
|
Cargo hold capacity |
Grain: 3.164,38 m³ Bale: 3.143,14 m³ |
|
Number of hatches |
1 50,60 x 9,60 m |
|
Hatch cover type |
Steel folding |
|
Area available |
Tanktop: 470 m² (+18 m² narrowing part) Deck: 485 m² Total: 955 m² |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatch cover: 14 t/m² |
|
Tank capacities |
MGO: 131,65 m³ Fresh water: 19,9 m³ Lub oil: 4,37 m³ Water ballast: 1.093 m³ |
|
Manager |
Hammann & Prahm Reederei Co, KG Wischhafen Germany |
|
Registered owner |
Hammann & Prahm Reederei GmbH & Co. KG MS "Evert Prahm" Wischhafen Germany |
|
Renamed |
11/2020 May B Republic of Panama, Panama City - Call sign: 3FQA2 Registered owner: May B Maritime Limited, Majuro - Marshall Islands Manager: Viya Ship Management Co, Istanbul - Turkey |
|
Latest data adjustment |
12 December 2024 |
