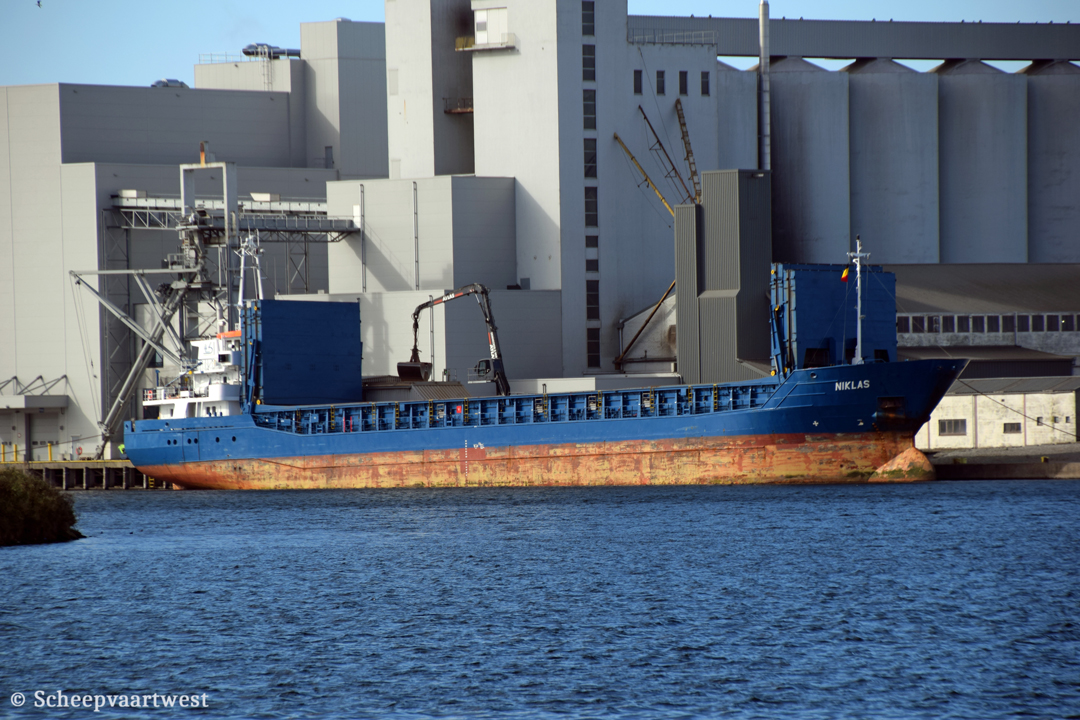

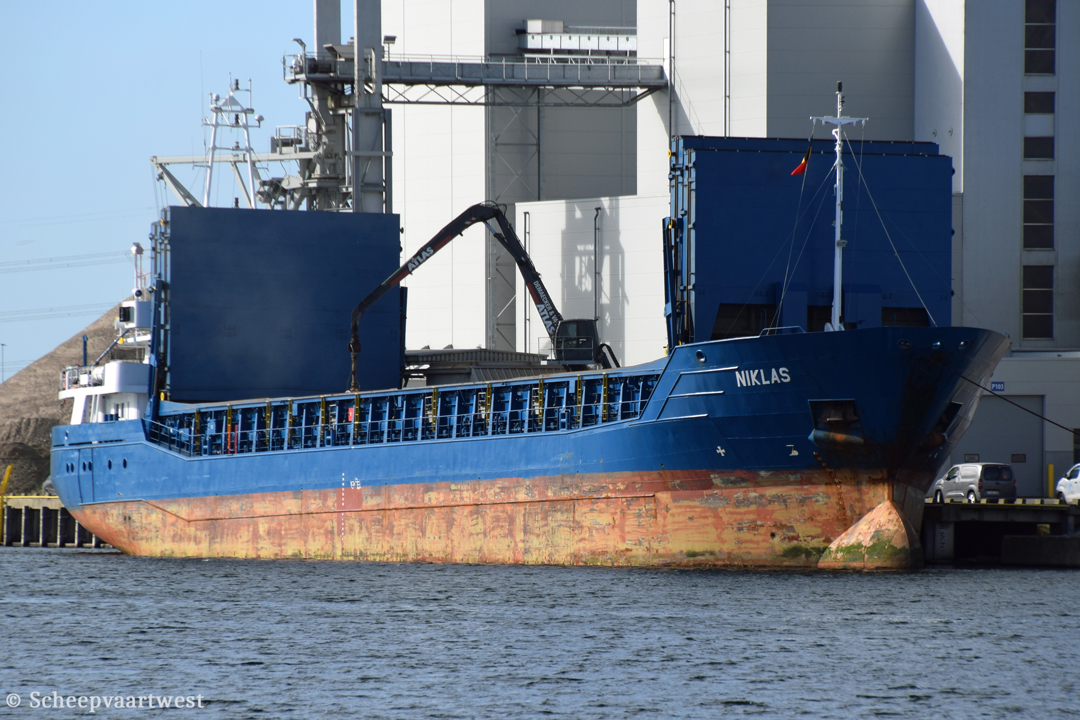

| Zeebrugge 22 October 2024 |
 |
|
| Zeebrugge 22/10/24 | |
|
Name |
NIKLAS |
|
Previous names |
08/2010 - 06/2013 Niklas 08/201 - 0/2014 Wilson Larvik |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers |
|
IMO-number |
9582855 |
|
Call sign |
V2CO6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
2010 - 2014 Liberia, Monrovia - Call sign: A8VZ8 |
|
GT |
2.450 t |
|
DWT |
Summer: 2.446,39 t Winter: 3.628,39 t |
|
DWCC |
Summer: 3.550 t Winter: 3.450 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
36 |
|
Length |
87,83 m overall 81,32 m between perpendiculars |
|
Breadth |
12,80 m moulded 12,90 m extreme |
|
Draught |
Summer: 5,59 m 3,40 m in ballast |
|
Air draft |
19,40 m in ballast 17,20 m loaded |
|
Depth |
7,10 m to main deck |
|
Speed |
Max: 11,7 knots Service: 9,5 knots |
|
Build |
2010 |
|
Keel laid |
29/06/1998 |
|
Launch date |
07/05/2010 |
|
Date of completion |
02/08/2010 |
|
Builder |
Slovenske Lodenice Komarno a.s Komarno Slovakia |
|
Yard number |
2983 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable / 10 positions |
|
Main engine |
1x MaK 8M20C- 8 cylinder cobustion engine 1.520 kW / 2.067 bhp Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller- Aft at 1.000 rpm |
|
Boilers |
Auxiliary boiler, oil/gas fired 1(oil fired water heater) |
|
Shaft generator |
1x Leroy Sommer 300 kVA / 3x 400 V, 50 Hz |
|
Generators |
2x MAN D2866LXE30 main diesel generatorsets each 225 kVA |
|
Emergency generator |
1x Cummins 6BT5.9-D(M) diesel generatorset 95 kVA |
|
Bow thruster |
1x Fixed pitch thruster 185 kW at 790 rpm |
|
Number of holds |
1 56,55 x 10,15 x 8,10 m |
|
Cargo hold capacity |
Grain: 4.613 m³ / 162.450 ft³ Bale: 4.588 m³ / 162.000 ft³ |
|
Number of hatches |
1 56,55 x 10,15 m |
|
Hatch cover type |
MacGregor folding type |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,56 t/m² |
|
Tank capacities |
Ballast: 1.340,4 m³ HFO: 199,30 m³ MGO: 68,60 m³ Potable water: 52,00 m³ Lub oil: 13,40 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 36 mm |
|
Crew |
7 |
|
Accommodation |
For captain and Crew of a total 09 persons with heating, ventilation and air-conditioning |
|
Commercial manger |
Hermann Lohmann Bereederungen GmbH & Co. KG Haren/Ems Germany |
|
ISM manager |
Hermann Lohmann Schiffahrtsverwaltungs GmbH |
|
Registered owner |
MS "WES ORPHEUS" Schiffahrts GmbH & Co. KG Haren/Ems Germany |
|
Latest data adjustment |
28 October 2024 |
