| Westerschelde 23 July 2015 |
|
Name |

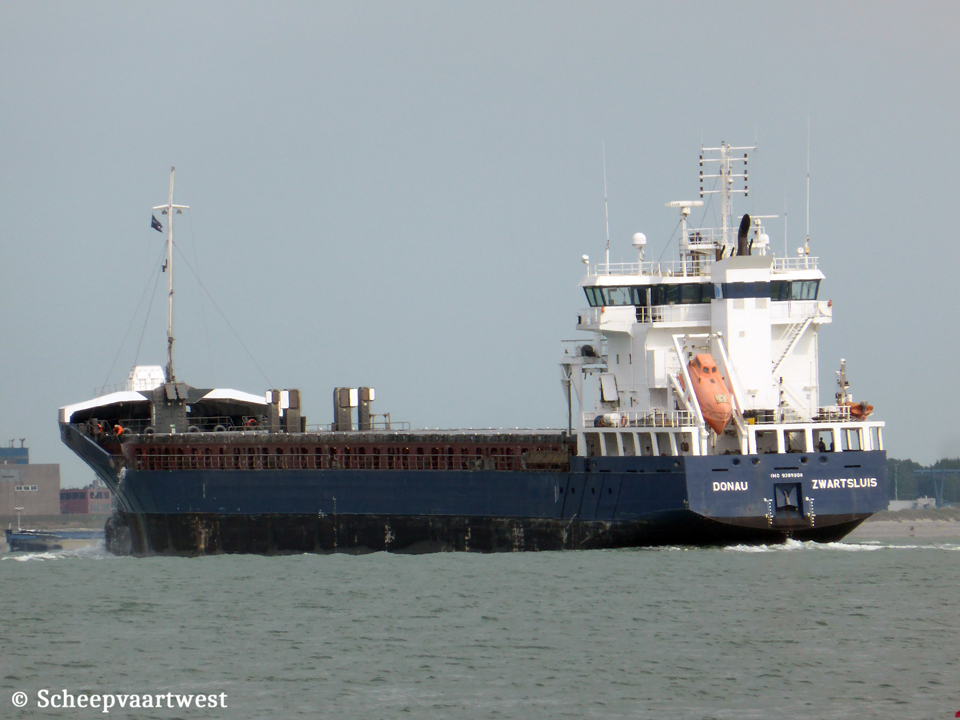

DONAU |
|
Type |
Multi-purpose high cubic dry cargo ship Container fitted / heavy cargo strengthened |
|
IMO-number |
9385908 |
|
Call sign |
PBVI |
|
Flag |
The Netherlands |
|
Port of registry |
Zwartsluis |
|
GT |
5.887 t |
|
DWT |
7.910 t |
|
DWCC |
Summer: 8.000 t Winter: 7.700 t |
|
NT |
2.558 t |
|
Number of 20ft containers |
In hold: 240 On deck: 150 Total: 390 |
|
Length |
128,45 m overall 123,29 m between perpendiculars |
|
Breadth |
15,87 m extreme |
|
Draught |
Summer: 6,95 m Winter: 6,81 m |
|
Air draft |
25,50 m in ballast |
|
Depth |
9,90 m moulded |
|
Speed |
Max: 14,7 knots Loaded: 12,0 knots |
|
Built |
2011 |
|
Keel laid |
17/10/2008 |
|
Launch date |
02/07/2010 |
|
Date of completion |
24/02/2011 |
|
Builder |
Korabostroitelnitza Ruse AD Ruse, Bulgaria |
|
Yard number |
822 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable (#2 hold) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 2.999 kW / 4.048 bhp at 600 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Gearbox |
1x Reintjes SVA 800- Reduction: 3,905:1 |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Generators |
2x MAN D2876 diesel generatorsets each 255 kW 1x MAN DO836 diesel generatorset 180 kwW |
|
Bow thruster |
1x Veth Tunnel thruster VT-550 - 500 kW at 1.500 rpm |
|
Number of holds |
2 Hold 1: 25,20 x 12,70 x 10,52 m Hold 2: 61,60 x 12,70 x 10,52 m |
|
Cargo hold capacity |
Gain& bale: 10.980 m³ / 397.750 ft³ |
|
Hold ventilation |
6x Air changes/hour |
|
Number of hatches |
2 Hatch 1: 25,20 x 12,70 m Hatch 2: 61,60 x 12,70 m |
|
Hatch cover type |
Pontoon ( 12 pcs) |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,75 t/m² |
|
Tank capacities |
Fresh water: 40,0 m³ Bunker capacity: 530 m³ IFO 380 / MGO Ballast: 4.292,89 m³ |
|
Commercial manager |
Longship B.V. Peizerweg 87F 9727 AH Groningen The Netherlands |
|
ISM manager |
Rederij Wanmar Riederveld 10 2993 XS Barendrecht The Netherlands |
|
Previous managers |
03/2001 - 07/2015 Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl - The Netherlands |
|
Registered owner |
Rederij Wanmar Riederveld 10 2993 XS Barendrecht The Netherlands |
|
Latest data adjustment |
02 July 2024 |
