| Westerschelde 02 January 2018 |
|
Name |

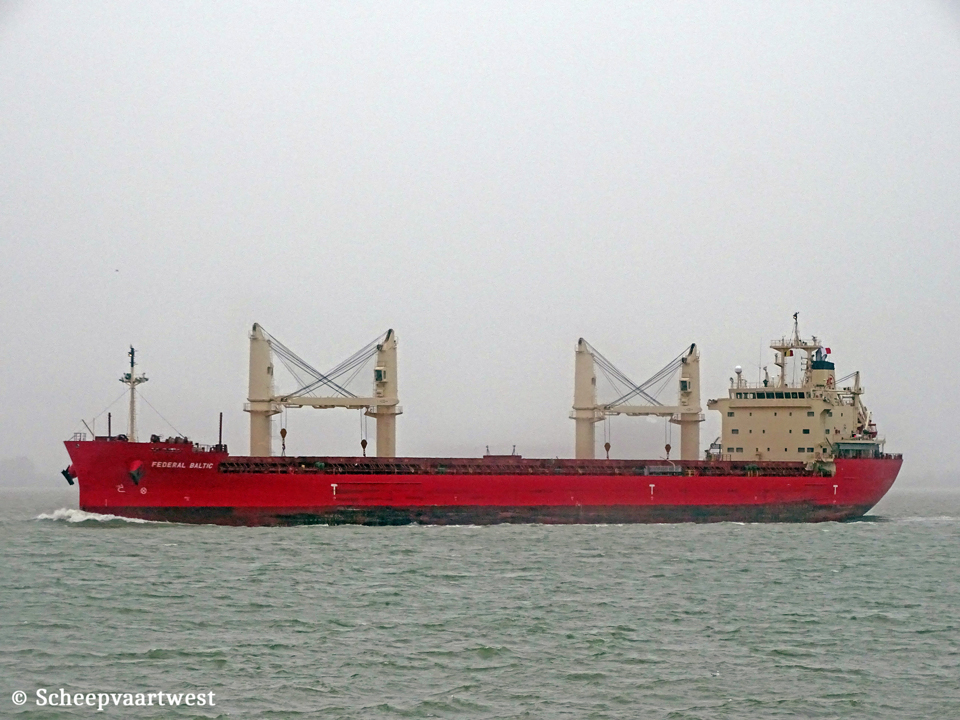

FEDERAL BALTIC |
|
Type |
Geared bulk carrier- Box-handysize laker |
|
IMO-number |
9697806 |
|
Call sign |
V7DS8 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
20.789 t |
|
DWT |
34.564 t |
|
NT |
11.317 t |
|
Length |
199,98 m overall 195,50 m between perpendiculars |
|
Breadth |
23,75 m extreme |
|
Draught |
Summer: 10,86 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots |
|
Built |
2015 |
|
Keel laid |
08/11/2013 |
|
Launch date |
23/03/2015 |
|
Date of completion |
07/05/2015 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10764 |
|
Hull material |
Steel |
|
Main engine |
1x Kawasaki/MAN-B&W 5S50ME-B9.3 – 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 12.104 bhp at 1170 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
Auxiliary boiler, composite Manufacturer: Alfa Laval K.K. Marine & Offshore System |
|
Generators |
3x Daihatsu 6DK-20e main diesel generatorsets each 960 kW |
|
Emergency generator |
1x Deutz TCD 914 L06 M diesel generatorset 67 kW |
|
Bow thruster |
1x Nakashima TCT-165 bow thruster |
|
Number of holds |
6 Hold 1: 25,20 x 5,10/21,00 m Hold 2: 27,60 x 21,00/21,00 m Hold 3: 28,30 x 21,00/21,00 m Hold 4: 20,40 x 21,00/21,00 m Hold 5: 28,30 x 21,00/21,00 m Hold 6: 22,20 x 21,00/10,40 m |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 5.887 / 5.842 m³ Hold 2: 7.751 / 7.738 m³ Hold 3: 7.913 / 7.009 m³ Hold 4: 6.185 / 6.141 m³ Hold 5: 7.908 / 7.895 m³ Hold 6: 6.007 / 5.982 m³ Total: 41.651 / 41.498 m³ |
|
Number of hatches |
6 Hatch 1: 15,00 x 13,20 m Hatch 2: 20,20 x 16,80 m Hatch 3: 20,20 x 16,80 m Hatch 4: 14,10 x 16,80 m Hatch 5: 20,20 x 16,80 m Hatch 6: 15,80 x 16,80 m |
|
Hatch type |
Folding hydraulic |
|
Max permitted loads |
Tanktop: Hold 1: 22,20 t/m² Hold 2: 20,00 t/m² Hold 3: 20,00 t/m² Hold 4: 22,20 t/m² Hold 5: 20,00 t/m² Hold 6: 24,80 t/m² |
|
Tank capacities |
Ballast: 19.337,2 m³ IFO: 1.387 m³ MDO: 449 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
4x Deck cranes – SWL 35,0 t each |
|
Manager |
Anglo-Eastern Ship Management Ltd. |
|
Operator |
Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Registered owner |
Federal Atlantic Ltd. Care of Fednav Ltd. Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Latest data adjustment |
10 May 2024 |
