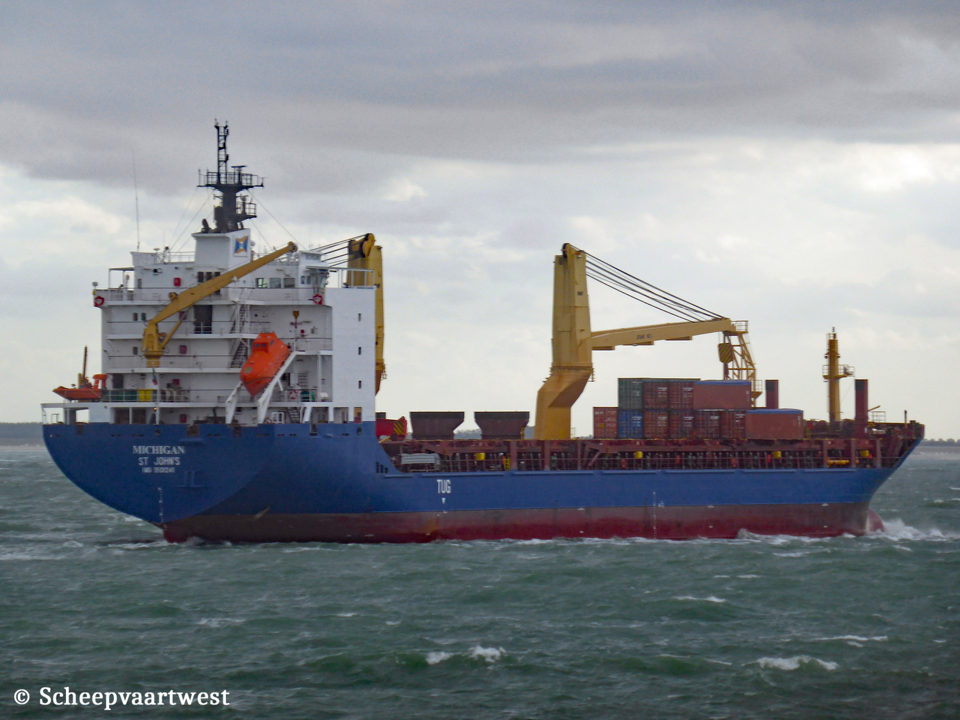

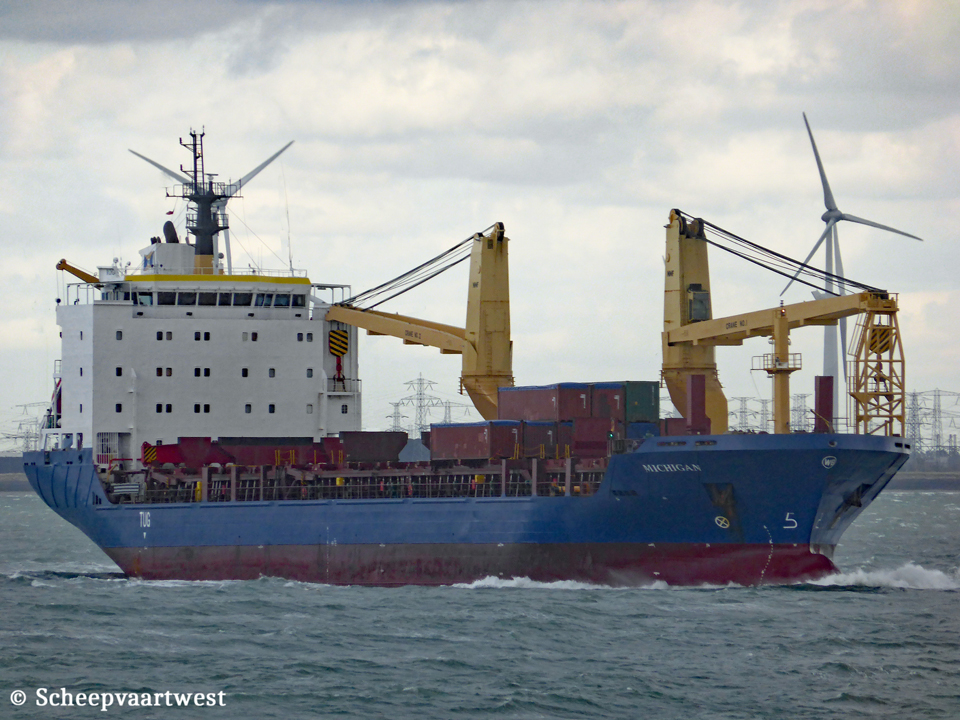

| Westerschelde 27 July 2015 |
 |
|
| Westerschelde 27/07/15 | |
|
Name |
MICHIGAN |
|
Previous names |
Build as: 2009 BBC Antigua 03/2009 - 06/2014 BBC Michigan 06/2014 - 02/2015 Industrial Sabre |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavylifter |
|
IMO-number |
9501241 |
|
Call sign |
V2EK5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
9.618 t registered |
|
DWT |
Summer: 12.767,7 t |
|
NT |
4.260 t registered |
|
Light ship |
5.205 t |
|
Number of 20ft containers |
665 |
|
Container capacity 14t |
528 |
|
Reefer capacity |
50 reefer plugs on deck |
|
Length |
138,48 m overall |
|
Breadth |
21,34 m extreme |
|
Draught |
Max. summer: 8,00 m |
|
Moulded L x B x D |
130,71 x 21,00 x 11,00 m |
|
Registered L x B x D |
130,71 x 21,00 x 11,00 m |
|
Height above keel |
40,09 m |
|
Freeboard |
Summer: 3.018 mm |
|
Depth |
11,00 m to main deck |
|
Speed |
Max.: 15,0 knots |
|
Built |
2010 |
|
Keel laid |
28/09/2007 |
|
Launch date |
15/08/2008 |
|
Date of completion |
15/03/2010 |
|
Builder |
China Changjiang National Shipping Group Jiangdong Shipyard China |
|
Yard number |
JD12000-15 |
|
Hull material |
Shipbuilding steel (Standard) |
|
Hull type |
Double bottom continuous from peak to peak bulkhead |
|
Bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke single acting 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.341 hp at 500 rpm Manufacturer: Caterpillar Motoren & Co., KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated Heating surface: 89 m³ 1x Thermal oil heater, oil fired Heating surface: 39 m³ Builder: Alfa Laval Aalborg A/S |
|
Shaft generator |
1x 700 kW |
|
Generators |
3x MAN D2842 LE301 diesel generatorsets each 510 kW |
|
Emergency generator |
1x MAN D2866 E20 diesel generatorset 99 kW |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain:15.952 m³ / 563.340 ft³ Bale: 14.856 m³ |
|
Number of hatches |
3 |
|
Floor space |
Under deck: 2.810 m² / 30.247 ft² On deck: 1.480 m² / 15.931 ft² |
|
Deck strengths |
Tank top: 16,0 t/m² Tweendeck hold 1: 2,5 t/m² Tweendeck hold 2: 4,0 t/m² Hatchcovers: 1,75 t/m² |
|
Tank capacities |
Ballast: 4.932,00 m³ Fresh water: 131,70 m³ Fuel oil: 1.108,60 m³ |
|
Anchor equipment |
Length: 545,00 m Diameter: 52 mm |
|
Cargo gear |
2x NMF cranes situated portside - SWL 150 t each 300 t capacity combined |
|
Registered owner |
W. Bockstiegel GmbH & Co. Reederei KG MS "BBC MICHIGAN" - Germany |
|
Renamed |
2016 BBC Michigan Antigua & Barbuda, St. John’s - Call sign: V2EK5 Owner: 6 Leda Beteiligungs GmbH & Co. - Care of Delft Schiffahrt GmbH & Co., KG Manager: Delft Schiffahrt GmbH & Co., KG - Germany |
|
Latest data adjustment |
07 May 2024 |
