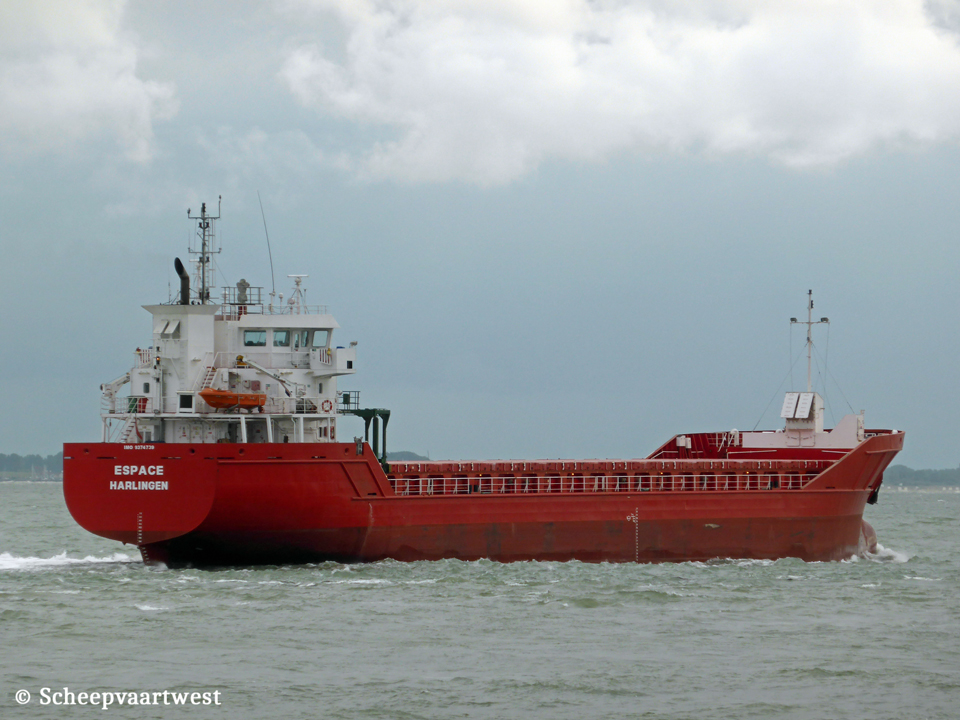

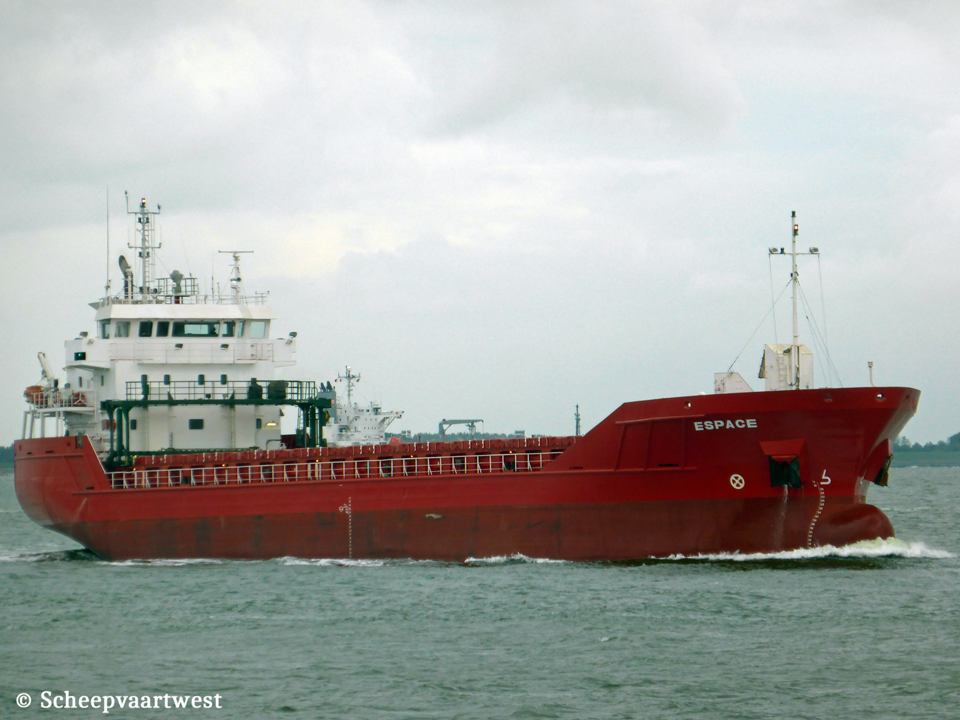

| Westerschelde 04 september 2015 |
 |
|
| Westerschelde 04/06/15 | |
|
Name |
ESPACE |
|
Type |
Multi-purpose dry cargo vessel - Strengthened for heavy cargo |
|
IMO-number |
9374739 |
|
Call sign |
PBDC |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
GT |
2.984 t |
|
DWT |
4.450 t |
|
NT |
1.598 t |
|
Number of 20ft containers |
38 on deck |
|
Length |
89,95 m overall 84,94 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
6,23 m |
|
Keel to mast end |
25,15 m |
|
Depth |
7,85 m moulded |
|
Speed |
11,5 knots |
|
Built |
2012 |
|
Keel laid |
15/12/2008 |
|
Launch date |
02/04/2010 |
|
Date of completion |
15/05/2012 |
|
Builder |
Chowgule and Company Private Limited Mormugao India |
|
Yard number |
184 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x (in 7 positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 2.690 kW / 1.980 bhp at 750 rpm Manufacturer: Caterpillar Motoren GmbH. & Co. K.G., Kiel - Germany |
|
Gear box |
1x Reintjes VA2451 K41 |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
312 kW |
|
Generators |
2x AGCO 634 DSBIG main diesel generatorsets each 140 kW |
|
Emergency generator |
1x Sisu 634 DSBIG diesel generatorset 140 kW |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 62,30 x 11,70 x 8,10 m |
|
Cargo hold capacity |
Grain: 6.079 m³ / 202.010 ft³ |
|
Hatch type |
10x Ponton hatch covers |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.921,9 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Crew size |
6 |
|
Manager |
JR Shipping B.V. Harlingen The Netherlands |
|
Owner |
Stichting Espace Harlingen The Netherlands |
|
Renamed |
02/12/2015 Valérie The Netherlands, Groningen - Call sign: PBDC Manager: Navigia Shipping B.V., Groningen - The Netherlands Owner: Valérie B.V., Groningen - The Netherlands |
|
Latest data adjustment |
12 March 2024 |
