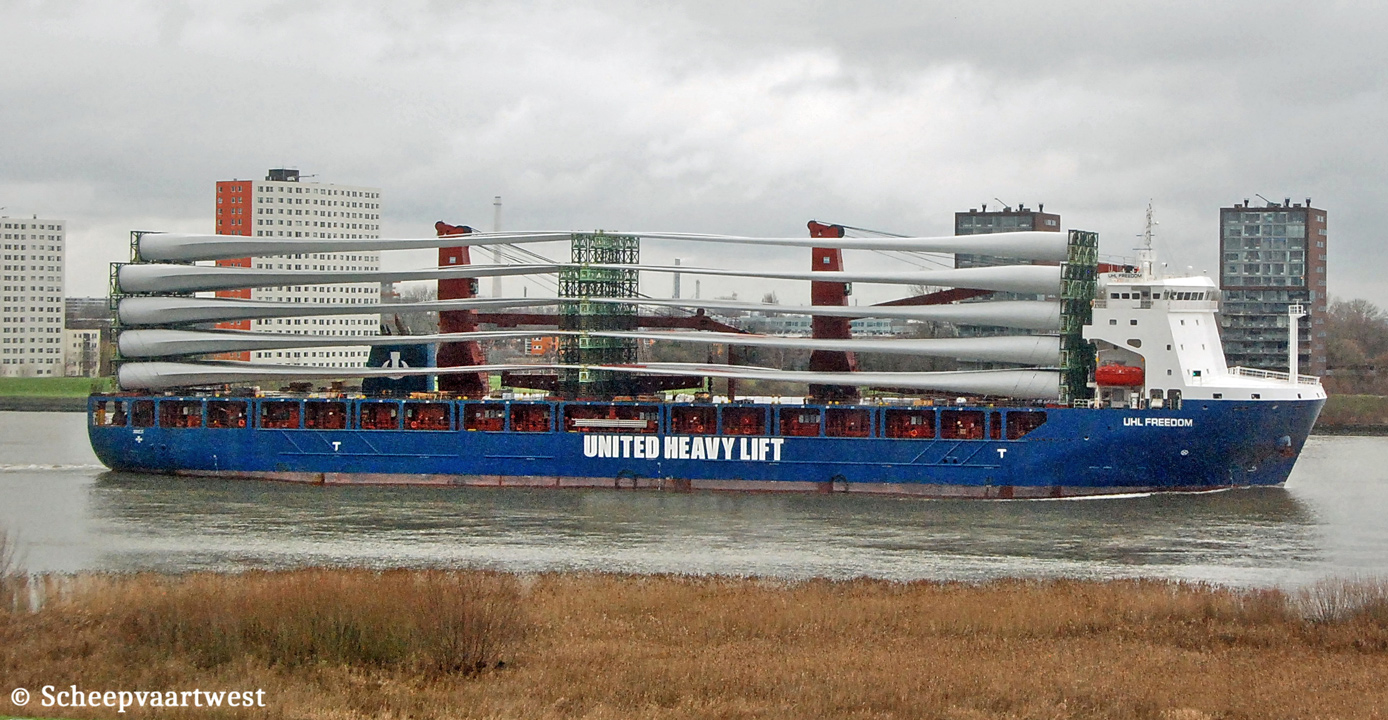

| Spijkenisse (Oude Maas) 28 Decemebr 2022 |
|
Name |
UHL FREEDOM |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Heavy lift vessel |
|
IMO-number |
9897121 |
|
Call sign |
CQED4 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
16.729 t |
|
DWT |
14.032 t |
|
NT |
5.180 t |
|
Number of 20ft containers |
In hold: 471 On deck: 540 Total: 1011 |
|
Reefer plugs |
100 sockets on deck |
|
Length |
149,99 m overall 142,00 m between perpendiculars |
|
Breadth |
25,60 m moulded 25,85 m extreme |
|
Draught |
Summer: 8,30 m |
|
Depth |
10,65 m |
|
Speed |
Max: 15,0 knots |
|
Built |
2021 |
|
Keel laid |
04/12/2015 |
|
Launch date |
11/11/2020 |
|
Date of completion |
28/04/2021 |
|
Builder |
Guangzhou Wenchong Shipyard Co. Ltd. China |
|
Yard number |
H5573 |
|
Hull material |
Steel |
|
Main engine |
1x Hudong/MAN-B&W 7S40ME-B9 - 2 stroke 7 cylinder 400 x 1.770 mm combustion engine 5.781 kW / 7.859 hp |
|
Propellers |
1x Wärtsilä mono-block fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite Saacke CMB-HF-2.0+0.7/6 1x Auxiliary boiler, exhaust gas heated Saacke EMB-VST-0.4/6 Manufacturer: Saacke VKK Marine Boilers GmbH |
|
Generators |
3x Daihatsu 6DE-18 main diesel generatorsets manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Scania DI13 diesel generatorset |
|
Bow thruster |
1x Kawasaki KT-88B3 tunnel thruster - 900 kW |
|
Cargo hold capacity |
23.600 m³ with tween deck 25.127 m³ without tween deck |
|
Number of hatches |
2 Hatch 1: 7,50 x 30,00 m Hatch 2: 105,45 x 20,00 m |
|
Floor Space |
Under deck: 3.870 m² On deck: 2.990 m² total: 6.860 m² |
|
Max permitted loads |
Tanktop: 16,0 t/m² Tweendeck: 5,0 t/m² Hatch cover: 5,0 t/m² / 8,0 t/m² Heavy lift area |
|
Tank capacities |
Ballast: 8.871 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
2x Deck cranes - SWL 450,0 t each Combined to 900 t |
|
Manager |
ZEABORN Ship Management GmbH & Cie. KG Hamburg Germany |
|
Operator |
United Heavy Lift GmbH & Co. KG |
|
Registered owner |
Freedom HLMPP Shipping Ltd. |
|
Latest data adjustment |
03 February 2024 |
