| Westerschelde 03 August 2016 |
|
Name |

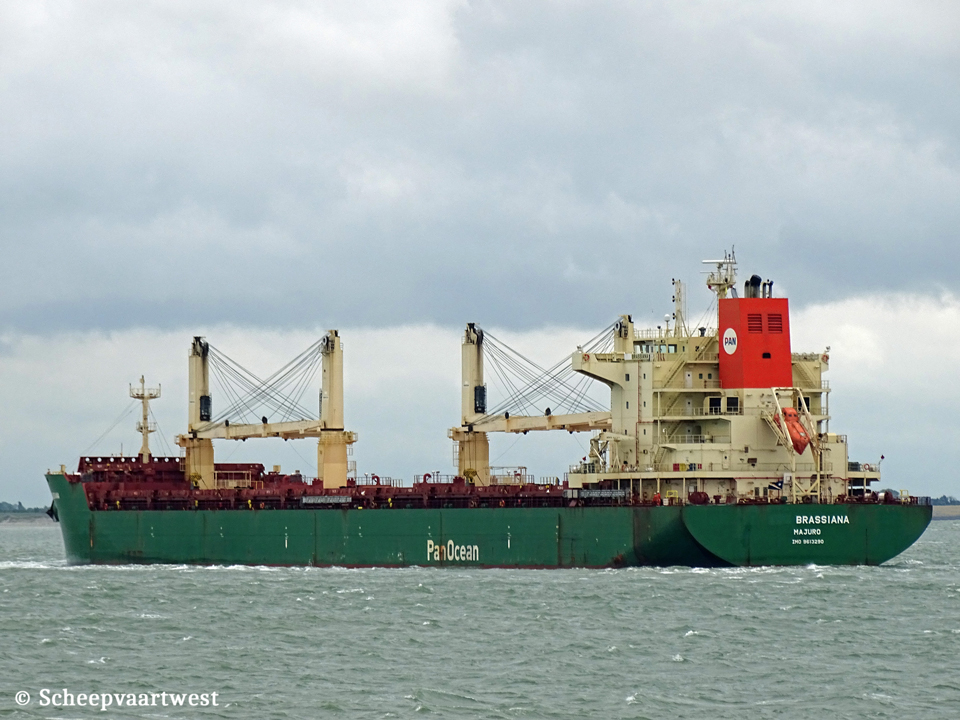

BRASSIANA |
|
Previous names |
2012 - 2017 STX Brassiana |
|
Type |
General dry cargo vessel - Open hatch |
|
IMO-number |
9613290 |
|
Call sign |
V7ZK3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
39.009 t |
|
DWT |
57.536 t |
|
NT |
16.720 t |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m |
|
Draught |
12,72 m |
|
Reg dimensions L x B x D |
192,67 x 32,26 x 19,30 m |
|
Rule dimensions L x B x D |
192,67 x 32,26 x 19,30 m |
|
Freeboard |
Summer: 3.715 mm |
|
Depth |
19,30 m |
|
Speed |
13,9 knots |
|
Built |
2012 |
|
Keel laid |
27/04/2012 |
|
Launch date |
06/08/2012 |
|
Date of completion |
14/12/2012 |
|
Builder |
STX Offshore Shipbuilding Co., Ltd. Jinhae South Korea |
|
Yard number |
S-1540 |
|
Hull material |
Steel |
|
Watertight bulkheads |
10 |
|
Number of decks |
2 |
|
Main engine |
1x STX/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW at 127,0 rpm Build: 01/03/2012 Builder: STX Heavy Industries Co., Ltd., Changwon - South Korera |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Boiler CPB - 8,8 kg/cm² Heating surface: 265 m² Build: 2012 |
|
Generators |
3x Main diesel generatorsets each 1.138 kVA / 450 Volt |
|
Cargo hold capacity |
Grain: 68.540 m³ |
|
Number hatchway |
8 1: 12,00 x 18,00 m 2: 18,40 x 28,20 m 3: 18,40 x 28,20 m 4: 18,40 x 28,20 m 5: 18,40 x 28,20 m 6: 18,40 x 28,20 m 7: 18,40 x 28,20 m 8: 12,80 x 28,20 m |
|
Tank capacities |
Fuel oil: 3.044,8 m³ Fresh water: 434,8 m³ Water ballast: 22.019,6 m³ |
|
Cargo gear |
4x Deck cranes - SWL 45,0 t each |
|
Commercial manager |
Pan Ocean Co., Ltd. Tower 8, 7, Jong-ro 5-gil, Jongno-gu Seoul, 03157 South Korea |
|
ISM manager |
POS SM Co., Ltd. Pan Ocean Busan Building 4th floor, Jungangdaero 102, Junggu Busan, South Korea |
|
Registered owner |
Pos Maritime PE SA |
|
Latest data adjustment |
13 December 2023 |
