| Westerschelde 12 February 2020 |
|
Name |

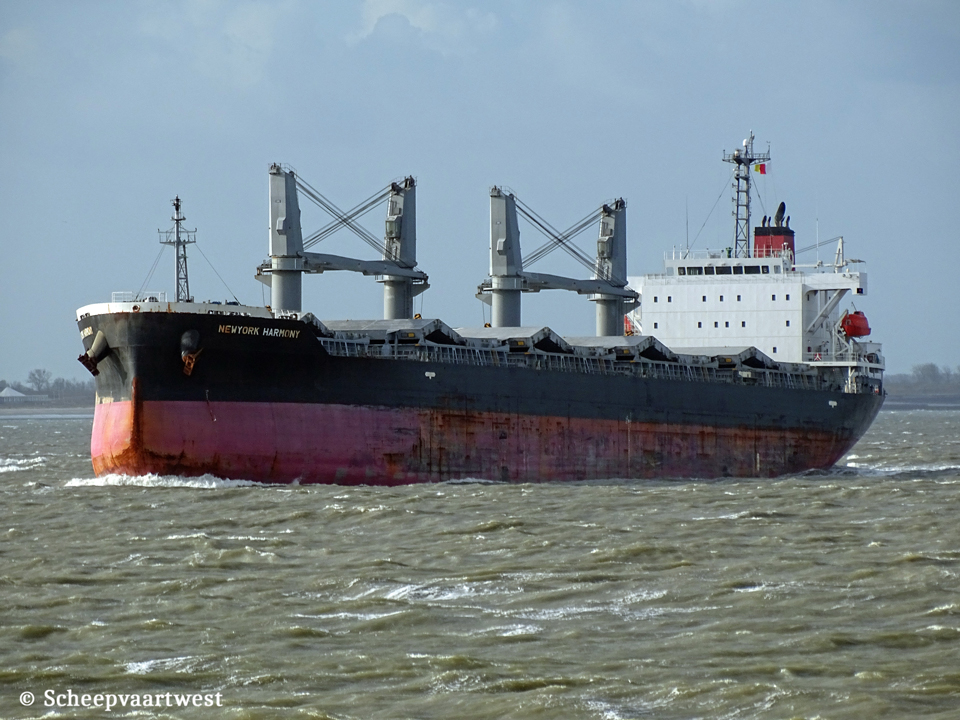

NEWYORK HARMONY |
|
Type |
Bulk carrier |
|
IMO-number |
9755684 |
|
Call sign |
3FCL9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
24.328 t |
|
DWT |
38.511 t |
|
NRT |
12.047 t |
|
Length |
182,87 m overall |
|
Breadth |
31,00 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
179,95 x 31,00 x 14,50 m |
|
Registered L x B x D |
179,95 x 31,00 x 14,50 m |
|
Freeboard |
Summer: 4.542 mm |
|
Depth |
14,50 m moulded |
|
Speed |
14,7 knots |
|
Built |
2015 |
|
Keel laid |
22/12/2014 |
|
Launch date |
01/04/2015 |
|
Date of completion |
09/06/2015 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Japan |
|
Yard number |
3683 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x MAN-B&W 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 6.050 kW / 8.226 hp at 110,0 rpm Manufacturer: Makita Corporation - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 1,59 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 2.200 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain 48.333 m³ Bale: 45.800 m³ |
|
Tank capacities |
Fuel oil: 1.722 m³ Fresh water: 513 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Commercial manager |
Hiong Guan Navegacion Co., Ltd. Room 1308A, 13th Floor, Tower One, Lippo Centre, 89, Queensway, Central Hong Kong China |
|
ISM manager |
H&J Marine Inc. 37-5, Nishishinbashi 2-chome, Minato-ku Tokyo, 105-0003 Japan |
|
Registered owner |
Giant Trans Pacifico SA - Republic of Panama Care of Hiong Guan Navegacion Co., Ltd. Room 1308A, 13th Floor, Tower One, Lippo Centre, 89, Queensway, Central Hong Kong China |
|
Latest data adjustment |
19 September 2023 |
