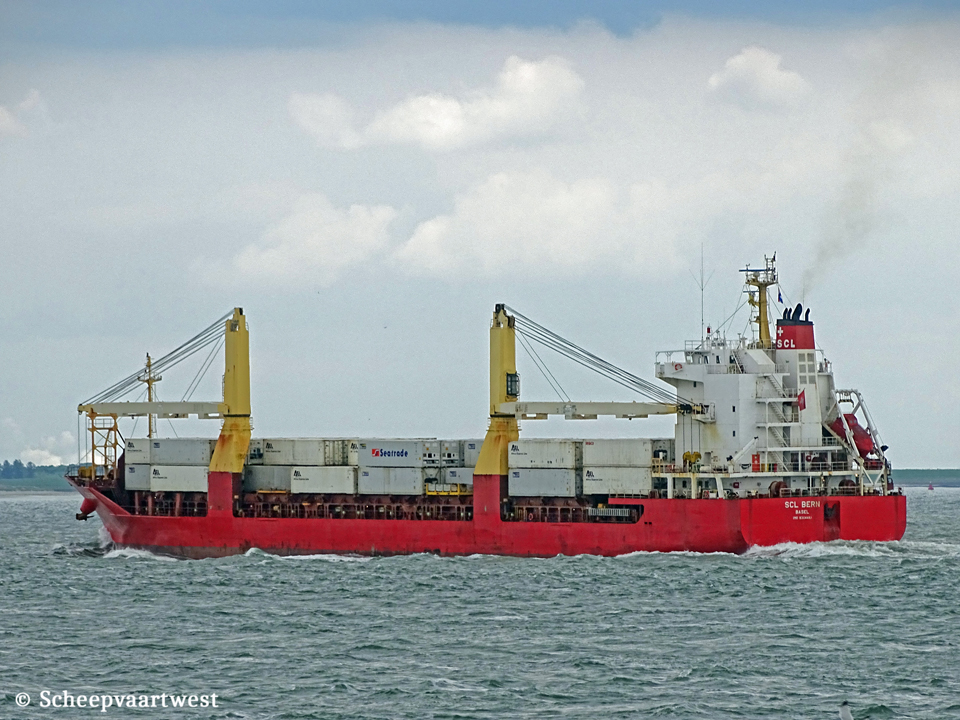

| Westerschelde 20 May 2017 |
|
Name |
SCL BERN |
|
Previous names |
2005 Launch as: SCL Bern 2005 - 2006 Sditc Bern |
|
Type |
Multi-purpose dry carrier - Strengthened for Heavy Cargoes - Container Cargoes |
|
Main products |
Transport of bulk, steel coils, containers, forest products, general cargoes, dangerous cargo, excluding explosives and nuclear materials |
|
IMO-number |
9304461 |
|
Call sign |
HBEG |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
9.990 t |
|
DWT |
12.576 t |
|
DWCC |
11.600 t |
|
NT |
4.483 t |
|
Number of 20ft containers |
In hold: 306 On deck: 460 Total: 766 |
|
Container capacity 14t |
536 |
|
Reefer plugs |
120 |
|
Length |
139,95 m overall 133,50 m between perpendiculars |
|
Breadth |
21,52 m extreme |
|
Draught |
Summer: 8,42 m |
|
Keel to mast end |
40,20 m |
|
Depth |
11,65 m moulded |
|
Speed |
Max: 17,0 knots |
|
Built |
2006 |
|
Keel laid |
02/08/2004 |
|
Launch date |
25/11/2004 |
|
Date of completion |
28/02/2005 |
|
Builder |
Kyokuyo Shipyard Corporation Shimonoseki Japan |
|
Yard number |
455 |
|
Hull material |
Steel - Part higher tensile steel |
|
Bulkheads |
Tween decks can be used as bulkhead in hold 3 |
|
Continuous decks |
1 |
|
Main engine |
1x Hitachi/MAN-B&W 8S42MC - 2 stroke 8 cylinder 420 x 1.764 mm combustion engine 8.200 kW / 11.148 hp at 136,0 rpm |
|
Propellers |
1x Fixed pitch propeller 5 Blades |
|
Bow thruster |
1x Controllable pitch propeller 500 KW |
|
Number of holds |
3x Box type Hold 1: 26,60 x 6,80 m, forward / 17,90 m, aft Hold 2: 51,80 x 17,90 m Hold 3: 13,30 x 17,90 m |
|
Cargo hold capacity |
Grain/Bale: 17.014 m³ / 600.869 ft³, excluding bulkheads |
|
Number of hatches |
3 |
|
Hatch type |
Steel MacGregor hatch covers, pontoon type |
|
Tween deck |
Tween decks in hold 2 and 3 |
|
Cargo gear |
2x MacGregor hydraulic deck cranes - SWL 80,0 t each Combinable to 160 t |
|
Manager |
Enzian Ship Management AG Zurich Switzerland |
|
Operator |
SCL Reederei AG - Swiss Cargo Line |
|
Owner |
SCL Bern A.G. Switzerland |
|
Renamed |
2017 - 2018 Angelo Maria Barbados - Call sign: 8PAM8 2018 Gala Liberia, Monrovia - Call sign: D5ST8 Owner: Gala Shipping Ltd., Monrovia - Liberia Manager: Unimor Shipping Agency, Odessa - Ukraine |
|
Latest data adjustment |
12 September 2023 |
