| Westerschelde 11 August 2015 |
 |
|
| Westerschelde 11/0/15 | |
|
Name |

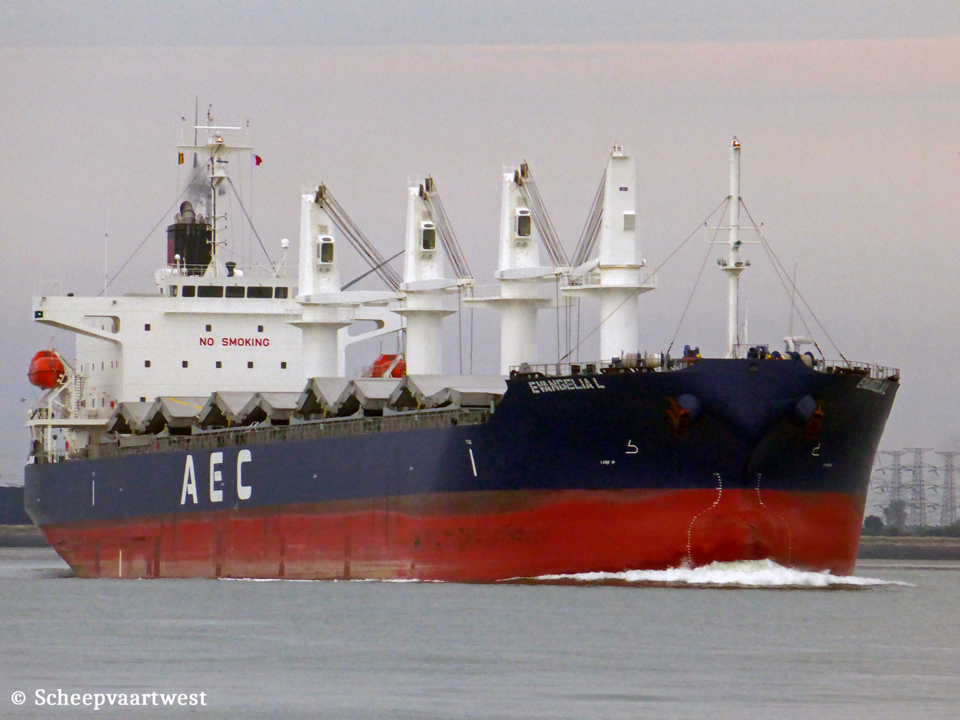

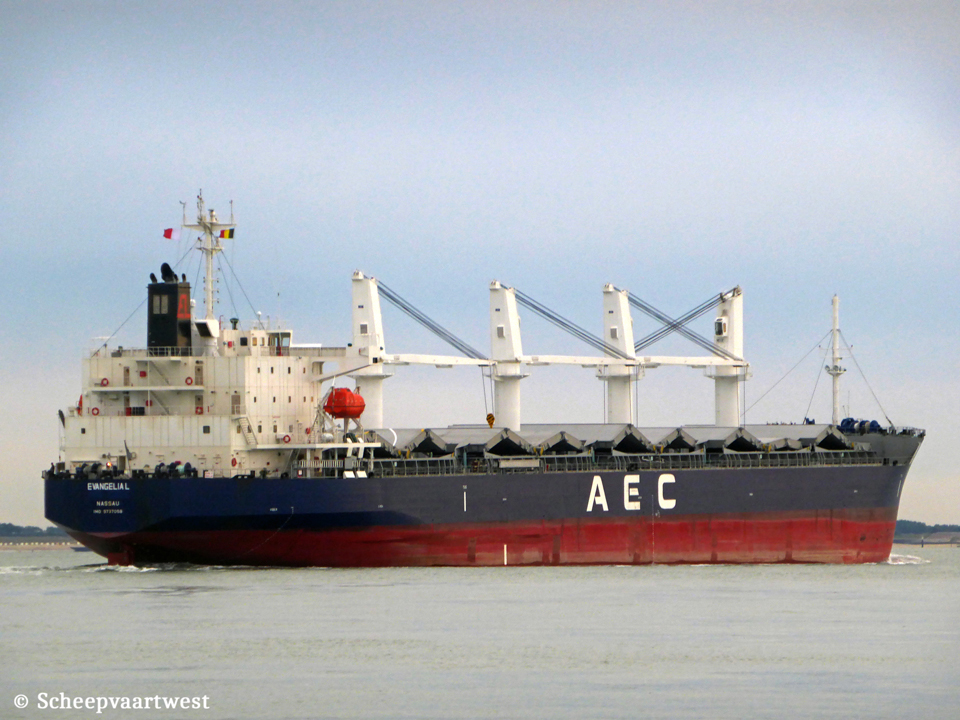

EVANGELIA L |
|
Previous names |
25/04/2015 - 10/08/2015 ACE Faith |
|
Type |
General cargo vessel - Strengthened for heavy cargo loading Handysize |
|
IMO-number |
9737058 |
|
Call sign |
C6BV5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GRT |
23.856 t |
|
DWT |
38.167 t |
|
NRT |
11.814 t |
|
Length |
183,00 m overall |
|
Breadth |
30,60 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
177,00 x 30,60 x 14,50 m |
|
Registered L x B x D |
178,81 x 30,60 x 14,50 m |
|
Freeboard |
Summer: 4.525 mm |
|
Depth |
14,50 m moulded |
|
Speed |
Service: 14,1 knots Max: 15,7 knots |
|
Built |
2015 |
|
Keel laid |
20/06/2014 |
|
Launch date |
22/01/2015 |
|
Delivery date |
21/04/2015 |
|
Builder |
Naikai Zosen Corporation Innoshima Shipyard Japan |
|
Yard number |
779 |
|
Hull material |
Steel |
|
Main engine |
1x Hitachi/MAN-B&W 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine Mcr 6.695 kW / 9.102 hp at 113,0 rpm Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 470 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 2,54 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generatorsets total 2.320 kVA |
|
Number of holds |
5x Box shaped fitted |
|
Cargo hold capacity |
Bale: 46.207 m³ Grain: 47.125 m³ |
|
Number of hatches |
5 Hatch 1: 15,52 x 17,60 m Hatches 2-5: 20,80 x 20,80 m each |
|
Tank capacities |
Fuel oil: 2.209 m³ Fresh water: 421 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
Evalend Shipping Co., S.A. Filellinon 21 Athens 105 57 Greece |
|
Registered owner |
Amelia Shipholding SA c/o Evalend Shipping Co SA, 21, Filellinon & G Souri Street 105 57 Athens Greece |
|
Latest data adjustment |
06 September 2023 |
