| Westerschelde 27 April 2018 |
 |
 |
|
| Westerschelde 27/04/18 | Westerschelde 27/04/18 | |
|
Name |

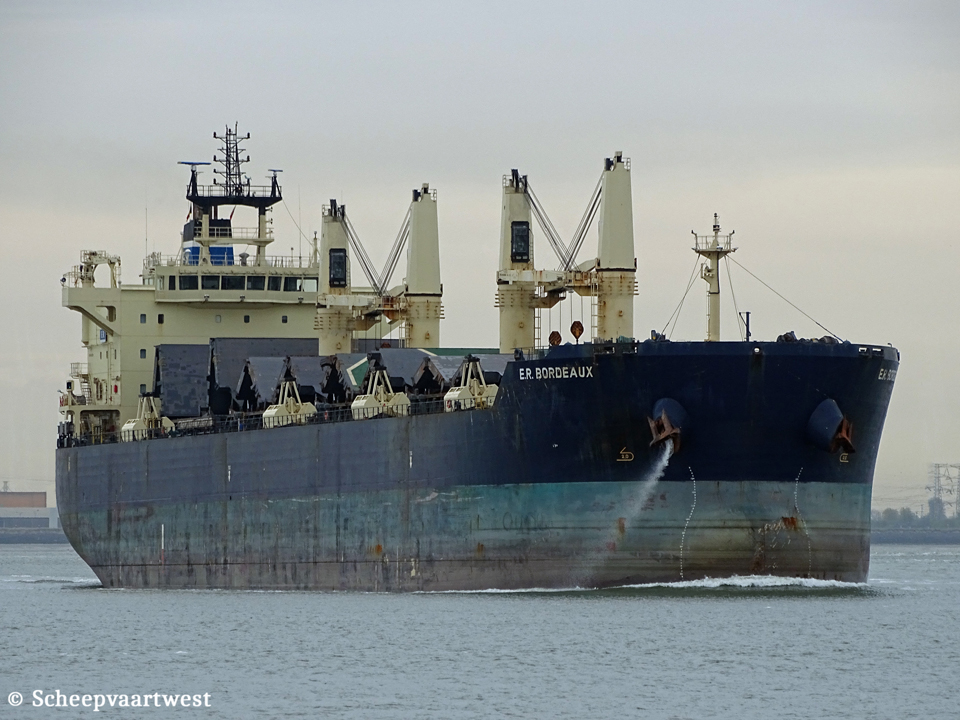

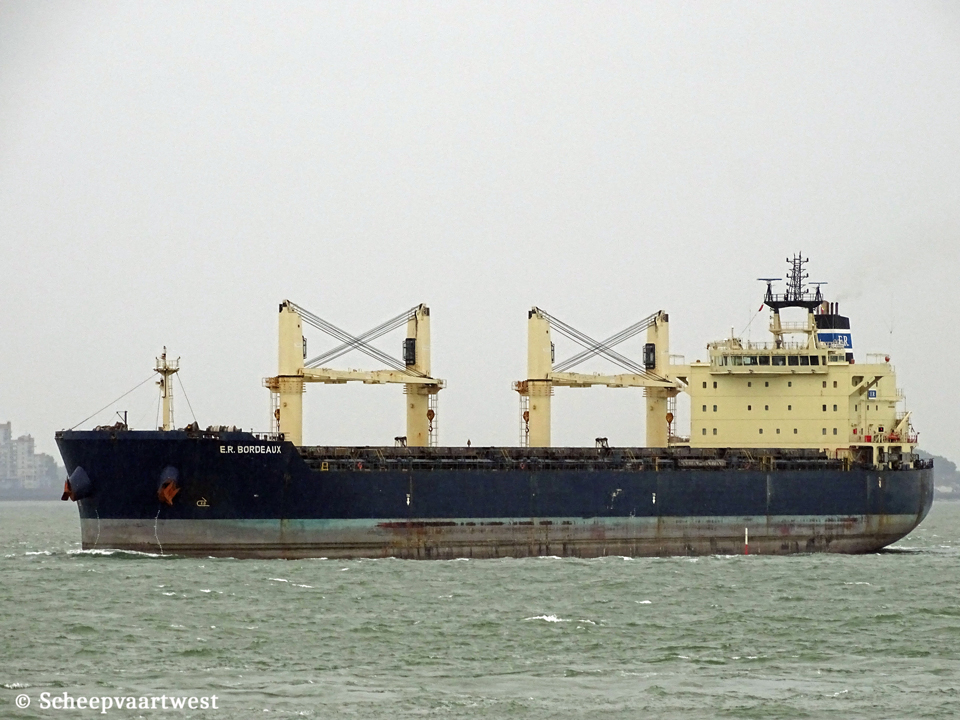

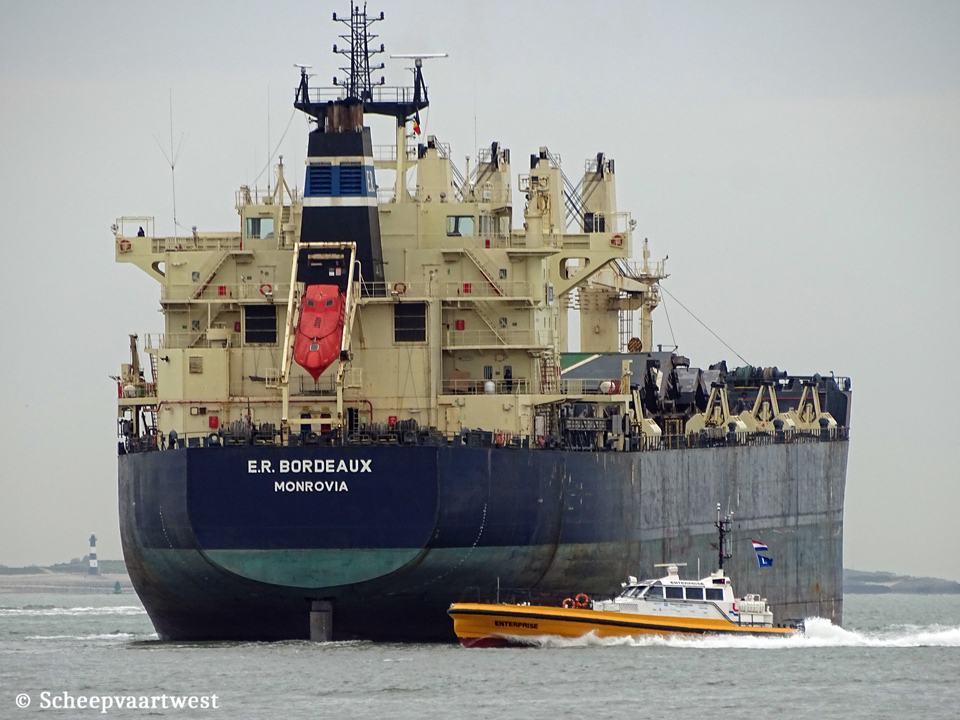

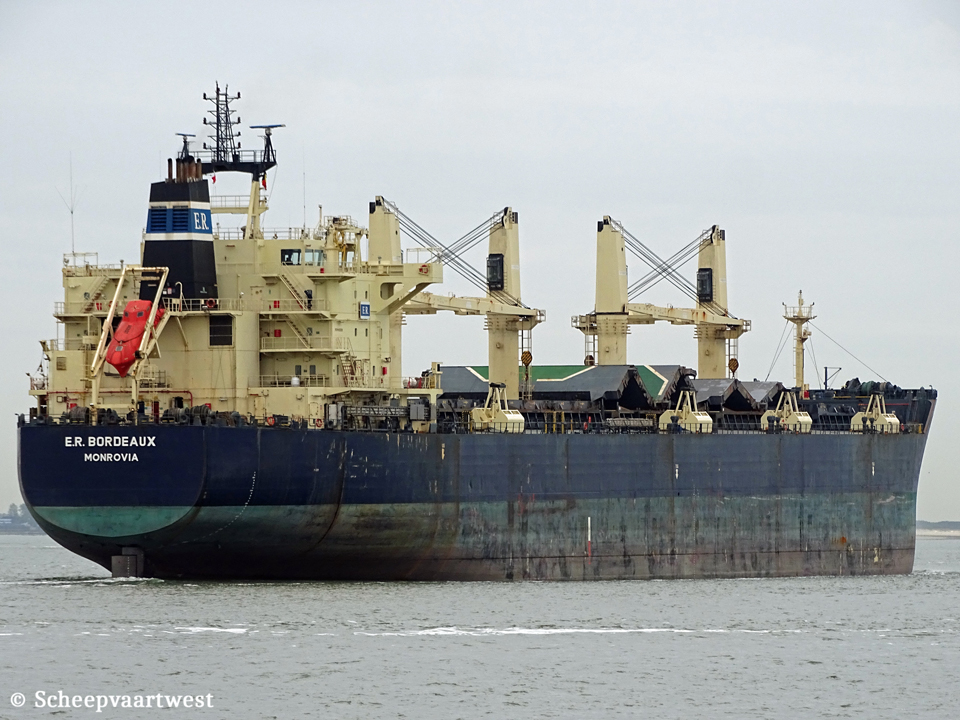

E.R. BORDEAUX |
|
Type |
Geared / Grab fitted bulk carrier - Supramax |
|
IMO-number |
9483229 |
|
Call sign |
A8XQ7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
32.672 t |
|
DWT |
55.621 t |
|
NT |
18.529 t |
|
Length |
187,80 m overall 182,50 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
Summer: 12,87 m |
|
Keel to mast end |
49,00 m |
|
Depth |
18,30 m |
|
Speed |
14,5 knots |
|
Built |
2011 |
|
Keel laid |
19/01/2011 |
|
Launch date |
25/04/2011 |
|
Date of completion |
27/07/2011 |
|
Builder |
Hyundai-Vietnam Shipbuilding Co., Ltd. Ninh Phuoc Vietnam |
|
Yard number |
S005 |
|
Hull material |
Steel |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.820 kW / 11.992 hp at 119,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller Builder: Hyundai Heavy Inc. Co. Ltd. Engine & Machinery Division |
|
Boilers |
1x Auxiliary boiler, composite Builder: Kangrim Heavy Ind.Co.,Ltd. |
|
Generators |
3x Hyundai/Himsen 6H17/28 main diesel generatorsets Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Emergency generator |
1x Cummins 6BT5.9-D(M) diesel generatorset |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 69.550 m³ Grain: 70.733 m³ |
|
Tank capacities |
Ballast: 29.725,6 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
4x Cargo deck cranes - SWL 30,0 t each |
|
ISM & commercial manager |
Zeaborn Ship Management GmbH & Cie KG Ludwig-Erhard-Strasse 22 20459 Hamburg Germany |
|
Registered owner |
MS "E.R. BORDEAUX" Schiffsbeteiligungsgesellschaft mbH & Co. KG Care of Zeaborn Ship Management GmbH & Cie KG Hamburg Germany |
|
Latest data adjustment |
03 August 2023 |
