| Westerschelde 20 April 2016 |
|
Name |

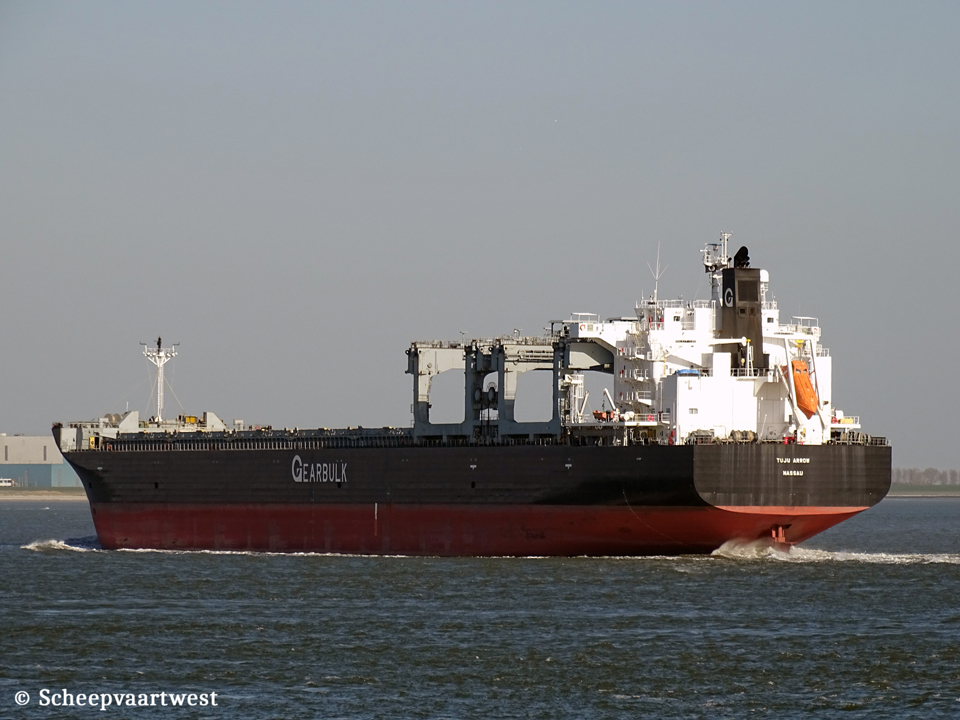

TUJU ARROW |
|
Type |
General cargo ship - Open hatch Gantry crane vessel |
|
IMO-number |
9443920 |
|
Call sign |
C6YL5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
44.684 t |
|
DWT |
72.863 t |
|
NT |
22.141 t |
|
Number of 20ft containers |
445 |
|
Length |
225,00 m overall 221,00 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
Summer: 14,41 m |
|
Depth |
20,56 m |
|
Speed |
Max: 15,5 knots Economic: 13,0 knots |
|
Built |
2010 |
|
Keel laid |
16/05/2006 |
|
Launch date |
13/07/2010 |
|
Date of completion |
13/10/2010 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10606 |
|
Hull material |
Steel |
|
Main engine |
Kawasaki/MAN-B&W 6S60ME-C Mk8 - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 12.577 kW / 18.460 bhp at 105,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite Aalborg GCS-23M |
|
Generators |
2x Yanmar 8N21AL-EV main diesel generatorsets each 1.300 kW 1x Yanmar 6N21AL-SV main diesel generatorset 975 kW Builder: Yanmar Co., Ltd. Amagasaki Plant |
|
Bow thruster |
1x Nakashima TCT-260 thruster |
|
Number of holds |
8 |
|
Cargo hold capacity |
Bale: 85.086 m³ |
|
Deck surface |
Under deck: 4.324 m² Weatherdeck: 4.324 m² |
|
Max permitted loads |
Hatch covers 1, 2: 2,10 t/m² Hatch covers 3-8: 2,64 t/m² Tanktop 1: 28,0 t/m² Tanktop 2, 5, 7: 20,6 t/m² Tanktop 3, 4, 6: 29,3 t/m² Tanktop 8: 29,8 t/m² |
|
Tank capacities |
Ballast: 29.181,6 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 61 mm |
|
Cargo gear |
2x Gantry cranes - SWL 70 t each Grabs: 20 m³ |
|
Crew size |
30 |
|
Manager |
Gearbulk Norway AS Ytrebygdsvegen 215 5258 Blomsterdalen Norway |
|
Registered owner |
Gearbulk Shipowning Ltd. Care of G2 Ocean AS Grieg-Gaarden, C. Sundtsgate 17 NO-5809 Bergen Norway |
|
Previous owners |
East Blue Marlin SA |
|
Latest data adjustment |
23 July 2023 |
