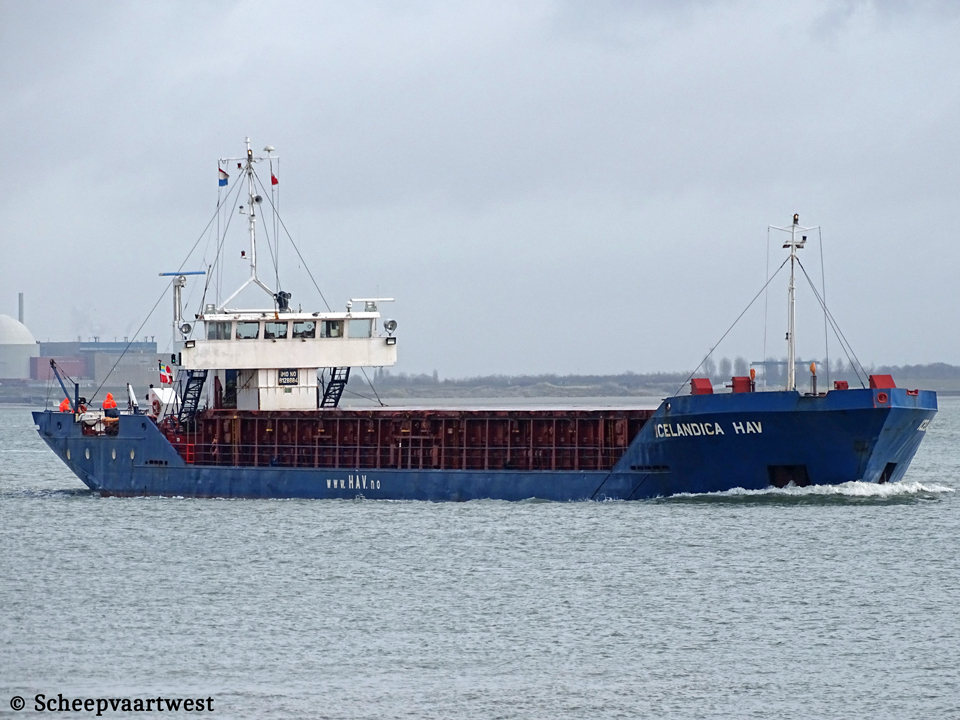

| Westerschelde 11 January 2019 |
|
Name |
ICELANDICA HAV |
|
Previous names |
1982 - 01/1994 Patria 01/1994 - 12/2005 Mike |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
8128884 |
|
Call sign |
C6VC3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1982 - 2005 Germany, Hamburg - Call sign: DABP |
|
GT |
1.513 t |
|
DWT |
2.316 t |
|
DWCC |
Summer: 2.150 t Winter: 2.080 t |
|
NT |
782 t |
|
Number of 20ft containers |
48 |
|
Length |
82,31 m overall 76,80 m between perpendiculars |
|
Breadth |
11,30 m extreme |
|
Draught |
Summer: 4,22 m |
|
Keel to end antenna |
20,10 m |
|
Depth |
5,41 m moulded |
|
Speed |
Max: 10,6 knots Service: 9,5 knots |
|
Built |
1982 |
|
Keel laid |
14/11/1981 |
|
Launch date |
01/01/1982 |
|
Date of completion |
01/02/1982 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH Germany |
|
Yard number |
585 |
|
Hull material |
Steel |
|
Hull type |
Hold box double hull |
|
Movable bulkheads |
1x 6 position |
|
Main engine |
1x Deutz SBA8M528 - 4 stroke 8 cylinder 220 x 208 mm combustion engine 700 kW / 952 hp hp at 1.000 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
1x Deutz BA6M816 - 6 cylinder 142 x 160 mm diesel engine 291 hp at 1.500 rpm 1x BF4M1013E diesel generatorset 85 kW |
|
Emergency & Harbour gen. |
1x KHD Deutz F5L413FR diesel generatorset 74 kW |
|
Bow thruster |
1x 132 kW / 179 bhp |
|
Number of holds |
1 50,40 x 9,00 x 6,30 m |
|
Cargo hold capacity |
Grain/Bale: 2.856 m³ / 100.859 ft³ |
|
Timber capacity |
2.900 m³ |
|
Hold ventilation |
6x Air changes/hour |
|
Numb er of hatches |
1 49,80 x 9,00 m |
|
Hatch type |
Piggy back multi stack |
|
Max permitted loads |
Hatch cover: 1,5 t/m² Tanktop: 11,0 t/m² |
|
Tank capacities |
Ballast: 996,1 m³ Gas oil: 121,2 m³ Fresh water: 58,8 m³ |
|
Anchor equipment |
Length: 367,50 m Diameter: 30 mm |
|
Crew size |
6 |
|
ISM & commercial manager |
HAV Ship Management NorRus AS Office 411, ul Teatralnaya 35 Kaliningrad, 236006 Russia |
|
Registered owner |
Hav Bulk AS Filipstadveien 5 0250 Oslo Norway |
|
Previous names & owners |
1982 Patria - Patria Schiffahrts GmbH Mahncke & Co. 1983 Patria - Deutsche Conti Schiffahrts GmbH 1992 Patria - Interscan Schiffahrts GmbH 1994 Mike - E.D.Strahlmann 2005 Icelandica Hav- Mike Sg DA 2013 Icelandica Hav - P/R Mike Sg DA 2014 Icelandica Hav - Ewald Sg A/S 2017 Icelandica Hav - Hav Bulk A/S |
|
Latest data adjustment |
22 January 2023 |
