| Westerschelde 17 April 2018 |
|
Name |

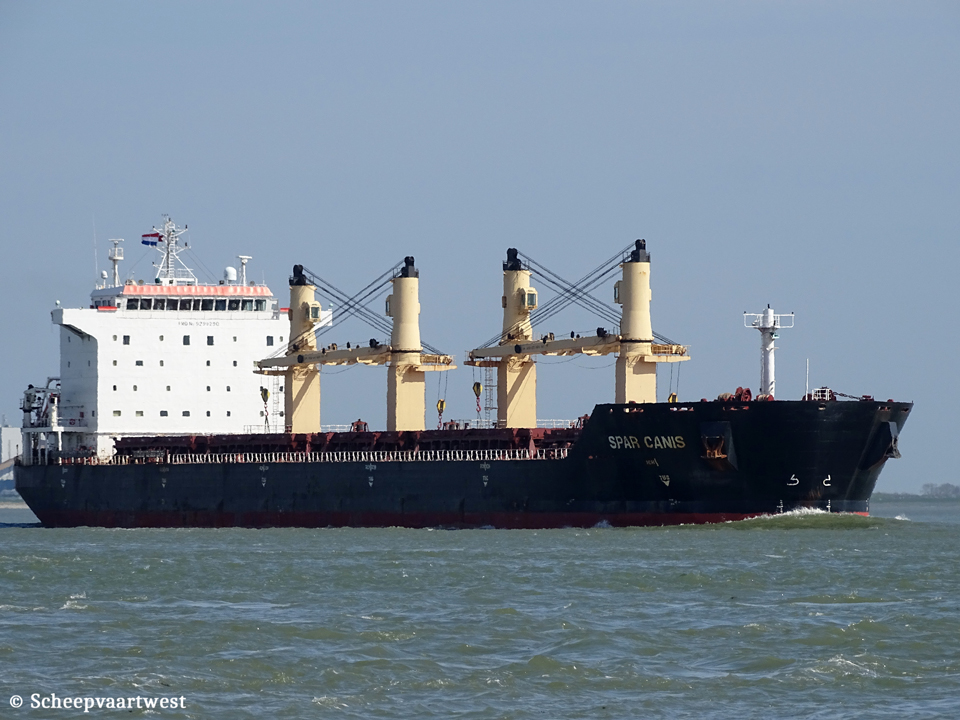

SPAR CANIS |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Supramax |
|
IMO-number |
9299290 |
|
Call sign |
LAFQ6 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GRT |
32.474 t |
|
DWT |
53.565 t |
|
NRT |
17.790 t |
|
Length |
190,00 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,54 m |
|
Moulded L x B x D |
183,29 x 32,26 x 17,50 m |
|
Keel to mast end |
5,60 m |
|
Freeboard |
Summer: 4.986 mm |
|
Depth |
17,50 m moulded |
|
Speed |
14,2 knots |
|
Built |
2006 |
|
Keel laid |
22/09/2005 |
|
Launch date |
30/11/2005 |
|
Date of completion |
15/02/2006 |
|
Builder |
Chengxi Shipyard Jiangyin / Jiang Su Province China |
|
Yard number |
CX4208 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Hudong 6S50MC-C 2 - stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm Manufacturer: Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x oil lubrication shaft without monitoring device Diameter: 469 mm |
|
Propellers |
1x Fixed pitch propeller Diameter: 5.900 mm |
|
Boilers |
1x Auxiliary vertical boiler - 0,90 MPa Evaporation: 3,10 t/h Manufacturer: Saacke Qingdao Marine Boiler Co.,Ltd. |
|
Generators |
3x Daihatsu DK20 main diesel generatorsets each 680 kW |
|
Emergency generator |
1x Diesel generatorset 100 ekW |
|
Bow thruster |
4x Deck cranes - SWL 36,0 t each |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 64.000 m³ Grain: 65.752 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.004 m³ Fresh water: 239 m³ Diesel oil: 234 t Ballast: 18.100 m³ |
|
Commercial manager |
Spar Shipping AS Kokstadflaten 30 5257 Kokstad Norway |
|
ISM manager |
Fleet Management Limited 27th Floor, South Island Place, 8, Wong Chuk Hang Road Hong Kong - China. |
|
Registered owner |
Spar Shipping AS Kokstadflaten 30 5257 Kokstad Norway |
|
Latest data adjustment |
17 November 2022 |
