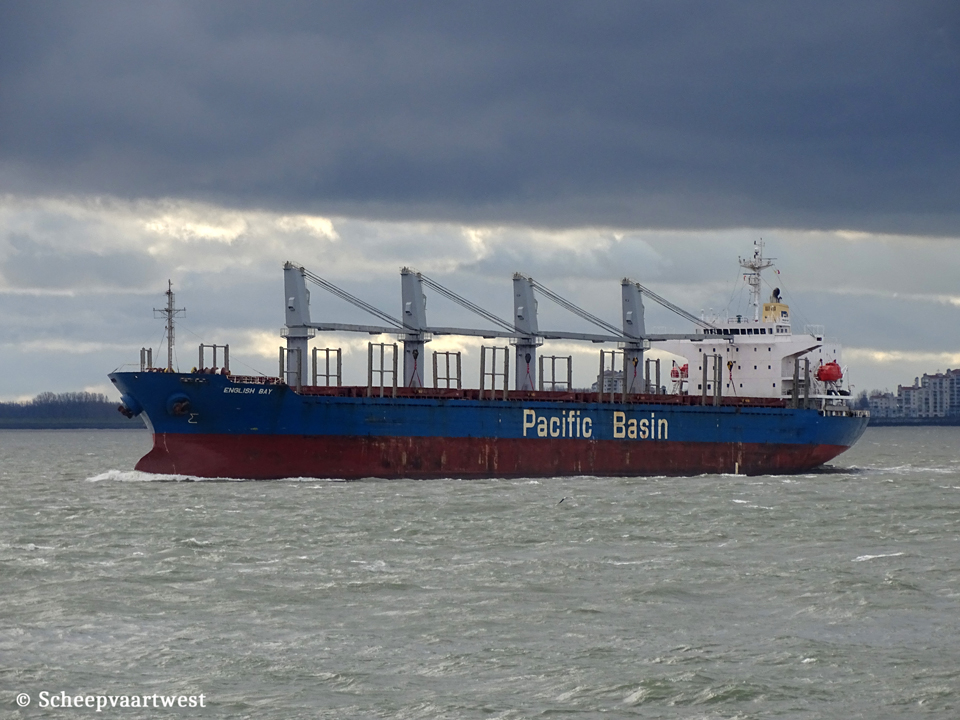

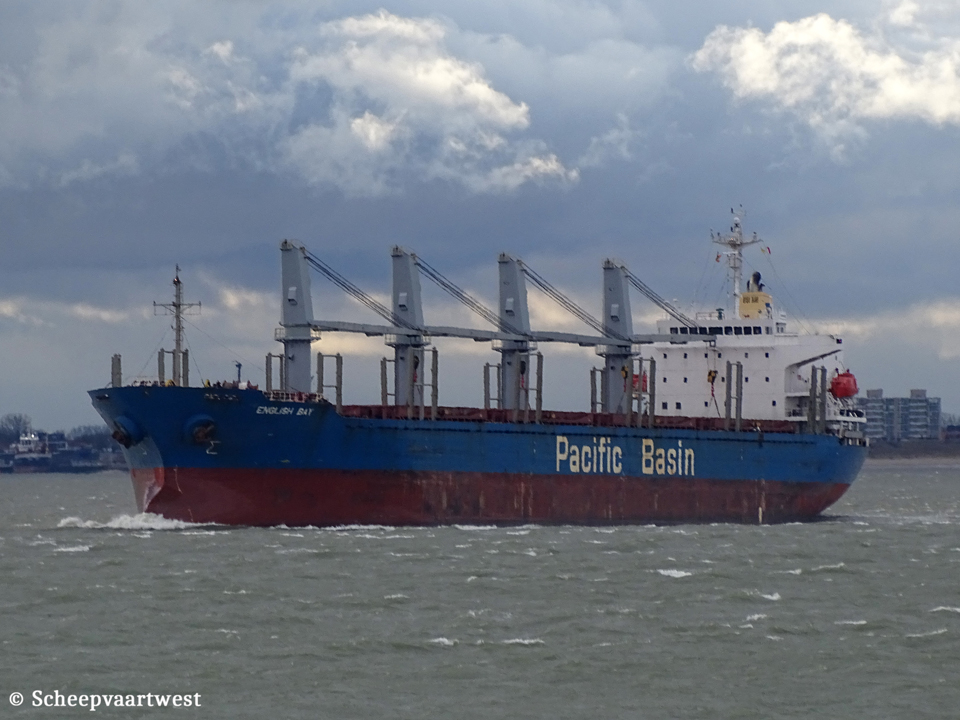

| Westerschelde 20 December 2019 |
 |
|
| Westerschelde 20/12/19 | |
|
Name |
ENGLISH BAY |
|
Previous names |
2000 - 2006 Aries Forest |
|
Type |
Bulk/Lummer carrier |
|
IMO-number |
9218038 |
|
Call sign |
VRYQ9 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GRT |
19.925 t |
|
DWT |
32.834 t |
|
NRT |
11.044 t |
|
Length |
177,00 m overall |
|
Breadth |
28,40 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
168,50 x 28,40 x 14,25 m |
|
Registered L x B x D |
169,45 x 28,40 x 14,25 m |
|
Keel to mast end |
40,50 m |
|
Freeboard |
4.283 mm |
|
Depth |
14,25 m moulded |
|
Speed |
14,5 knots |
|
Built |
2000 |
|
Keel laid |
07/04/2000 |
|
Launch date |
01/06/2000 |
|
Date of completion |
19/09/2000 |
|
Builder |
Kanda Shipbuilding Co., Ltd. |
|
Yard number |
403 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC50LSII - 2 stroke single acting 6 cylinder 500 x 1.950 mm combustion engine 6.620 kW at 108,0 rpm Manufacturer : Kobe Diesel Co., Ltd. Kobe Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 480 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 2,06 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
3x Generatorsets total 1.100 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 40.713 m³ Grain: 42.673 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.540 m³ Fresh water: 256 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Crew size |
21 |
|
ISM & commercial manager |
Pacific Basin Shipping (HK) Limited. 31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang Hong Kong - China |
|
Registered owner |
Elizabay Ltd. Care of Pacific Basin Shipping (HK) Ltd. 31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang Hong Kong - China |
|
Latest data adjustment |
23 October 2022 |
