| Westerschelde 22 May 2019 |
 |
| Westerschelde 22/05/19 |
|
Name |

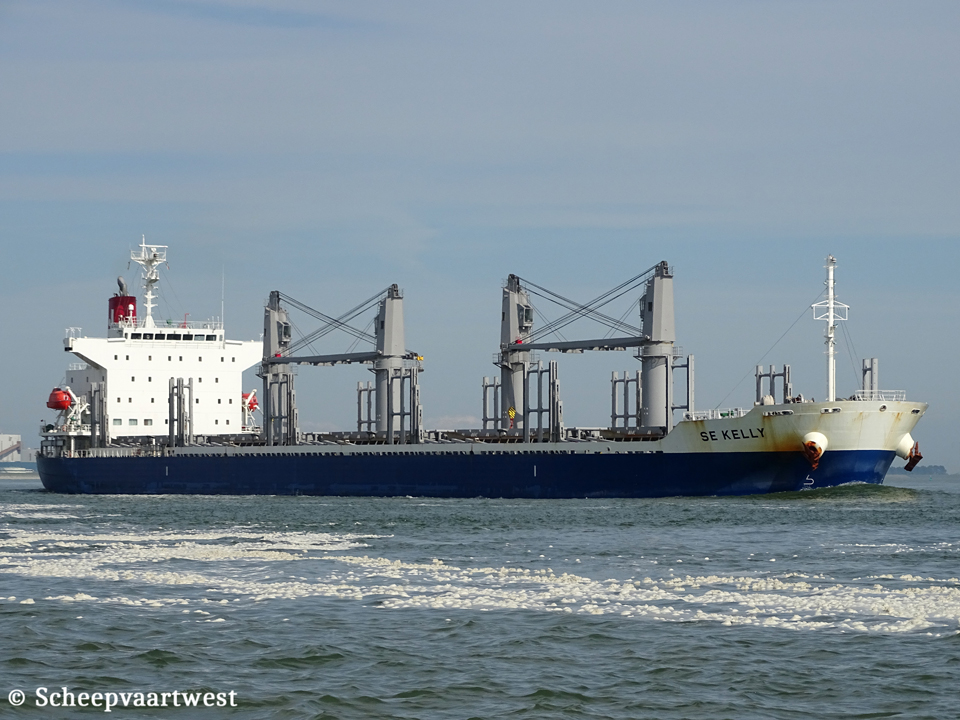

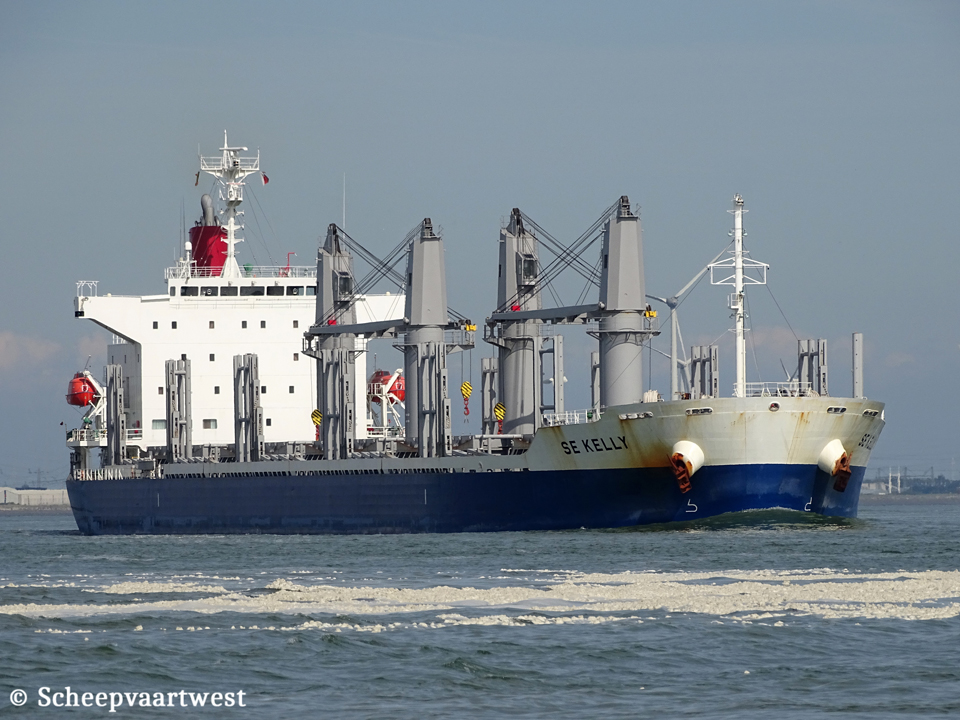

SE KELLY |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9820984 |
|
Call sign |
3FET5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
23.232 t |
|
DWT |
37.710 t |
|
NRT |
12.101 t |
|
Length |
179,97 m overall |
|
Breadth |
29,80 m moulded |
|
Draught |
Summer: 10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Keel to mast end |
44,46 m |
|
Freeboard |
Summer: 4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2018 |
|
Keel laid |
17/04/2015 |
|
Launch date |
22/11/2017 |
|
Date of completion |
11/01/2018 |
|
Builder |
Shimanami Shipyard Co., Ltd. |
|
Yard number |
S-H636 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S50ME-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 6.780 kW / 9.2318 hp at 108,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 1;94 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.715 kVA |
|
Number of holds |
5 |
|
Hold capacity |
Bale: 45.238,33 m³ Grain: 46.994,86 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.945,85 m³ Fresh water: 294,84 m³ |
|
ISM & commercial manager |
Sincere Industrial Corporation 15th Floor, 99, Dunhua S Road, Section 2, Da-an District, Taipei City, 10683, China Republic of (Taiwan) |
|
Registered owner |
SE Royal Corporation Care of Sincere Industrial Corporation 15th Floor, 99, Dunhua S Road, Section 2, Da-an District, Taipei City, 10683, China Republic of (Taiwan) |
|
Latest data adjustment |
20 September 2022 |
