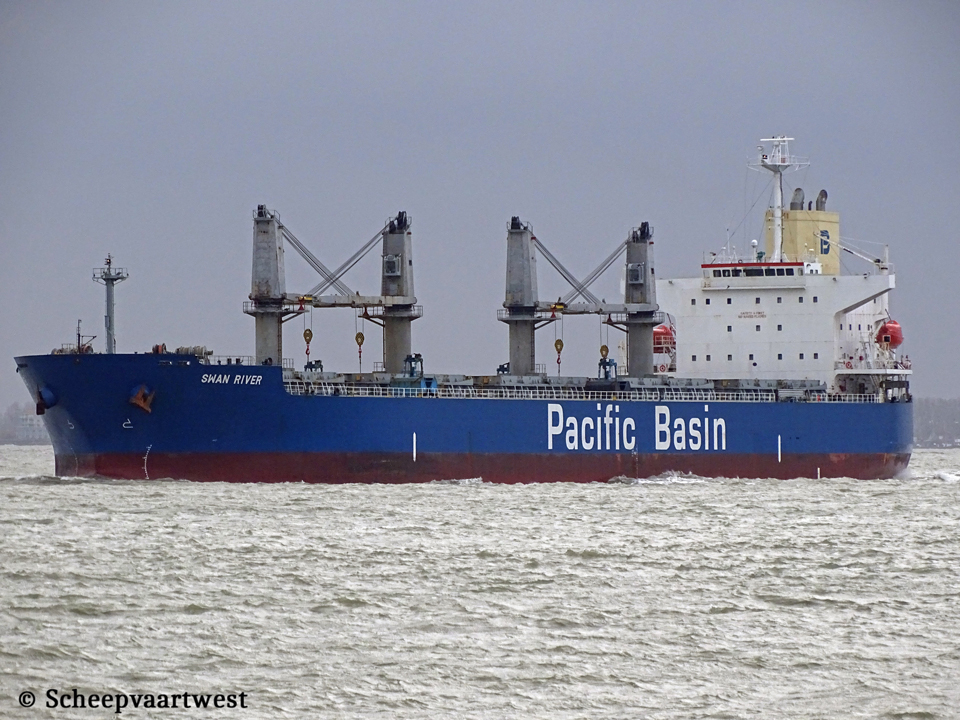

Swan River - IMO 9302841

Name

SWAN RIVER

Previous names

2005 - 05/2013 Triton Lark

Type

Geared / Grab fitted bulk carrier - Strengthened for heavy cargo loading

IMO-number

9302841

Call sign

VRMD2

Flag

Hong Kong - China

Port of registry

Hong Kong

Previous flags

2005 - 05/2013 Republic of Panama, Panama City - Call sign: 3EAX

GRT

31.275 t

DWT

56.025 t

NRT

18.504 t

Length

189,99 m overall

182,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

Summer: 12,58 m

Moulded L x B x D

182,00 x 32,26 x 17,90 m

Registered L x B x D

182,97 x 32,26 x 17,90 m

Keel to mast end

50,50 m

Freeboard

Summer: 5.370 mm

Depth

17,90 m moulded

Speed

Service: 14,5 knots

Max: 16,6 knots

Built

2005

Keel laid

16/12/2004

Launch date

03/03/2005

Date of completion

13/05/2005

Builder

Mitsui Engineering & Shipbuilding

Tamano

Japan

Yard number

1607

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm 9.480 kW / 12.889 hp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 470 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,69 MPa

Evaporation: 2,97 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generatorsets total 1.900 kVA

Number of holds

5

Cargo hold capacity

Bale: 68.044 m³

Grain: 70.811 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.510 m³

Fresh water: 428 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manager

Pacific Basin Shipping Limited

31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Registered owner

Swan River Ltd.

Care of Pacific Basin Shipping (HK) Ltd.

31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Latest data adjustment

23 August 2022
