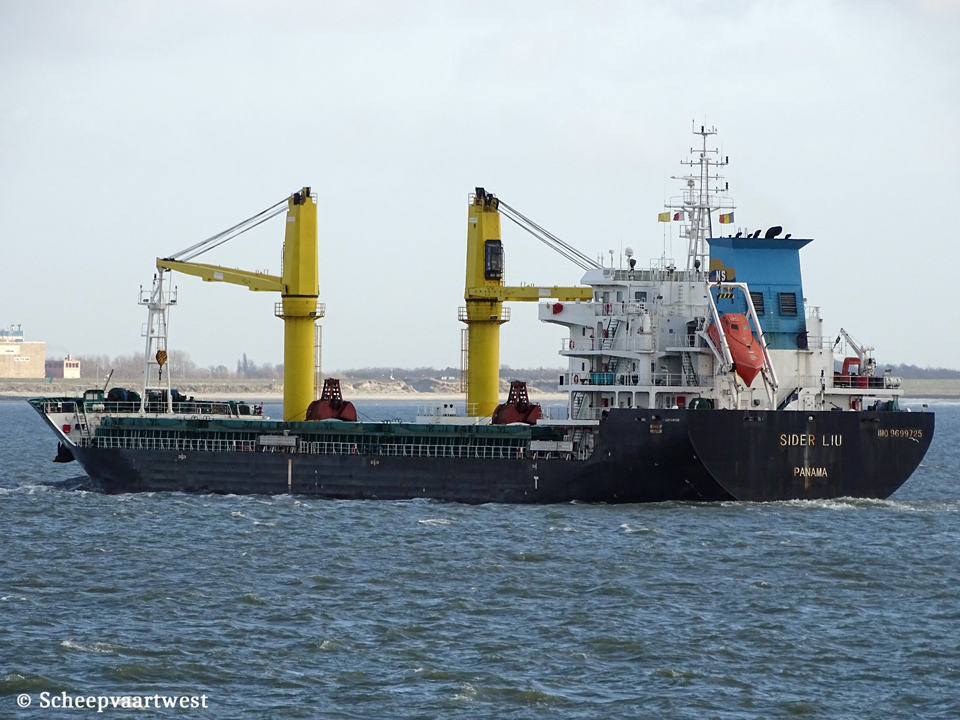

| Westerschelde 30 November 2018 |
|
Name |
SIDER LIU |
|
Type |
General cargo ship - heavycargo - Occasional dry bulk cargo |
|
IMO-number |
9699725 |
|
Call sign |
3FQV3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2015 - 2017 Malta, Valletta - Call sign: 9HA4219 |
|
GT |
9.989 t |
|
DWT |
14.689,86 t |
|
NT |
5.012 t |
|
Length |
138,90 m overall 131,37 m between perpendiculars |
|
Breadth |
21,00 m moulded |
|
Draught |
Summer: 8,60 m |
|
Keel to mast end |
38,40 m |
|
Freeboard |
2.815 mm |
|
Depth |
11,40 m |
|
Speed |
12,6 knots |
|
Built |
2015 |
|
Date of completion |
01/04/2015 |
|
Builder |
Ningbo Xinle Shipbuilding Group Co.,Ltd. China |
|
Yard number |
XL 153 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Daihatsu 6DKM-36 - 4 stroke 6 cylinder 360 x 480 mm combustion engine 3.309 kW / 4.496 hp at 600 rpm Build: 03/03/2011 Builder: Dahaitsu Diesel Mfg. Co. Ltd., Japan |
|
Propellers |
1x Screw propeller solid - aft at 150 rpm |
|
Boilers |
1x CHM - 12.00 m² / 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 500 kVA - 400 kW - 598 hp |
|
Number of holds |
3x Box type Hold 1: 27,00 x 17,50 x 13,35 m Hold 2: 34,50 x 17,50 x 13,55 m Hold 2: 30,00 x 17,50 x 17,00 m |
|
Cargo hold capacity |
Hold 1: 4.774,2 m³ Hold 2: 6.910,9 m³ Hold 3: 5.821,2 m³ Total: 17.506,2 m³ |
|
Number of hatches |
3 Hatch 1: 22,50 x 17,50 m Hatch 2: 27,75 x 17,50 m Hatch 3: 22,50 x 17,50 m |
|
Hatch type |
Folding type |
|
Tank capacities |
Fuel: 704,8 m³ |
|
Cargo gear |
2x Deck cranes - SWL 30,0 t each |
|
Commercial manager |
Navigest Trust Services route de Malagnou, 38A 1208 Geneva Switzerland |
|
ISM manager |
Nova Ship Tech SA Via Bagutti 5 6900 Lugano Switzerland |
|
Registered owner |
Joval Shipping SA Care of Navigest Trust Services & Ship Management SA route de Malagnou, 38A 1208 Geneva Switzerland |
|
Latest data adjustment |
14 July 2022 |
