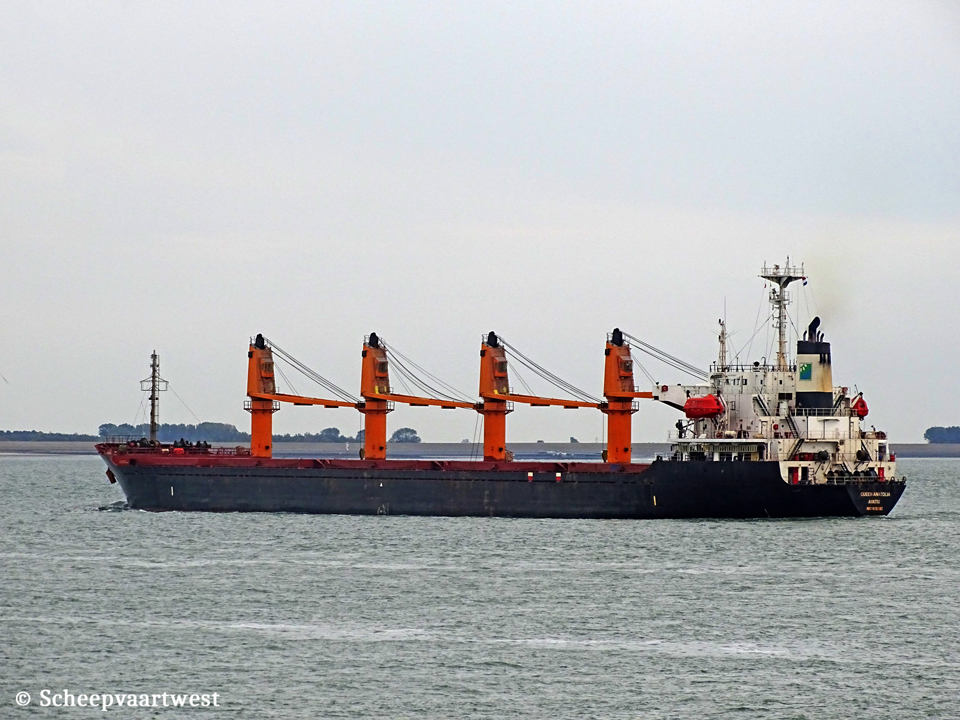

| Westerschelde 27 August 2020 |
|
Name |
QUEEN ANATOLIA |
|
Previous names |
1996 - 1997 Ansac 1997 - 2004 Ansac Ace 2004 - 2010 Queen Asia 2010 - 2017 Emanet |
|
Type |
Bulk carrier |
|
IMO-number |
9132662 |
|
Call sign |
E5U3401 |
|
Flag |
Cook Island |
|
Previous flags |
1996 - 2010 Republic of Panama, Panama City - Call sign: 3FTB5 2010 - 2015 Turkey - Call sign: TCYM4 2015 - 2018 Republic of Panama, Panama City - Call sign: 3EHD8 |
|
GT |
16.761 t |
|
DWT |
28.096 t |
|
NT |
10.452 t |
|
Length |
169,00 m overall |
|
Breadth |
27,20 m moulded |
|
Draught |
Summer: 9,76 m |
|
Moulded L x B x D |
160,40 x 27,20 x 13,60 m |
|
Registered L x B x D |
161,21 x 27,20 x 13,60 m |
|
Keel to mast end |
40,50 m |
|
Freeboard |
3.882 mm |
|
Depth |
13,60 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,1 knots |
|
Built |
1996 |
|
Keel laid |
01/08/1995 |
|
Launch date |
14/11/1995 |
|
Date of completion |
05/01/1996 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Japan |
|
Yard number |
519 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke 5 cylinder 520 x 1.600 mm combustion engine Mcr 5.884 kW at 133,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 670 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,79 MPa Evaporation: 1,97 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Generatorsets total 1.160 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 35.762 m³ Grain: 37.523 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.381 m³ Fresh water: 302 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
Navigators Shipping & Trading Apartmani Nuri Gurkan, Tarla Sokak 27/2, Feyzullah Mah, Maltepe Istanbul Turkey |
|
Owner |
GMD Denizcilik Company Turkey |
|
Previous names & owners |
1996 - 1997 Ansac - Diamond Arrow SA 1997 - 2004 Ansac Ace - Diamond Arrow SA 2004 - 2010 Queen Asia - Royal Yuyo Sg SA 2010 - 2017 Emanet - Ekoner Enerji Denizcilik |
|
Renamed |
2020 Lugano Cook Island - Call sign: E5U3401 Owner: Lugano Navigation Ltd. - Liberia Manager: Amathus Shipmanagement Ltd. - Greece |
|
Latest data adjustment |
12 July 2022 |
