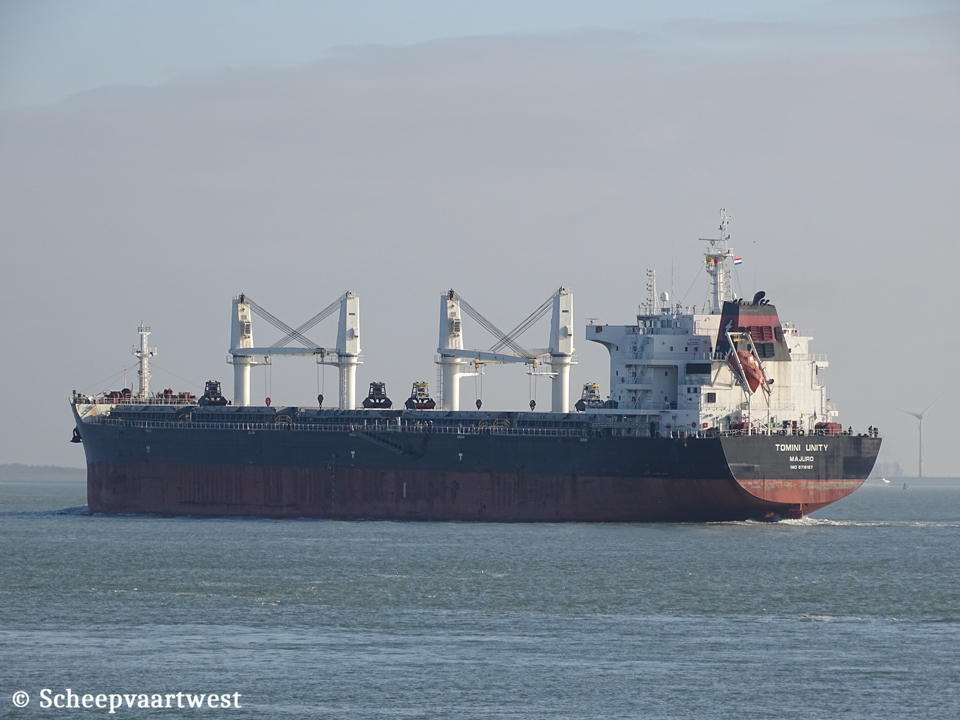

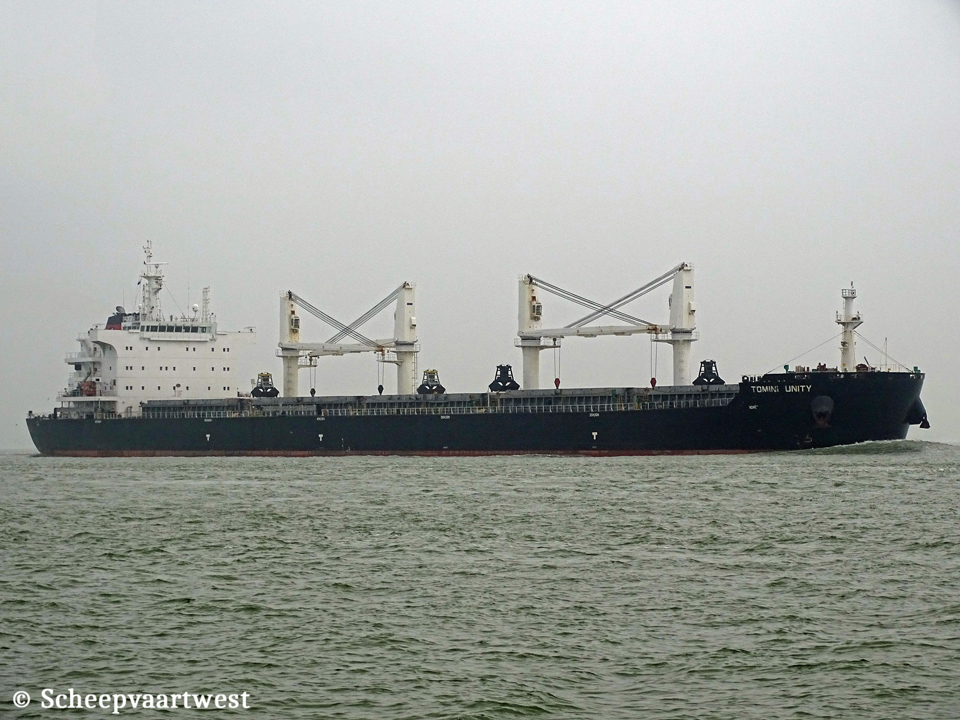

Tomini Unity IMO 9718167 01
Westerschelde 25 Janaury 2020



Name

TOMINI UNITY

Type

Geared grab fitted bulk carrier

IMO-number

9718167

Call sign

V7NZ6

Flag

Marshall Islands

Port of registry

Majuro

GT

36.415 t

Suez: 37.662,66 t

DWT

Summer: 63.590 t

Winter: 61.861 t

NT

21.573

Suez: 33.687,88 t

Panama: 30.213 t

Displacement

Summer: 75.226 t

Winter: 73.497 t

Light ship

11.636 t

Length

199,87 m overall

194,47 m between perpendiculars

Breadth

32,26 m moulded

32,32 m extreme

Draught

Summer: 13,30 m

Winter: 13,02 m

Keel to mast end

49,90 m

Depth

18,50 m moulded

Speed

Laden: 12,75 knots

Ballast: 13,25 knots

Built

2017

Keel laid

29/05/2015

Date of completion

17/01/2017

Builder

China shipping Industry Corporation

Jiangsu

China

Yard number

CIS64000-08

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W 5S60ME-C8 - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 8.050 kW / 10.945 hp at 89,0 rpm

Propellers

1x Fixed pitch propeller

Number of holds

5

Hold 1: 19,68 x 18,26 m

Hold 2-5: 22,96 x 1826 m

Cargo hold capacity

Grain / bale

Hold 1: 13.921,70 m³ / 13.200,00 m³

Hold 2: 17.660;70 m³ / 16.650,00 m³

Hold 3: 15.301,60 m³ / 14.080,00 m³

Hold 4: 15.815,10 m³ / 15.000,00 m³

Hold 5: 15.943,30 m³ / 14.750,00 m³

Grain: 78.642,40 m³ / 73.680,00 m³

Number of hatches

5

Max permitted loads

Tanktop:

Holds 2,4: 20,0 t/m²

Holds 1,3,5: 25,0 t/m²

Upper deck:

State deck: 3,5 t/m²

Hatch covers: 1,4 t/m²

Cargo gear

4x Deck cranes - SWL 30,0 t each at 28,00 m radius

Grabs: 4x Wireless radio remote controlled 12,0 m³ grabs

Commercial manager

Alpina Chartering Aps

Ramsherred 19

4700 Naestved

Denmark

ISM manager

Tomini Transports LLC

Tomini Building, 24th Street Al Asayel, Umm Suqeim Road, Al Barsha 2

Dubai

United Arab Emirates

Registered owner

Compass Shipping 42 Corporation Ltd.

Care of Alpina Chartering ApS

Ramsherred 19

4700 Naestved

Denmark

Latest data adjustment

19 June 2022
